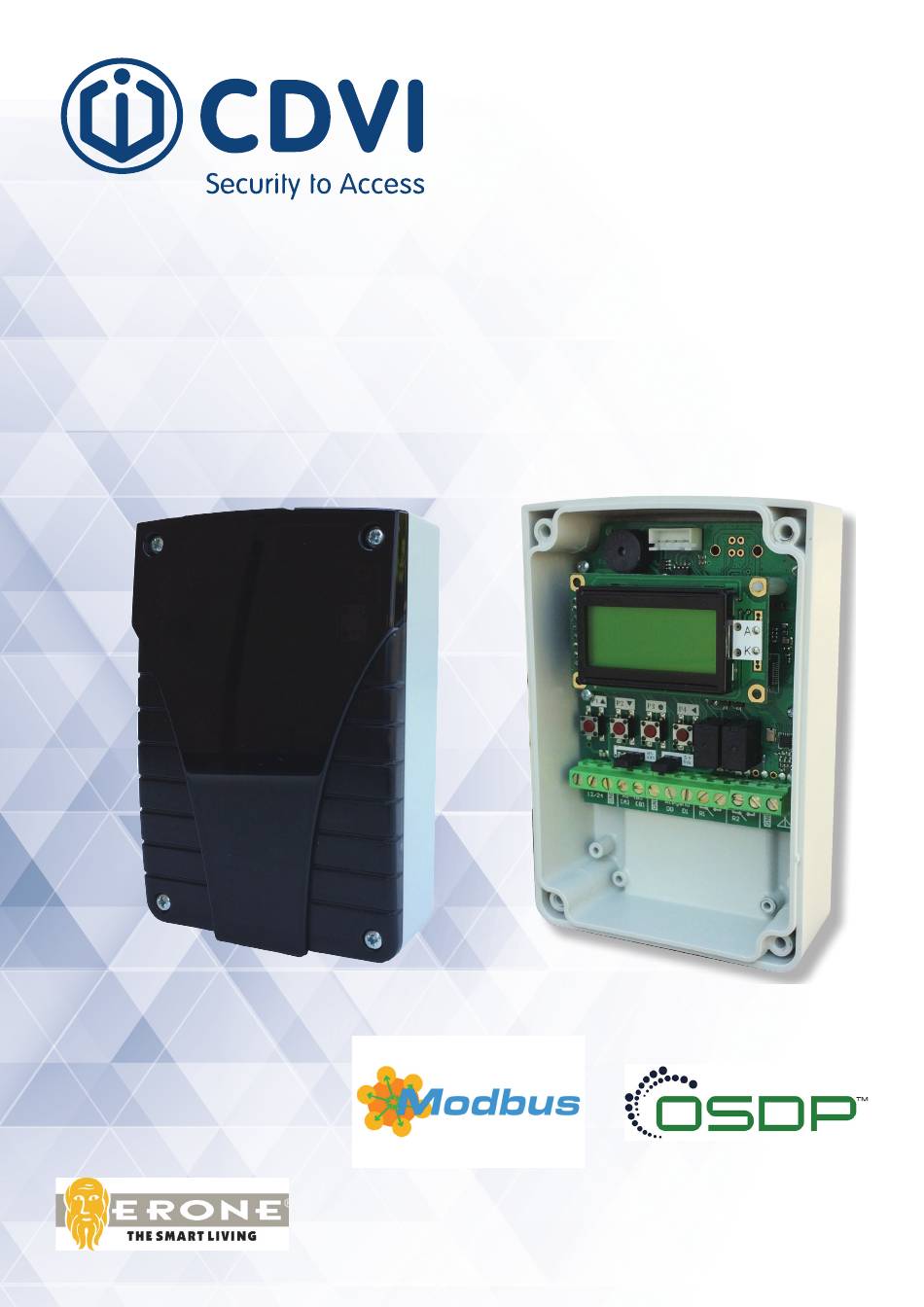

  • Page 1 SEL128R433-WPL Erone 128 Receiver...

  • Page 2: Technical Specifications

    F1001000094 Fig. 1 The type SEL128R433-WPL (Fig. 1) is a very high security superheterodyne receiver with GFSK demodulation. The high degree of security is ensured by a 128-bit serial number, with a AES128 encryption and by a proprietary “rolling code algorithm” that avoids the risk of the scan and the subsequent retransmission of the code copied.
  • Page 3 Receiver ERONE128 Mounting Drill the placing surface with ø6 tool and insert the 2 plugs X P L 1 2 8 E R O Then fix the support with the screws provided Option A ) make a hole ( ø11 mm ) on the bottom of the box and pass the cables throught X P L 12 8 E R O N E...

  • Page 4: Compatible Transmitters

    Receiver ERONE128 Layout ,Wiring & Display Legend Buzzer Connector for P3 : enter the menu backup memory ( 4 sec.) XPL 128 Backlit confirm the choice ERONE LCD Display P1, P2 : navi- Pull-UP Wiegand Pull-UP Wiegand gate the menu J2 ON = 9V J2 ON = 9V P1 P2 P3 P4...
  • Page 5 Receiver ERONE128 Warnings The receiver allocation is very important for the best operation of the system. Place the receiver far from interference sources such as big magnetic fields or radio emissions. The installation and the positioning of the antenna is very important as well. Before installing the antenna it’s advisable to make some tests on the site.
  • Page 6 Receiver ERONE128 Output Option Relay: the transmitters will activate the 2 relays Option Wiegand: data of the transmitter will be forwarded on the bus wiegand. Enter the submenu Config to set the wiegand format Option RS-485: data of the transmitter will be forwarded on the serial line RS-485.
  • Page 7 Receiver ERONE128 Output on RS-485 The line RS-485 can operate with 3 protocols: • ASCII • ModBUS-RTU • OSDP To enable the serial interface RS-485, select RS-485 in the option “OUTPUT” of the Main menu. The interface must be properly configured, setting the following parameters: •...

  • Page 8: Modbus Protocol

    Receiver ERONE128 ModBUS PROTOCOL The ModBUS protocol is a Master-Slave protocol based on a serial bus, where there is only one Master and multiple Slaves. Slave 247 Slave 1 Slave 2 RS-485 Master The protocol implemented follows the recommendations of the ModBUS Organization: visit the site www.modbus.org for more details.
  • Page 9 Receiver ERONE128 OSDP PROTOCOL ( from DRAFT Open Supervised Device Protocol (OSDP v. 2.1.6) ) Control Panel Peripheral device Peripheral device Peripheral device Peripheral device (CP) ( PD #1 ) ( PD #2 ) ( PD #3 ) ( PD #n ) Half-duplex RS-485 - one twisted pair, shield/signal ground Signalling Mode...
  • Page 10 Receiver ERONE128 WIRING THE RECEIVER TO ATRIUM A22K READER DOOR1 READER DOOR2 GND 12V BUZ GRN GND 12V BUZ GRN XPL 128 ERONE P1 P2 P3 P4 +12/24 Vac/dc +12/24 Vac/dc The receiver connection is identical to the K1 HIGH SECURITY CARD READER CONNECTING THE RECEIVER TO ATRIUM A22K Once wired to Atrium, the receiver agrees a communication password with the control panel AK22.
  • Page 11 The field “Vendor code” of the summary window for the Reader1, once connected to the receiver, displays the uni- que number CID of the manufacturer ( CDVI Wireless ). NOTE : In case of replacement of the receiver for any reason, delete the peripheral from the list of devices and con- nect the brand new: the syncrhronization will commence automatically and the serial number of the new receiver will be written on the corresponding field.

  • Page 12: Menu Delete

    Receiver ERONE128 Menu Add Push Button of TX Push Button of TX If you press button A, the sw will activate Relay 1 with button A and relay 2 with button B If you press button C, the sw will activate Relay 1 with button C and relay 2 with button D Push Button of the first TX of the block...

  • Page 13: Menu Config

    Receiver ERONE128 Menu Config It changes options according to the first choice : OUTPUT=RELAY or OUTPUT=WIEGAND. It allows to set the operating mode of the relays R1, R2, as Pulse, Step or Timed. In case of Timed it’s possible to set the delay time from 1 sec.

  • Page 14: Backup / Restore

    Receiver ERONE128 Backup / Restore Allows to create a backup of the memory data base and save Plug-in the memory in the it onto an external memory ( fig. 6). proper receiver connector The data-base saved or restored includes the configura- SEL128-MXPL tion settings.

  • Page 15: Output = Relay

    Receiver ERONE128 Info Info Out : Display the output Info N. Users : Display number of Tx memorized Info List : List of Transmitters Info Version : SW release. According to the first choice you can get the following information: OUTPUT = RELAY Rx = Mode Rx = Delay ( if delayed )
  • Page 16 [UNITED KINGDOM - IRELAND - SOUTH AFRICA] www.cdvi.co.uk CDVI WIRELESS www.erone.com w w w. e ro n e . co m Manufactured by : CDVI Wireless SPA Via Piave, 23 - 31020 S.Pietro di Feletto (TV) - Italy tel: +39-0438-450860 - mail: info@erone.com - web:www.erone.com...
