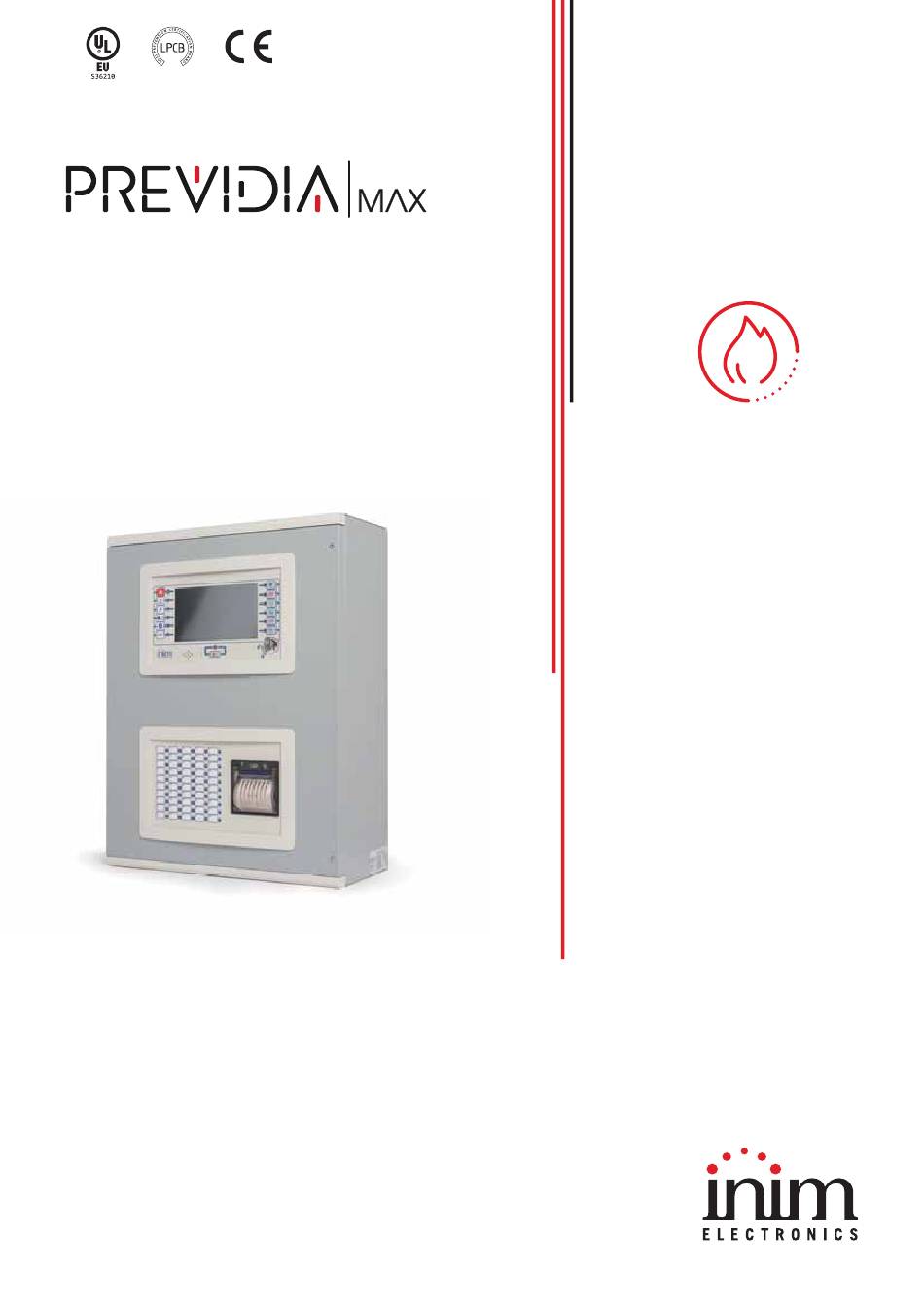

- Page 1 Configuration manual EN 54-2 EN 54-4 EN 54-21 EN 12094-1 cert. N.991K 0051 0051-CPR-1863 FIRE DETECTION AND EXTINGUISHANT SYSTEM MANUAL FOR SYSTEM CONFIGURATION, COMMISSIONING AND MAINTENANCE...
-
Page 2: Warranty
INIM Electronics s.r.l. (Seller, Our, Us) warrants the original purchaser that this product shall be free from defects in materials and workmanship under normal use for a period of 24 months. As INIM Electronics s.r.l. does not install this product directly, and due to the possibility that it may be used with other equipment not approved by Us; INIM Electronics s.r.l. -
Page 3: Table Of Contents
Configuration manual Table of contents Warranty.......................... 2 Limited warranty......................2 Copyright........................2 Table of contents ......................3 Chapter 1 General information ....................5 Manufacturer's details ........................5 About this manual ..........................5 Description of the configuration and programming procedures ........6 Operator classification - Access Levels ..................6 Chapter 2 Configuration ........................ - Page 4 Fire detection and extinguishant system Table of contents...
-
Page 5: Chapter 1 General Information
About this manual Manual code: DCMCINE0PREVIDIA Revision: 1.51 This manual describes the procedures for the configuration, commissioning and maintenance of the Previdia Max fire- detection system. 1.2.1 Terminology Control panel, System, Device: The main supervisory unit or any constituent part of the fire detection system. -
Page 6: Description Of The Configuration And Programming Procedures
Following is a flow chart which summarizes the operations to be carried out during the installation and commissioning phases of the Previdia Max system and indications regarding the manuals to refer to for each operation: Installation and cabling (refer to the Installation Manual) 2. -
Page 7: Chapter 2 Configuration
Chapter 2 Configuration Once the installation and cabling procedures have been completed (refer to the Installation Manual of the Previdia Max system) the system is ready for first startup. In the case of first start-up, the selection of the control panel languages is requested, a compulsory main lnaguage and an optional secondary language (see paragraph 2.10). -
Page 8: Access To Programming
Fire detection and extinguishant system Access to programming To access the programming phase of the Previdia Max control panel, it is necessary to work through the following procedure: Insert the programming jumper on the back of the FPMCPU module (see opposite, [D]). -
Page 9: Addressing Ifm And Fpm Modules
Configuration manual Internal layout of the selected cabinet N.01 FW:1.0.0. Internal module detected N.02 FW:1.0.0. Position empty Address and firmware revision of detected module Map of the entire control panel N.12 FW:1.0.0. Layout of the selected cabinet 01/01/2020 Buttons to carry out Access level:3 18:23 setting changes or to... -
Page 10: Setting The Hornet+ Network Address (Ifmnet)
Fire detection and extinguishant system Due to the fact that each FPMEXT front plate module is associated automatically with 5 internal IFMEXT modules at precise addresses, the FPMEXT modules must have an address which respects the IFMEXT - FPMEXT module association table which follows: Addressing the extinction module IFMEXT... -
Page 11: Enrolling Loop Devices (Ifm2L)
Configuration manual Attention: The “0” address is reserved to the main FPMCPU module. Do not use. Enrolling loop devices (IFM2L) The operations required for the configuration of the IFM2L network modules involve the configuration of the devices connected to the loops. The selection of the module from the internal layout section of the cabinet (paragraph 2.1 Access to programming, [A]) will access the configuration section which, in addition to providing the change address button (at the top) also provides two identical sections for each of the two loops (connected to the Loop-A and Loop-B terminals). - Page 12 Fire detection and extinguishant system Button to access the section for loop diagnosis. Diagnostics Button to access the section for the selection of the type of devices installed on the loop. It provides a check box for option selection “4 wires” (if the cabling has been completed as a ring Parameters circuit, as required by the fire control standards).
-
Page 13: Acquiring The Configuration
Eventual faults on these elements will be shown on the screen. In this case, it is necessary to remove the causes of the fault until you return to the stand-by screen that shows no fault messages (refer to the Previdia Max system installation manual). -
Page 14: Firmware Revision
2.12 Firmware revision The installer of Previdia Max system can see the firmware revision of each control panel module in order to facilitate any upgrade or configuration procedure. Such information can be achieved depending on the type of the module:... -
Page 15: Registration Of The Control Panel To Inim Cloud
Configuration manual 2.13 Registration of the control panel to Inim Cloud The registration of a control panel is an operation that allows its accessibility to all Inim Cloud service users. It is therefore necessary that the registration is carried out first by the installer, registered with the Inim Cloud service, so that later users can add the already registered control panel to their own account. -
Page 16: Chapter 3 Commissioning
Fire detection and extinguishant system Chapter 3 Commissioning The commissioning phase is a set of tests and inspections which are necessary to ensure the full efficiency and proper functioning of the system as specified in the system project. This phase is essential and must be performed in a scrupulous way in accordance the regulatory requirements of the country where the system is installed and in full respect of the recommendations in the following section. -
Page 17: Testing To Detectors And Manual Activations
Configuration manual Testing to detectors and manual activations All the installed detectors must be tested during the commissioning phase. It is necessary to check the capacity of each detector to react to a simulated condition of fire, and to check the precision of the signals transmitted to the control panel in response to its activation (description of the point and zone). -
Page 18: Chapter 4 Maintenance
Fire detection and extinguishant system Chapter 4 Maintenance For correct and efficient management of the system it is necessary to carry out periodic maintenance in accordance with the regulatory requirements of the country where the system is installed and in full respect of the recommendations contained in this section. - Page 19 Configuration manual...
- Page 20 Fire detection and extinguishant system ISO 9001 Quality Management certified by BSI with certificate number FM530352 Centobuchi, via Dei Lavoratori 10 63076 Monteprandone (AP) Italy Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz DCMCINE0PREVIDIA-151-20210128...
