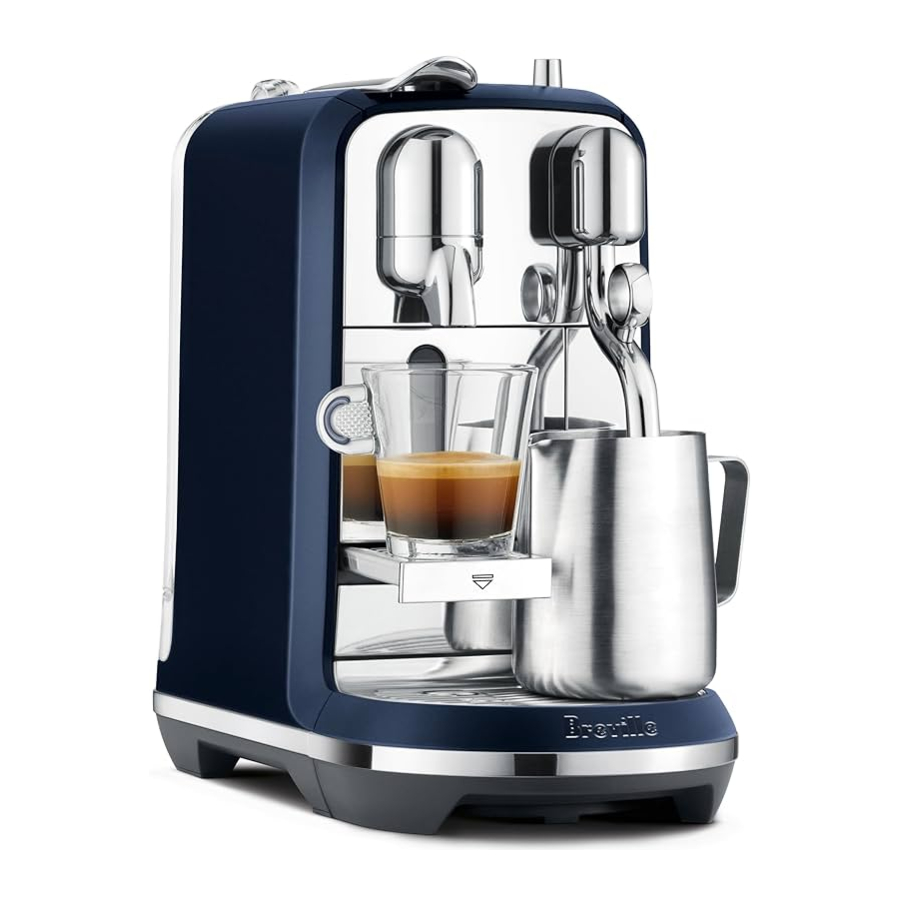

Nespresso Creatista Plus Manual

Creatista Plus

Nespresso is an exclusive system creating the perfect Espresso, time after time. Each parameter has been calculated with great precision to ensure that all the aromas from each capsule can be extracted, to give the coffee body and create an exceptionally thick and smooth crema.

Packaging Content

Machine Overview

First Use

Read the important safeguards to avoid risks of fatal electrical shock and fire.

1. Rinse the water tank before filling it with potable water.

2. Place the water tank, insert the drip tray and the capsule container in position. For your safety, operate the machine only with drip tray and capsule container in position.

3. Plug the machine the power outlet.

4. Turn the machine ON by pressing the START|CANCEL button. Heating up takes approximately 3 seconds.

5. Rotate the SELECT dial to set your language. Press SELECT to confirm.

6. Setting your water hardness, dip the Water Hardness Test Strip in and out the water tank. Wait 1 minute. Set the water hardness by rotating the SELECT dial according to the results on the Test Strip. Press SELECT to confirm. For further information refer to "Water Hardness".

7. Follow the on-screen prompts to rinse & prepare your machine for use.

   First use is to rinse the machine & prime the heating system.
8. Follow the Quick Start Tutorial.

9. To turn OFF your machine, press and hold the START/CANCEL dial for 2 seconds until machine is off.


Navigation

1. Rotate the SELECT dial to select your coffee.

2. Display shows current drink settings, Coffee Volume, Milk Temperature, Milk Texture.

3. Press START|CANCEL to make a coffee with the current settings.

4. Press the SELECT dial to adjust the current settings.


Regular Coffee Preparation

1. Fill the water tank with potable water.

2. Turn the machine ON by pressing the START|CANCEL button. Heating up takes approximately 3 seconds.

3. Place a cup under the coffee outlet. Use the cup support if required. PUSH the cup support to unlock.

4. Lift the Lever, insert a capsule and close the lever. Rotate SELECT dial to select your coffee


	Ristretto (25ml / 0.85 oz)
	Espresso (40 ml / 1.35 oz)
	Lungo (110 ml / 3.7 oz)

Press START|CANCEL button to extract

To ensure hygienic conditions, it is highly recommended to not reuse a used capsule.

5. Preparation will stop automatically. Lift the Lever to eject the capsule.

6. To stop the coffee flowthe START|CANCEL button.


Milk Coffee Preparation - Single Cup

Only use the milk jug provided.

TIP: For optimal milk froth, use pasteurized whole or semi skimmed milk at refrigerated temperature (about 4-6°C / 39-43°F ).

1. Fill the water tank with fresh potable water.

2. To accommodate smaller cups, use the cup support. PUSH the cup support to unlock.

3. Rotate the SELECT dial to select your drink.

4. Fill the milk jug with enough fresh cold milk. Minimum and maximum levels are marked on the inside and outside of the milk jug.


   Do not fill milk jug above the maximum level marked on the inside & outside of the jug.
5. Lift the steam wand & position in the centre of the milk jug.

6. Ensure the milk jug is making contact with the temperature sensor located in the drip tray.

7. Lift the Lever & insert your capsule.

8. Press the START|CANCEL button to start the espresso extraction.

9. When the espresso extraction is complete, press START|CANCEL to begin milk frothing.

10. When milk frothing complete, lift the steam wand, wipe with a clean damp cloth.

11. Allow steam wand to its down position & it will auto purge to rinse itself.

12. Pour milk into the espresso to finish your drink.


Milk Coffee Preparation - Two Cups

Only use the milk jug provided.

TIP: For optimal milk froth, use pasteurized whole or semi skimmed milk at refrigerated temperature (about 4-6°C / 39-43°F ).

1. Fill the water tank with fresh potable water.

2. To accommodate cups, use the cup support. PUSH the cup support to unlock.

3. Rotate the SELECT dial to select your drink.


4. Lift the Lever & insert your capsule.

5. Press the START|CANCEL button to start the espresso extraction.

6. Fill the milk jug with enough fresh cold milk for 2 drinks. Maximum level is marked on the inside and outside of the milk jug. Do not overfill.


   Do not fill milk jug above the maximum level marked on the inside & outside of the jug.
7. Lift the steam wand & position in the centre of the milk jug and press START|CANCEL to begin milk frothing.


8. Ensure the milk jug is making contact with the temperature sensor located in the drip tray.

9. When milk frothing is complete, lift the steam wand, wipe with a clean damp cloth.

10. Allow steam wand to return to its down position & it will auto purge to rinse itself.

11. Place your second cup under the coffee spout.

12. Lift the Lever & insert your capsule.

13. Press the START|CANCEL button to start the espresso extraction.

14. Pour milk into the espresso to finish your drinks.


Latte Macchiato Preparation

1. Fill the water tank with fresh potable water.

2. To accommodate a Latte Macchiato glass, push the cup support in until it locks.

3. Rotate the SELECT dial to select your drink.

4. Fill the milk jug to the marked maximum level with fresh cold milk


   Do not fill milk jug above the maximum level marked on the inside & outside of the jug.
5. Lift the steam wand position in the centre of the milk jug and press START|CANCEL to begin milk frothing.

6. Ensure the milk jug is making contact with the temperature sensor located in the drip tray.

7. When milk frothing complete, lift the steam wand, wipe with a clean damp cloth.

8. Allow steam wand to return to its down position & it will auto purge to rinse itself.

9. Pour milk into the Latte Macchiato glass and place under the coffee spout.

10. Lift the Lever & insert your capsule.

11. Press the START|CANCEL button to start the espresso extraction.


Adjusting Regular Coffee Drinks

1. Rotate the SELECT dial to the drink.

2. Press the SELECT dial to adjust the coffee volume.

3. Rotate the SELECT dial to adjust the coffee volume. The suggested volume is marked with a dotted line.

4. Press SELECT dial to save & exit or press START|CANCEL to exit without saving.


Any coffee can be programmed.

1. Ristretto: from 25 to 60 ml / 0.85-2 oz.
2. Espresso: from 25 to 60 ml / 0.85-2 oz.
3. Lungo: from 70 to 150 ml / 2.37 to 5 oz.

Default coffee volumes listed in "Regular Coffee Preparation".

Adjusting Milk Coffee Drinks

This machine is optimized for pasteurized whole or semi skimmed milk. Milk Temperature and Milk Froth may be adjusted to suit different milk types.

1. Rotate the SELECT dial to the drink & press the SELECT dial to adjust drink.

2. Rotate the SELECT dial to adjust, Espresso Volume, Milk Temperature or Milk Froth level.

3. Press the SELECT dial to enter & rotate to adjust the setting. Froth levels & Espresso Volumes suggested settings are marked with a dotted line.

4. Press SELECT dial to save & exit or press START|CANCEL to exit without saving.

5. Press START/CANCEL to exit the adjustments menu.


Any milk coffee can be programmed.

1. Coffee Volume: from 25 to 60 ml / 0.85-2 oz.
2. Milk Temperature: from 56 to 76°C / 133 to 169°F.
3. Milk Froth: from 2 to 30 mm / 0.08 to 1.2 in.

Reset to Factory Settings

Drink Settings are:

• Coffee Volume, Milk Temperature and Milk Froth.

To reset your drink settings:

1. Select SETTINGS
2. Select RESET
3. Select COFFEE RESET
4. Select to confirm
5. Select to cancel

To reset factory settings:

1. Select SETTINGS
2. Select RESET
3. Select FACTORY RESET
4. Select to confirm
5. Select to cancel
6. Machine will power off
7. On next use, you will need to refer to first use instructions

Emptying the System

before a period of non-use or for frost protection

1. Remove the water tank. Place the empty Milk Jug under the coffee outlet.

2. Rotate the SELECT dial to MAINTENANCE, press SELECT dial. Select "Empty Cycle" & press SELECT to start. When the pump stops, empty & wipe dry the capsule bucket & drip tray.


Energy Saving

Energy efficient:
Machine minimizes power use when not making a drink. The display dims after 2 mins of no use, after 10 mins of no use display turns off. Restart by pressing the START|CANCEL button.

Daily Cleaning

To ensure hygienic conditions, it is highly recommended emptying and cleaning the capsule container every day.

1. Empty the drip tray and the capsule container every day. Remove cup support by first removing the capsule bucket, then unlocking the cup support, pulling the cup support forward & lifting it upwards to disengage from the machine. Clean cup support and wipe inside machine, reassemble with a clean damp cloth. Remove the water tank and lid and clean them both with odorless detergent and rinse with warm water. Refill the water tank with fresh potable water.

2. Rinse the milk jug & dry after each use. If required, wash the jug with mild detergent.
3. Fill the milk jug with potable water between the min & max marks. Select the MILK function & press START. When complete discard the hot water, then wipe the steam wand with a clean damp cloth.

4. Do not use any strong or abrasive solvent, sponge or cream cleaner. Do not put in the dishwasher.

5. Dry all the parts with a repetitive soft clean cloth and reassemble all parts. Clean the coffee outlet and inside the machine regularly with a clean damp cloth.

6. Never immerse the appliance or part of it in water or any other liquid.


Steam Wand Cleaning Procedure

Milk System Cleaning Procedure. Recommended you perform this monthly to prevent steam tip blockages or when the display shows "Clean Steam Wand".

1. Select Maintenance

2. Select Clean Steam Wand

3. Follow the on-screen prompts


Descaling

Read the important safeguard on the descaling package and refer to the table for the frequency of use. The descaling solution can be harmful. Avoid contact with eyes, skin and surfaces. Never use any product other than the Nespresso descaling kit available at the Nespresso Club to avoid damage to your machine. The following table will indicate the descaling frequency required for the optimum performance of your machine, based on water hardness. For any additional questions you may have regarding descaling, please contact the Nespresso Club.

Descaling:
Removes scale build-up, maintains coffee taste and prevents machine damage. Frequency will depend on your water hardness & amount of use. Descale when prompted on-screen. The machine will stop you from use if the descale cycle has not been performed after 10 uses. A "lockout" count-down will appear to alert you of the number of uses remaining until usage will stop.

1. Rotate dial to select MAINTENANCE
2. Select DESCALE

3. Follow the on-screen prompts to complete


Water Hardness

To determine water hardness level use the test strip provided.
To change the water hardness setting:

1. Rotate dial to select SETTINGS

2. Select Water Hardness

3. Follow the on-screen prompts to complete


Water hardness:*				Descaling after:*
	App.	fH	dH	CaCO3	( 40 ml)
	Level / Niveau 0	< 5	< 3	< 50 mg/l	2 200
	Level / Niveau 1	> 7	> 4	> 70 mg/l	1 800
	Level / Niveau 2	> 13	> 7	> 130 mg/l	1 400
	Level / Niveau 3	> 25	> 14	> 250 mg/l	1 000
	Level / Niveau 4	> 38	> 21	> 380 mg/l	600

fH French degree
dH German Grade
CaCO3 Calcium Carbonate

Troubleshooting

Troubleshooting Milk Froth Preparation

Contact the Nespresso Club

As we may not have foreseen all uses of your appliance, should you need any additional information, in case of problems or simply to seek advice, call the Nespresso Club or your Nespresso authorized representative.
Contact details for your Nespresso Club or your Nespresso authorized representative can be found in the «Welcome to Nespresso» folder in your machine box or at nespresso.com

Limited Guarantee

Nespresso guarantees this product against defects in materials and workmanship for a period of 2 years.

Please visit our website at www.nespresso.com for contact details.

Safety Precautions

When you see this sign, please refer to the important safeguards to avoid possible harm and damage.

when you see this sign, please take note of the advice for the correct and safe usage of your coffee machine.

CAUTION	DISCONNECT DAMAGED SUPPLY CORD
ELECTRICAL DANGER	CAUTION HOT SURFACE

the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.

when you see this sign, please refer to the safety precautions to avoid possible harm and damage.

when you see this sign, please take note of the advice for the correct and safe usage of your appliance.

• The appliance is intended to prepare beverages according to these instructions.
• Do not use the appliance for anything other than its intended use.
• This appliance has been designed for indoor and non-extreme temperature conditions use only.
• Protect the appliance from direct sunlight effect, prolonged water splash and humidity.
• This is a household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
• This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and they are supervised by an adult.
• Keep the appliance and its cord out of reach of children under 8 years of age.
• This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the appliance safely and understand the dangers.
• Children shall not use the device as a toy.
• The manufacturer accepts no responsibility and the warranty will not apply for any commercial use, inappropriate handling or use of the appliance, any damage resulting from use for other purposes, faulty operation, non-professionals repair or failure to comply with the instructions.

Avoid risk of fatal electric shock and fire.

• In case of an emergency: immediately remove the plug from the power socket.
• Only plug the appliance into suitable, easily accessible, earthed mains connections. Make sure that the voltage of the power source is the same as that specified on the rating plate. The use of an incorrect connection voids the warranty.

The appliance must only be connected after installation.

• Do not pull the cord over sharp edges, clamp it or allow it to hang down.
• Keep the cord away from heat and damp.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons, in order to avoid all risks.
• If the cord or the plug are damaged, do not operate the appliance; return the appliance to the Nespresso Club or to a Nespresso authorised representative.
• If an extension cord is required, use only an earthed cord with a conductor cross-section of at least 1.5 mm² or matching input power.
• To avoid hazardous damage, never place the appliance on or beside hot surfaces such as radiators, stoves, ovens, gas burners, open flame, or similar.
• Always place it on a horizontal, stable and even surface. The surface must be resistant to heat and fluids, like water, coffee, descaler or similar liquids.
• Disconnect the appliance from the mains when not in use for a long period. Disconnect by pulling out the plug and not by pulling the cord itself or the cord may become damaged.
• Before cleaning and servicing, remove the plug from the mains socket and let the appliance cool down.
• Never touch the cord with wet hands.
• Never immerse the appliance or part of it in water or other liquid.
• Never put the appliance or part of it in a dishwasher.
• Electricity and water together is dangerous and can lead to fatal electrical shocks.
• Do not open the appliance. Hazardous voltage inside!
• Do not put anything into any openings. Doing so may cause fire or electrical shock!

Avoid possible harm when operating the appliance.

• Never leave the appliance unattended during operation.
• Do not use the appliance if it is damaged or not operating perfectly. Immediately remove the plug from the power socket. Contact the Nespresso Club or Nespresso authorised representative for examination, repair or adjustment.
• A damaged appliance can cause electrical shocks, burns and fire.
• Always completely close the slider and never open it during operation. Scalding may occur.
• Do not put fingers under coffee outlet, risk of scalding.
• Do not put fingers into capsule compartment or the capsule shaft. Danger of injury!
• Water could flow around a capsule when not perforated by the blades and damage the appliance.
• Never use a damaged or deformed capsule. If a capsule is blocked in the capsule compartment, turn the machine off and unplug it before any operation. Call theNespresso Club or Nespresso authorised representative.
• Fill the water tank only with fresh and potable water.
• Empty water tank if the appliance will not be used for an extended time (holidays, etc.).
• Replace water in water tank when the appliance is not operated for a weekend or a similar period of time.
• Do not use the appliance without the drip tray and drip grid to avoid spilling any liquid on surrounding surfaces.
• Do not use any strong cleaning agent or solvent cleaner. Use a damp cloth and mild cleaning agent to clean the surface of the appliance.
• To clean machine, use only clean cleaning tools.
• When unpacking the machine, remove the plastic film and dispose.
• This appliance is designed for Nespresso coffee capsules available exclusively through the Nespresso Club or your Nespresso authorised representative.
• All Nespresso appliances pass stringent controls. Reliability tests under practical conditions are performed randomly on selected units. This can show traces of any previous use.
• Nespresso reserves the right to change instructions without prior notice.
• This machine contains magnets.

Descaling

• Nespresso descaling agent, when used correctly, helps ensure the proper functioning of your machine over its lifetime and that your coffee experience is as perfect as the first day.

SAVE THESE INSTRUCTIONS
Pass them on to any subsequent user. This instruction manual is also available as a PDF at nespresso.com

Documents / Resources

References

• Coffee & Espresso capsules and machines | Nespresso
• Coffee & Espresso capsules and machines | Nespresso

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Nespresso Creatista Plus Manual
