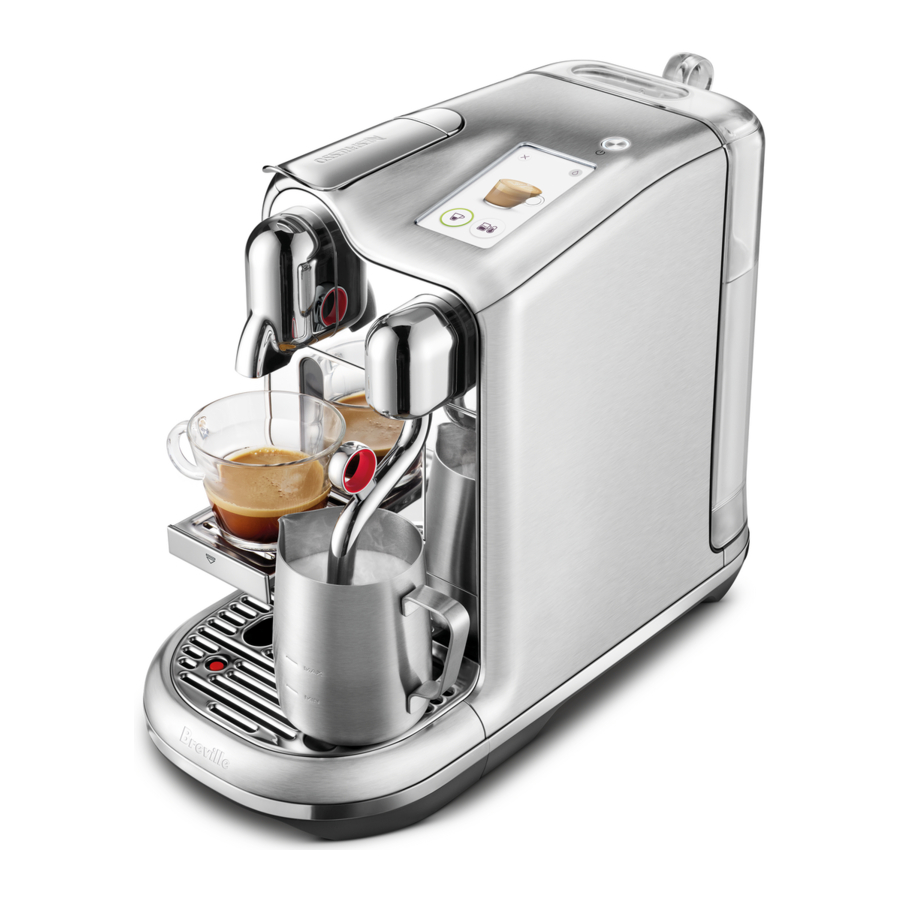

Nespresso CREATISTA PRO Manual

Packaging Content

1. Creatista Pro Coffee Machine

2. Tasting Box of Nespresso Capsules

3. Milk Jug

4. Nespresso Welcome Brochure

5. User Manual

6. 1 x Water Hardness Test Strip, in the User Manual


Machine Overview

First Use

Read and safely discard any packaging materials or promotional labels attached to your machine before use.

Read the important safeguards first to avoid risks of fatal electrical shock and fire.

1. Plug the machine into the power outlet.

2. Turn the machine ON by pressing the Power button.

3. Tap to select your language.

4. Follow on-screen instructions for machine set up. First use cycle is to rinse the machine and prime the heating system.

5. Follow the on-screen Quick Start Guide. Water Hardness can be manually set or the default can be used. The setting can be adjusted in the MENU.

6. To turn OFF your machine, press the Power button. Any drink recipe can be interrupted by turning the machine off.


Drinks MENU & Selection

Drink Adjustments

1. Slide circle up and down the bar to adjust. Notch on the bar is the drink default setting.
2. Tap to save your custom drink settings. Custom drink will appear in Drinks MENU.

Making a Milk Coffee

Coffee extraction and milk texturing will start simultaneously.
Coffee and milk will stop running automatically.
Alternatively, tap the icon to stop.

Icons
Next	Back
Close	Skip
Update Save	Menu
Information	Save
Delete

Making a Regular Coffee

Coffee will stop running automatically.
Alternatively, tap the icon to stop.

Coffee Preparation Tips

To ensure hygienic conditions, it is highly recommended not to reuse a used capsule.

For optimal milk froth, use whole or semi skimmed UHT or pasteurized milk at refrigerated temperature (about 4-6°C /39-43°F).

For smaller cups, use the cup support.

Only use the milk jug provided for texturing milk.

Always ensure the milk jug is positioned on the drip tray temperature sensor when texturing milk.

Do not fill milk jug above the maximum level marked on the inside & outside of the jug.

Adjusting Regular / Milk Coffee Drinks

Regular Coffee	Coffee Volume	Milk Coffee	Settings
Ristretto	From 10 to 30 ml / 0.35 - 1 fl. oz	Coffee Volume	7 levels from 15 to 130 ml / 0.5 - 4.4 fl. oz
Espresso	From 30 to 70 ml / 1 - 2.3 fl. oz	Hot Water Volume	7 levels from 50 to 200 ml / 1.7 - 6.8 fl.oz
Lungo	From 70 to 130 ml / 2.3 - 4.4 fl. oz	Milk Temperature	11 levels from 50° to 76°C / 122° to 169°F
Milk Levels
Flat White	Café Latte	Cappuccino	Latte Macchiato
Min	Min	Min	Max

Daily Cleaning

Do not use any strong or abrasive solvent, sponges or cream cleaners when cleaning. Do not put any parts in the dishwasher.

Never immerse the appliance or any part of it in water or any other liquid.

1. Select Clean Steam Wand from the MENU and follow the on-screen steps.

2. Empty the drip tray and capsule container every day. Remove and clean the cup support and wipe inside the machine. Remove and clean the water tank with an odourless detergent and rinse with warm water.

3. Rinse and dry the milk jug after each use. If required, use a mild detergent.

4. Dry all parts with a soft clean cloth and reassemble machine. Wipe coffee outlet and machine regularly with a clean damp cloth.


Menu

Tap to select and follow the on-screen instructions.

	Clean Steam Wand Complete daily to clean steam paths, steam wand and prevent blockages.
	Rinse Steam Wand Use as required to clear any blockages that may occur in the steam wand.
	Descale Remove any scale build-up. Refer to Descale instructions on following page.
	Water Hardness Reset the water hardness level.
	Rinse Cycle When machine hasn't been used for an extended period of time.
	Empty Cycle When storing machine for a period of non-use or for frost protection.
	Quick Start Guide See the Quick Start guide again.
	Language Change the language of the machine.
	Factory Reset Erases all settings and returns unit to factory settings.

Descaling

Duration approximately 15 minutes.

Read the important safeguard on the descaling package and refer to the table for the frequency of use. The descaling solution can be harmful. Avoid contact with eyes, skin and surfaces. Never use any product other than the Nespresso descaling kit available at Nespresso to avoid damage to your machine. The following table will indicate the descaling frequency required for the optimum performance of your machine, based on water hardness. For any additional questions you may have regarding descaling, please contact Nespresso.

Navigate to the MENU
and select Descale. Follow the on-screen instructions

Water Hardness Levels

Water hardness					Descaling after
	App.		fH	dH	CaCO3	(40 ml)
	Level	0	< 5	< 3	< 50 mg/l	2 200
	Level	1	> 7	> 4	> 70 mg/l	1 600
	Level	2	> 13	> 7	> 130 mg/l	1 100
	Level	3	> 25	> 14	> 250 mg/l	800
	Level	4	> 38	> 21	> 380 mg/l	600

fH French degree
dH German Grade
CaCO₃ Calcium Carbonate

Troubleshooting

Troubleshooting Milk Froth Preparation

SAFETY PRECAUTIONS

the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.

when you see this sign, please refer to the safety precautions to avoid possible harm and damage.

INFORMATION: when you see this sign, please take note of the advice for the correct and safe usage of your appliance.

When you see this sign, follow the instructions to avoid electrical risks that could result in injury. If the cord is damaged, do not operate the appliance.

The appliance is intended to prepare beverages according to these instructions.

• Do not use the appliance for anything other than its intended use.
• Do not operate the appliance if it is in an enclosed space, or within a cupboard.
• This appliance has been designed for indoor and non-extreme temperature conditions use only.
• Protect the appliance from direct sunlight effect, prolonged water splash and humidity.
• This is a household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
• This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and they are supervised by an adult.
• Keep the appliance and its cord out of reach of children under 8 years of age.
• This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the appliance safely and understand the dangers.
• Children shall not use the device as a toy.
• The manufacturer accepts no responsibility and the warranty will not apply for any commercial use, in appropriate handling or use of the appliance, any damage resulting from use for other purposes, faulty operation, non-professionals repair or failure to comply with the instructions.

Avoid risk of fatal electric shock and fire.

• In case of an emergency: immediately remove the plug from the power socket.
• Only plug the appliance into suitable, easily accessible, earthed mains connections. Make sure that the voltage of the power source is the same as that specified on the rating plate. The use of an incorrect connection voids the warranty.

The appliance must only be connected after installation.

• Do not pull the cord over sharp edges, clamp it or allow it to hang down.
• Keep the cord away from heat and damp.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons, in order to avoid all risks.
• If the cord is damaged, do not operate the appliance; return the appliance to Nespresso or to a Nespresso authorised representative.
• If an extension cord is required, use only an earthed cord with a conductor cross-section of at least 1.5 mm 2 or matching input power.
• To avoid hazardous damage, never place the appliance on or beside hot surfaces such as radiators, stoves, ovens, gas burners, open flame, or similar.
• Always place it on a horizontal, stable and even surface. The surface must be resistant to heat and fluids, like water, coffee, descaler or similar liquids.
• Disconnect the appliance from the mains when not in use for a long period. Disconnect by pulling out the plug and not by pulling the cord itself or the cord may become damaged.
• Before cleaning and servicing, remove the plug from the mains socket and let the appliance cool down.
• Never touch the cord with wet hands
• Never immerse the appliance or part of it in water or other liquid.
• Never put the appliance or part of it in a dishwasher.
•
  Electricity and water together is dangerous and can lead to fatal electrical shocks.
•
  Do not open the appliance. Hazardous voltage inside!
•
  Do not put anything into any openings. Doing so may cause fire or electrical shock!

Avoid possible harm when operating the appliance.

• If coffee volumes are programmed higher than 150ml (5 oz); allow the machine cool down for 5 minutes before making next coffee to prevent risk of overheating!
• Never leave the appliance unattended during operation.
• Do not use the appliance if it is damaged or not operating perfectly. Immediately remove the plug from the power socket. Contact Nespresso or Nespresso authorised representative for examination, repair or adjustment
•
  A damaged appliance can cause electrical shocks, burns and fire.
•
  Always completely close the handle and never open it during operation. Scalding may occur.
•
  Do not put fingers under coffee outlet, risk of scalding.
• Do not put fingers into capsule compartment or the capsule shaft. Danger of injury!
•
  Do not touch the capsule compartment just after brewing due to risk of scalding. Water could flow around a capsule when not perforated by the blades and damage the appliance.
• Never use a damaged or deformed capsule. If a capsule is blocked in the capsule compartment, turn the machine off and unplug it before any operation. Call Nespresso or Nespresso authorised representative.
• Misuse may result in injury.
• Fill the water tank only with fresh and potable water.
• Empty water tank if the appliance will not be used for an extended time (holidays, etc.).
• Replace water in water tank when the appliance is not operated for a weekend or a similar period of time.
• Do not use the appliance without the drip tray and drip grid to avoid spilling any liquid on surrounding surfaces.
• Do not use any strong cleaning agent or solvent cleaner. Use a damp cloth and mild cleaning agent to clean the surface of the appliance.
• To clean machine, use only clean cleaning tools.
• Do not use abrasive material that might damage the surface of the equipment.
• When unpacking the machine, remove the plastic film and dispose.
• This appliance is designed for Nespresso coffee capsules available exclusively through Nespresso or your Nespresso authorised representative.
• This equipment is specific for cow milk, not to use with other products/alternative milk (soya milk, oatmilk, almond milk), therefore it is not fit for lactose intolerants or milk allergics.
• All Nespresso appliances pass stringent controls. Reliability tests under practical conditions are performed randomly on selected units. This can show traces of any previous use.
• Nespresso reserves the right to change instructions without prior notice.
• This machine contains magnets.

Descaling

• Nespresso descaling agent, when used correctly, helps ensure the proper functioning of your machine over its lifetime and that your coffee experience is as perfect as the first day.

SAVE THESE INSTRUCTIONS
Pass them on to any subsequent user.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Nespresso CREATISTA PRO Manual
