Nespresso Lattissima+ Manual

Introduction

NESPRESSO, an exclusive system creating the perfect espresso, time after time.
All Nespresso machines are equipped with a unique extraction system that guarantees up to 19 bar pressure. Each parameter has been calculated with great precision to ensure that all the aromas from each Grand Cru can be extracted, to give the coffee body and create an exceptionally thick and smooth crema.

When you see this sign, please refer to the safety precautions to avoid possible harm and damage.
Information - When you see this sign, please take note of the advice for the correct and safe usage of your coffee machine.

Packaging content

OVERVIEW

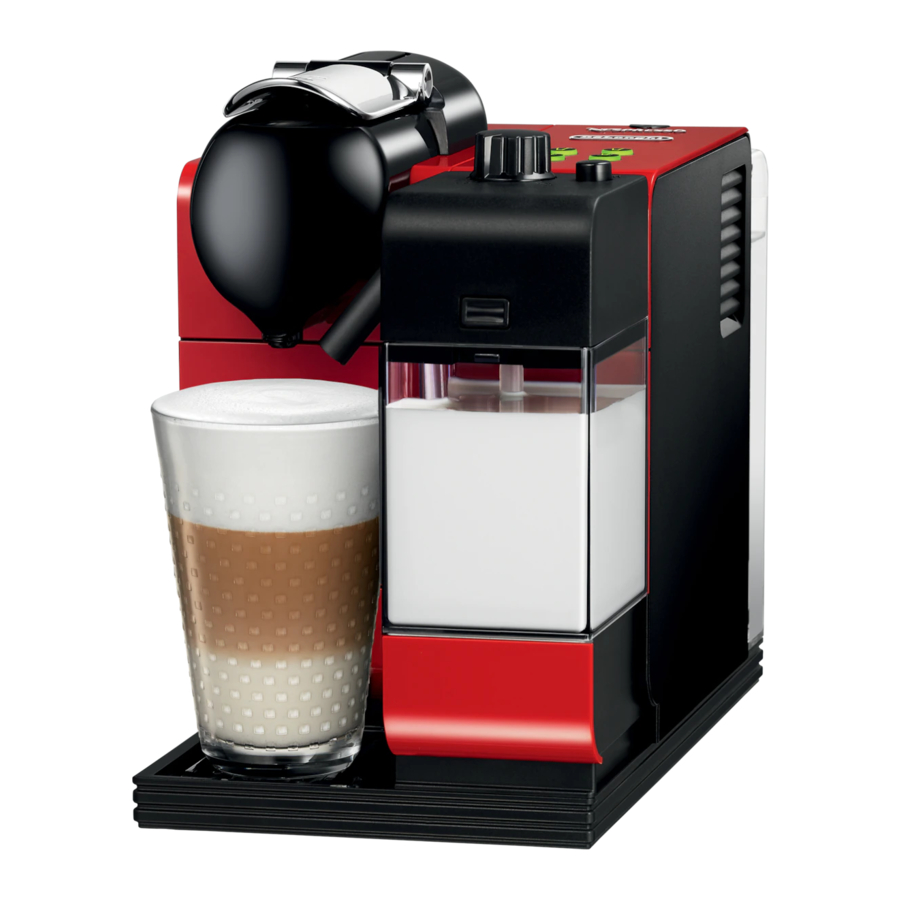

1. Machine without the Rapid Cappuccino System
2. Machine with the Rapid Cappuccino System (for Cappuccino)
3. Machine with the Rapid Cappuccino System (for Latte Macchiato)

Backlight Buttons

13. Cappuccino
14. Latte Macchiato

Rapid Cappuccino System (R.C.S.)

17. Milk container (0.35 l)
18. Milk container Lid
19. Lid detach button

20. Rinsing button
21. Milk Froth regulator knob
22. Min. froth

Backlight Buttons indication

	Energy saving settings. When the machine is switched on, buttons light for 2sec: Lungo= power off after 9 min Espresso= power off after 30 min Both Lungo+Espresso = power off after 8 h		Coffee and milk recipe modes are ready
	Water hardness settings. When the machine is switched on, buttons light for 2sec: Latte Macchiato= Soft water hardness Cappuccino= Medium water hardness Latte Macchiato+Cappuccino= Hard water hardness		Descaling alert.
	Coffee mode is ready

FIRST USE OR AFTER A LONG PERIOD OF NON-USE

First read the safety precautions to avoid risks of fatal electrical shock and fire

ASSEMBLING / DISASSEMBLING OF THE RAPID CAPPUCCINO SYSTEM (R.C.S)

PREPARING A CAPPUCCINO AND LATTE MACCHIATO

Refer to safety precautions
For perfect milk froth, use skimmed or semi-skimmed milk at refrigerator temperature (about 4°C)

PROGRAMMING CAPPUCCINO/LATTE MACCHIATO VOLUME

Refer to safety precautions
Follow the steps 1-5 of section "Preparing a Cappuccino and Latte Macchiato"
Milk: min 30 ml/max 200 ml. Coffee: min 25 ml/max 300 ml

1. Press and hold the Cappuccino or Latte Macchiato button. Milk frothing starts. Button blinks quickly: programming mode.

2. Release the button when your desired volume of milk froth is reached. Button blinks quickly: programming mode.

3. Press and hold the same button. Brewing starts. Release the button when your desired coffee volume is reached. The recipe volume is now stored for future preparations. Button blinks 3 times: confirm the new recipe volume. Eject the capsule and press the clean button.


DAILY CLEANING

Do not use any strong cleaning agent or solvent cleaner. Use a damp cloth and mild cleaning agent to clean the surface of the machine. Do not put in a dishwasher.

1. Remove the drip tray, capsule container and water tank. Empty and rinse. Both left and right grid can be removed for easy cleaning. Clean the coffee outlet regularly with a damp cloth.


CARE OF RAPID CAPPUCCINO SYSTEM (R.C.S.) TWICE A WEEK

Disassemble the Rapid Cappuccino System. Refer to section "Assembling/ Disassembling of Rapid Cappuccino System (R.C.S)".

1. Clean all components in the upper level of a dishwasher at least twice a week.


EMPTYING THE SYSTEM BEFORE A PERIOD OF NON - USE, FOR FROST PROTECTION OR BEFORE A REPAIR

ENERGY SAVING CONCEPT

This machine has an excellent energy consumption profile as well as an automatic power off function (0W) which enables you to save energy. The appliance switches off 9 minutes after the last use.

1. Switch the machine off.


1. Activation power off after 9min (factory setting)
   Press and hold the Lungo button and switch the machine on.

2. Activation power off mode after 30min
   Press and hold the Espresso button and switch the machine on.

3. Activation power off mode after 8h
   Press and hold both the Lungo and Espresso button and switch machine on.


DESCALING

Refer to safety precautions

WATER HARDNESS SETTING

1. Switch the machine off.


Press and hold the indicated buttons and switch the machine on.

Soft water hardness	Medium water hardness	Hard water hardness
< 10° dH	10° dH – 20° dH	>20° dH
< 18° fH	18° fH – 36° fH	>36° fH
< 180 mg/l CaCO 3	180–360 mg/l CaCO 3	360 mg/l CaCO 3

Programmed buttons blink 3 times: water hardness is set.

RESTORING VOLUMES TO FACTORY SETTINGS

* The volume of milk froth depends on the kind of milk that is used and its temperature.

TROUBLESHOOTING

SPECIFICATIONS

	220–240 V, 50/60 Hz, 1400 W
	19 bar
	~ 4.5 kg
	0.9 l
	0.35 l
	16.7 cm 25.3 cm 31.9 cm

CONTACT THE NESPRESSO CLUB

For any additional information, in case of problems or simply to seek advise, call the Nespresso Club. Contact details of the Nespresso Club can be found in the 'Welcome to Nespresso' folder in your machine box or at nespresso.com.

SAFETY PRECAUTIONS

Avoid risks of fatal electric shock and fire

1. Only plug the appliance into suitable, earthed mains connections. Make sure that the voltage of the power source is the same as that specified on the rating plate. The use of an incorrect connection voids warranty.
2. If an extension lead is required, use only an earthed cable with a conductor cross-section of at least 1.5 mm².
3. D o not pull the cable over sharp edges. Clamp it or allow it to hang down. Keep the cable away from heat and damp.
4. If the cable is damaged, do not operate the appliance. Return appliance to the manufacturer's service, theNespresso Club or similarly qualified persons for repair.
5. T o avoid hazardous damage, never place the appliance on or beside hot surfaces such as radiators, cooking rings, gas burners, open flames, or similar.
6. A lways place it on a stable and even surface. The surface must be resistant to heat and fluids, like water, coffee, descaler, or similar.
7. Disconnect the appliance from the mains when not in use for a long period.
8. Disconnect by pulling out the plug and not pulling the cable itself or the cable may be damaged. Never touch the cable with wet hands.
9. N ever immerse the appliance or part of it in water. Never put the appliance or part of it into a dishwasher, except the Rapid Cappuccino System (R.C.S.). Electricity and water together is dangerous and can lead to deadly electrical shocks.
10. Do not open the appliance. Hazardous voltage inside!
11. Do not put anything into openings. Doing so may cause fire or electrical shock!

Avoid possible harm when operating the appliance

12. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the warranty will not apply.
13. This is a household appliance only. It is not intended to be used in:
    • staff kitchen areas in shops, offices and other working environments;
    • farm houses;
    • by clients in hotels, motels and other residential type environments;
      • bed and breakfast type environments;
      • planes, boats, trains and automobiles.
14. Do not use the appliance if it is damaged or not operating perfectly. Immediately remove the plug from the power socket. Call the Nespresso Club for a diagnosis. A damaged appliance can cause electrical shocks, burns and fire.
15. T he appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
16. Always close the lever and never lift it during or immediately after operation. Risk of scalding! Do not put fingers into the capsule compartment or the capsule shaft. Danger of injury!
17. Do not put fingers under the coffee outlet or milk spout. Risk of scalding!
18. Never use a damaged or deformed capsule. Water could flow around the capsule when not perforated by the blades and damage appliance.
19. Do not use the appliance without drip tray and drip grid to avoid spilling any liquid on surrounding surfaces.
20. A lways use the milk container (Rapid Cappuccino System) supplied with the machine. Risk of scalding if milk container is not inserted properly.
21. The milk spout gets hot. Risk of burns! Use with care.
22. If coffee volumes higher than 150 ml are programmed: Let the machine cool down for 5 minutes before making the next coffee. Risk of overheating!
23. Do not use any strong cleaning agent or solvent cleaner. Use a damp cloth and mild cleaning agent to clean the surface of the machine.
24. Descale the machine when you see the descaling alert. Read the safety precautions on the descaling package carefully. The descaling solution can be harmful. Avoid contact with eyes, skin and surfaces. We recommend theNespresso descaling kit available from the Nespresso Club as it is specifically adapted to your machine. Do not use other products (such as vinegar) that would affect the taste of the coffee. For any additional questions you may have regarding descaling, please contact the Nespresso Club
25. This machine works withNespresso capsules available exclusively through the Nespresso Club. Your Nespresso machine's proper functioning and lifetime are only guaranteed with the usage of Nespresso capsules.

SAVE THESE INSTRUCTIONS
Pass them on to any subsequent user
