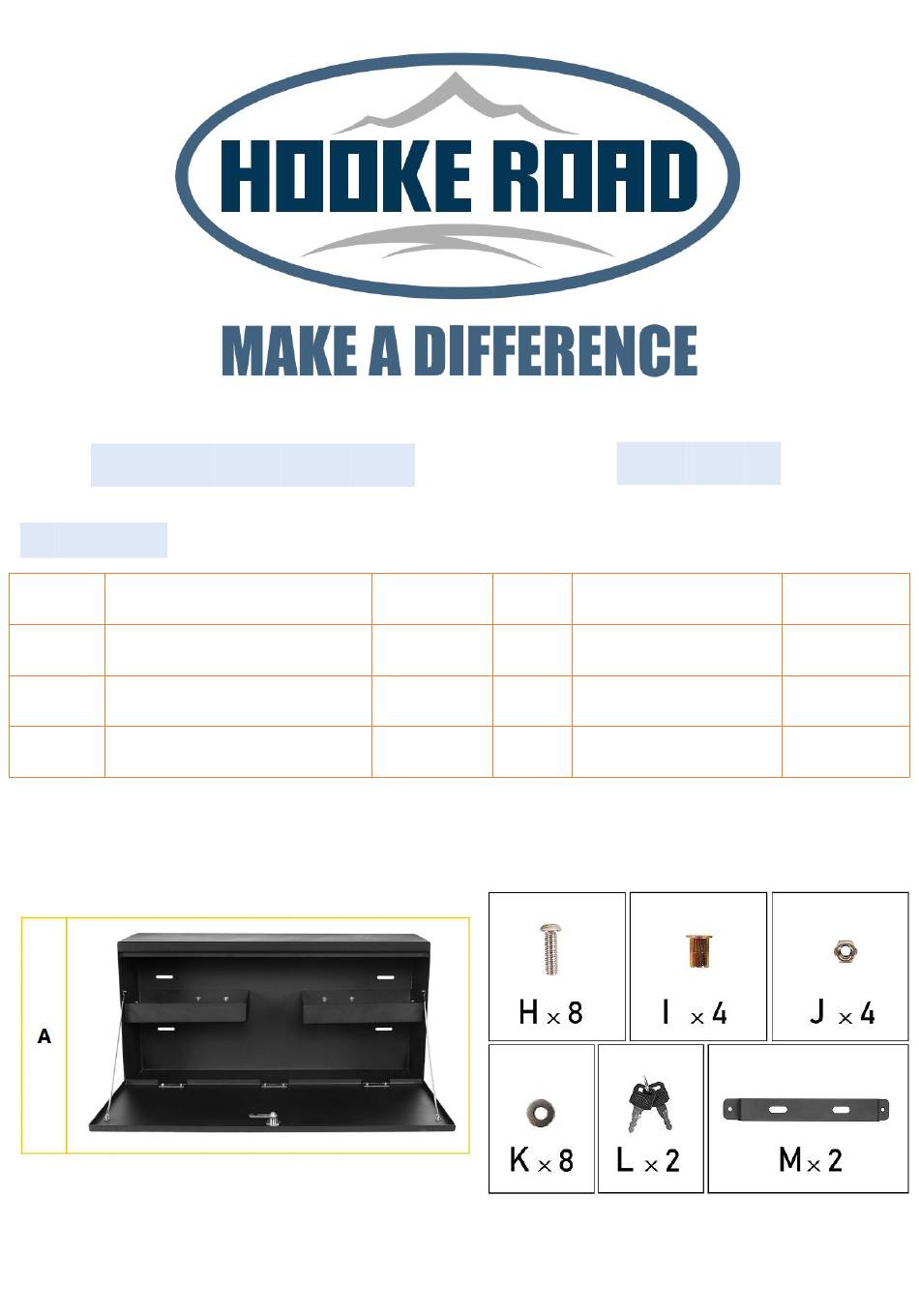

- Page 1 MMR.10028 Steering Box Skid Pate (1) Contents: Part Name Size(mm) Part Name Size(mm) Steering Shaft Riser Bracket J×4 Nylon Insert Locknut H×8 Button Head Socket Cap Screw M6×20 K×8 Flat Washer M6×16×1.5 I×4 Rivet Nut...
- Page 2 About 1 hour, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (MMR.10028), please scan the QR code.
- Page 3 (4) Installation instruction: Step 1: Remove the tailgate of the original vehicle. Step 2: Unpack the product, take out the positioning paper from the package, place the positioning paper about 11.8 cm from the leftmost side, and then fix it with adhesive paper.
- Page 4 Step 3: First use an 9.2-9.5 mm drill bit to drill the four holes marked on the positioning paper, and use a 6mm Ram gun to drive into the Rivet Nut.
- Page 5 Step 4: Install the Part “M” into your tailgate. Assemble the Part “A” & the Part “M” with the Part “H”, “J”, “K”.
- Page 6 Step 5: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
