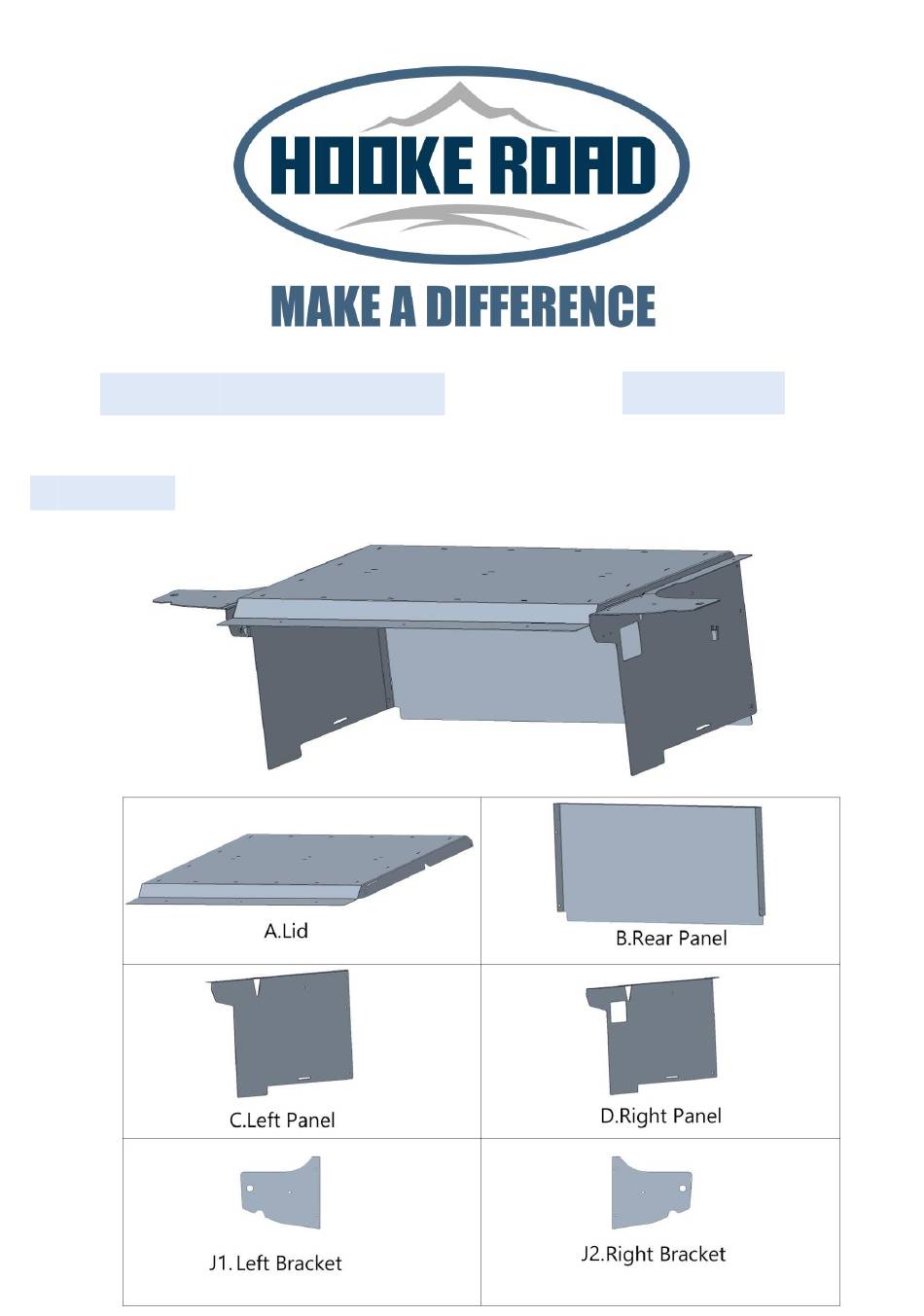

- Page 1 MMR.20057 Security Deck Enclosure (1) Contents:...
- Page 2 Part Name Size(mm) Picture Button Head Socket Cap Bolts Screws M6*20 Button Head Socket Cap Bolts Screws M6*14 Flat Washer M6*25*1.5 Flat Washer M6*18*1.5 Flat Washer M6*12*1 Nylon Insert Lock Nut nylon round spacer M6.2*11*4...
- Page 3 About 2 hours, 2 people might be needed for install. Install time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (MMR.20057), please scan the QR code.
- Page 4 (4) Installation instruction: Step 1:Fasten the left & right bracket(Part J1, J2) separately to the left & right panels (C, D). as shown below. Step 2:Insatll the pre-cut rubber strip on the edge of the left & right panels as illustrated.
- Page 5 Step 3: Insert the hooks through the left & right brackets and tighten using (M6*14) bolts, (M6*18*1.5) washers and (M6) nuts. Step 4:Install the support bracket to thei nner side (the panel) using the illustrated hardware (M6*20 bolts).
- Page 6 Step 5:Install the mounting bracket to the panel using the M6*14 bolt and washers.
- Page 7 Step 6: Assemble the passenger panel with the above steps as illustrated. Step 7: Empty the tailgate compartment and leave enough space ready to install our products. Step 8: Remove the factory hooks. Slide each of the mounting brackets into the floor.
- Page 8 Step 9: Fasten the rear panel to the front of left and right side panels using the M6*14 bolt and nuts.
- Page 9 Step 10: Put the rubber mat into the lide. Install the hooks to the lid using the M6*14 bolt groups.
- Page 10 Step 11: Install the lid by placing it on the enclosure assembly. Put the round spacer in the middle of them and use the M6*20 bolt nuts to assemble them.
- Page 11 Step 12: Adjust the position of each panel and tighten all bolts. Step 13: The installation is complete. We hope you enjoy a wonderful off-road life with this quality product!
- Page 12 Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase.
