Tailgate Reinforcement Frame

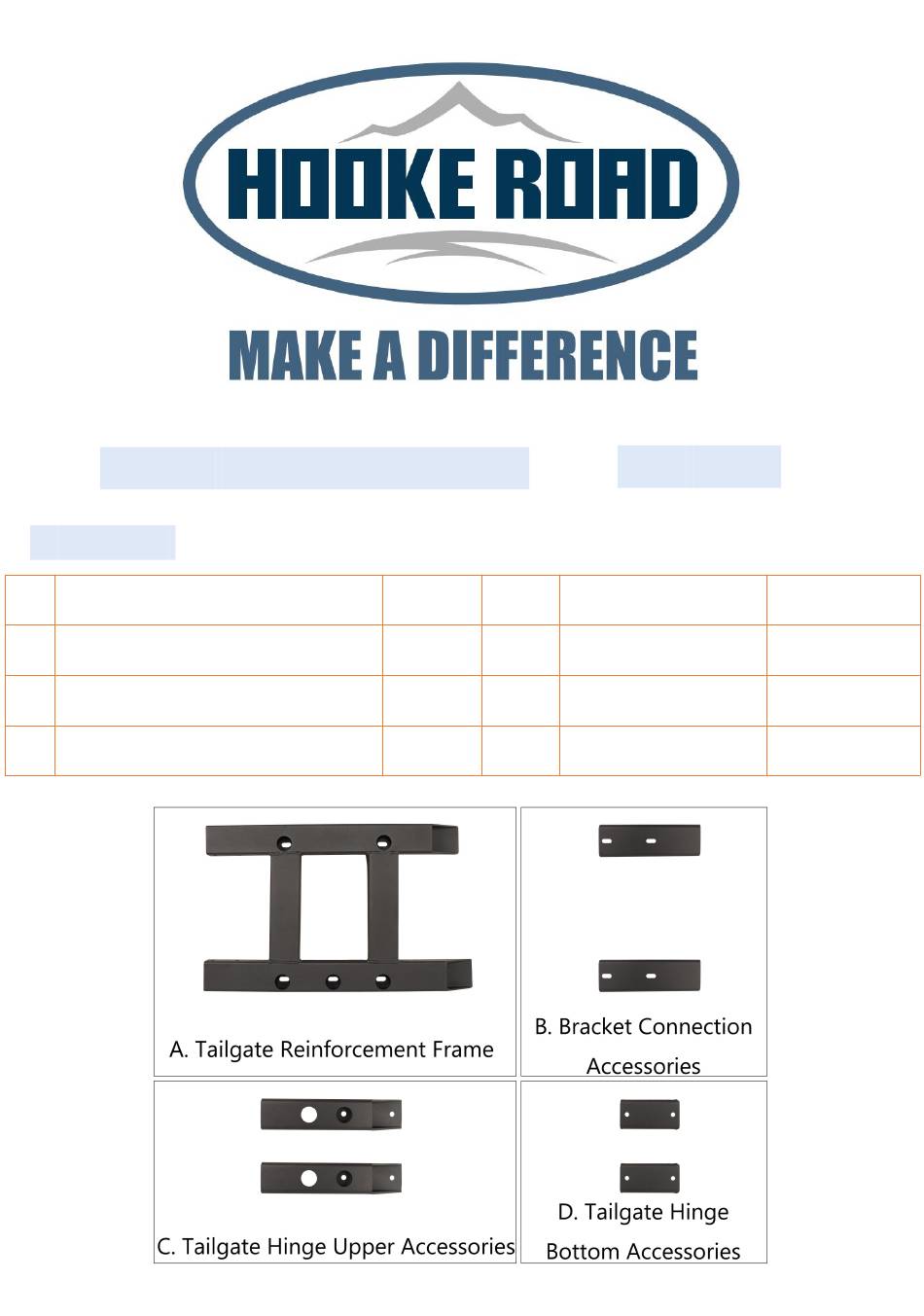

(1) Contents:
Qty
Part Name
1
Tailgate Reinforcement Frame Assembly
6
Socket Hex Head Cap Screws
8
Button Head Socket Cap Bolts Screws
Size(mm)
Qty
20
M8*20
6
5/16-18*1
MMR.10069
Part Name
Flat Washer
Nylon Insert Lock Nut
Size(mm)
M8*1.5*20
M8
Advertisement
Related Manuals for HOOKE ROAD MMR.10069
Summary of Contents for HOOKE ROAD MMR.10069
- Page 1 MMR.10069 Tailgate Reinforcement Frame (1) Contents: Part Name Size(mm) Part Name Size(mm) Tailgate Reinforcement Frame Assembly Flat Washer M8*1.5*20 Socket Hex Head Cap Screws M8*20 Nylon Insert Lock Nut Button Head Socket Cap Bolts Screws 5/16-18*1...
- Page 2 (2) Tools required: a. 13mm Wrench; b. 5mm Hex Bit Socket; c. Drive Socket Ratchet Wrench;...
- Page 3 About 1 hour, 1-2 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (MMR.10069), please scan the QR code.
- Page 4 (4) Installation instruction: Step 1: First close the tailgate, remove the original tailgate, and prepare to install our products. Step 2: Assemble the Tailgate Reinforcement Frame (A), the Bracket Connection Accessories (B), the Tailgate Hinge Upper Accessories (C), Tailgate Hinge Bottom Accessories (D) with the Socket Hex Head Cap Screws (M8*20), Flat Washer (M8*1.5*20), Nylon Insert Lock Nut (M8).
- Page 5 Step 3: Install the whole part with the Button Head Socket Cap Bolts Screws (5/16-18*1), Flat Washer (M8*1.5*20). Please tighten all screws after adjusting the proper height of the tailgate. Notes: Please use the original car screws for these 5 holes, we do not provide screw installation here.
- Page 6 Step 4: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
