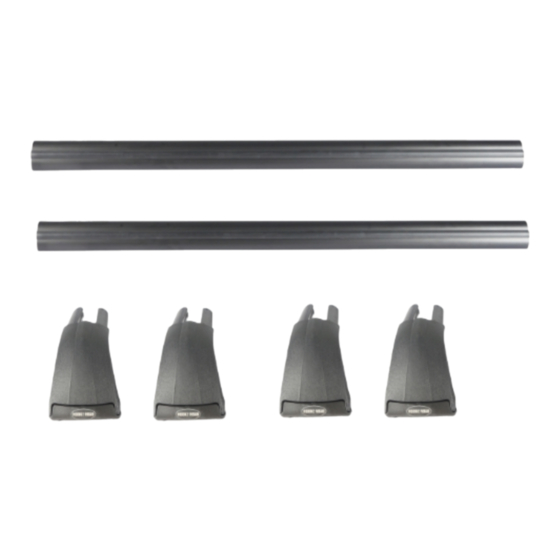

- Page 1 Roof Rock MMR.21792 (1) Contents: (2) Tools required: A.4mm Hex Socket Wrench; B.5mm Hex Socket Wrench; C.Phillips Screwdriver;...
- Page 2 About 30 minutes, 1-2 people might be needed for install. Install time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (MMR.21792), please scan the QR code.
- Page 3 (4) Installation instruction: Step 1: Locate support legs into the crossbar,a rubber mallet can be used to knock the legs in. Step 2: From underside of the crossbar fasten the 10G self tapping screw through the crossbar and into the leg. Repeat this process on all four legs.
- Page 4 Step 3: According to the sign of the bracket, distinguish the front and rear of the two bracket. Step 4: Swing the support leg strap under the gutter. Make sure that the strap is fully located under the gutter.
- Page 5 Step 5: As a guide,position the legs 700~800mm apart. Progressively tighten each of the M6 screws until a 3-5mm gap exists between the support leg and gutter of the vehicle. Tighten to 3-4 mm.Do not over tighten.
- Page 6 Step 6: The installation is complete.We hope you enjoy a wonderful off road life with this quality product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
