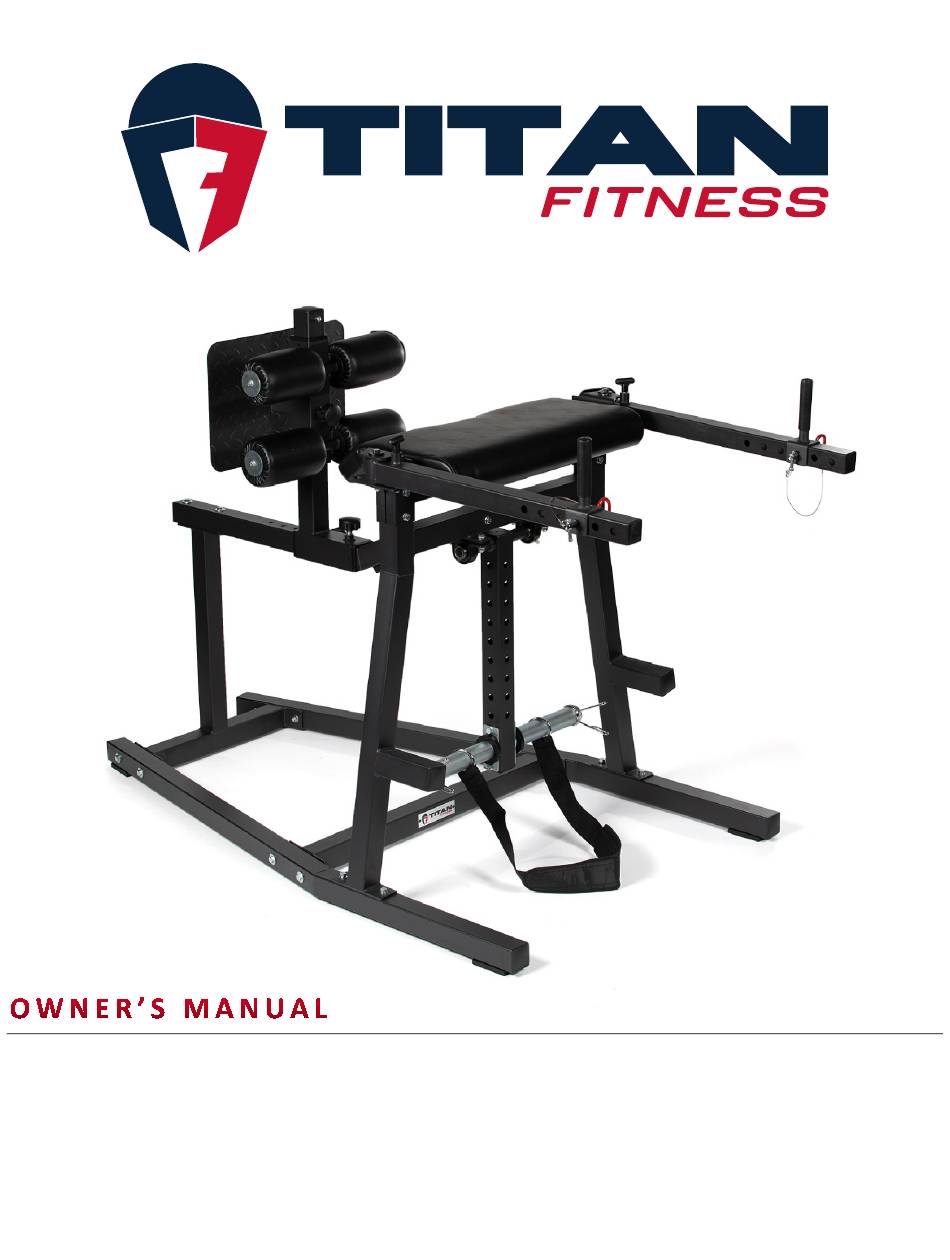

- Page 1 MPN(s): GHDPND1-GHDPND2 SKU(s): 400857 UPC(s): 840009205514...
- Page 3 DESCRIPTION DESCRIPTION Front Upright Frame Clip Φ50*Φ5 Rear Upright Frame Foam Base Connect Frame Foam Baffle Upper Connect Frame Rubber Foot Support Frame Rubber Bumper Φ77*Φ47.5*13 Adjustable Frame Sleeve □75*2.5 Pedal Frame End Cap□60*2.5 Swing Frame End Cap□50*2.5 Handle Frame End Cap Φ48*2.5 Right Base Frame Handle Bar Grip...
- Page 4 STEP 1 Fix Front Upright Frame (1),Rear Upright Frame(2) and Base connect Frame(3) to the Left & Right Base Frame (11&10) using Hex Bolt M10*25 (46), Hex Bolt M10*80 (44),Spring Washer Φ10 (53), Flat Washer Φ10.5*Φ30*2.5 (50) and Flat Washer Φ11*Φ20*2 (51).
- Page 5 STEP 3 Fix Upper Connect Frame (4) to Front & Rear Upright Frame (1&2) using Hex Bolt M10*80 (44), Flat Washer Φ10.5*Φ30*2.5 (50), Flat Washer Φ11*Φ20*2 (51) and Nut M10 (54). STEP 4 Fix the side Support Frame (12) to the Support Frame (5), Using Hex Bolt M10*80 (44), Flat Washer Φ10.5*Φ30*2.5 (50), Flat Washer...
- Page 6 STEP 5 Fix Handle Frame (9) to the Support Frame (5), Using Rotate Shaft (13), Spacer Bushing (24), Hex Bolt M10*95 (42), Flat Washer Φ10.5*Φ30*2.5 (50) and Nut M10 (54). Then Fix Adjustable Handle bar (18) to the Handle Frame (9).
- Page 7 STEP 6 Put Bearing 6005RZ (41) on Swing Frame (8), then Fix Swing Frame (5) and Bearing 6005RZ (41) to Front Upright Frame (1), using Hex Bolt M10*40 (45), Flat Washer Φ11*Φ20*2 (51) aand Nut M10 (54). FIX Plate Bar Holder (17) to the Swing Frame (8), using Hex Bolt M10*85 (43), Flat Washer Φ11*Φ20*2 (51) and Nut M10 (54).
- Page 8 STEP 7 Fix Pad (14) to the Support Frame (5), Using Hex Bolt M10*25 (46) and Flat Washer Φ11*Φ20*2 (51). Fix Pedal Frame (7) to the Adjustable Frame (6), Using Hex Bolt M10*20(49), then Fix Foam (30) to the Paddle Frame (7), Using Hex Bolt M8*25 (47) and Flat Washer Φ9*Φ16*1.6 (52).
- Page 9 This concludes the GHDPND Owner’s Manual. If applicable to your product, make sure to tighten all nut-and-bolt combinations before use. Enjoy! DISCLAIMER This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any fitness equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the...
