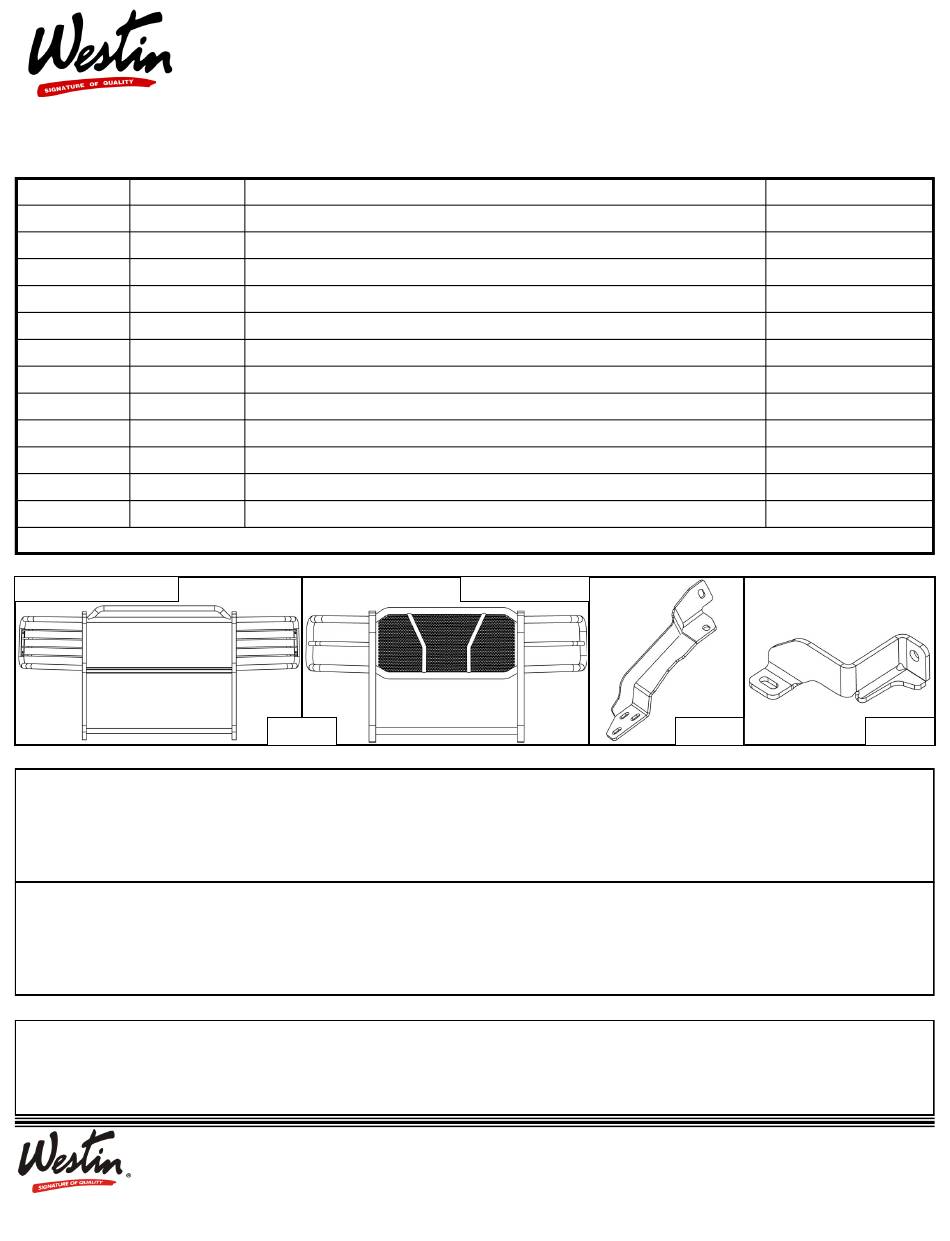

Westin 45-3780 Installation Instructions

AUTOMOTIVE PRODUCTS,
ITEM QUANTITY
1 1
2,3 2
4,5 2
6 4
7 4
8 8
9 8
10 8
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Sportsman Grille Guard
1. Remove contents from box, verify if all parts listed are present and free from damage.
Carefully read and understand all instructions before attempting installation.
Failure to identify damage before installation could lead to a rejection of any claim.
2. Remove the factory tow hooks (if equipped). They can be re-used with this kit if desired. Refer to Figure 1.
3. Slip the Lower Mounting Brackets through the tow hook pockets one side at a time. Position them as shown in Figure 2.
Note: Install the br ackets on the outside of the fr ame.
4. Insert the factory tow hooks back into their original locations. Note: Skip this step if tow hooks are not available or desired.
CARE INSTRUCTIONS

REGULAR WAXING IS RECOMMENDED. DO NOT USE ANY TYPE OF POLISH OR WAX THAT MAY CONTAIN ABRASIVES.

STAINLESS STEEL PRODUCTS CAN BE CLEANED WITH MILD SOAP AND WATER. STAINLESS STEEL POLISH SHOULD BE USED TO POLISH SMALL SCRATCHES.

GLOSS BLACK FINISHES SHOULD BE CLEANED WITH MILD SOAP AND WATER.
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-3048-RevB ECO #: W17-0999
INSTALLATION INSTRUCTIONS
HDX AND SPORTSMAN GRILLE GUARD
APPLICATION:
2015-2017 Chevrolet Silverado 2500/3500
PART NUMBER:
45-3780, 40-3785, 57-3780, 57-3785
DESCRIPTION
GRILLE GUARD
LOWER MOUNTING BRACKETS, DRIVER (2) AND PASSENGER (3)
SUPPORT STRAPS, DRIVER (4) AND PASSENGER (5)
M12 FLANGE BOLT
M12 FLANGE NUT
M10 STAINLESS BUTTON HEAD BOLT
M10 STAINLESS CUPPED WASHER
M10 STAINLESS FLANGE NUT
ITEM 1
PROCEDURE
HDX Grille Guard
Thank you for choosing Westin products
for additional installation assistance please call
1
TOOLS NEEDED
SCREWDRIVER
15MM WRENCH
15MM SOCKET
ALLEN WRENCH
18MM WRENCH
18MM SOCKET
10MM SOCKET
16MM SOCKET
16MM WRENCH
RATCHET EXT.
RATCHET
TORQUE WRENCH
Driver side items shown,
Passenger side opposite
ITEM 2
Customer Service (800) 793-7846
www.westinautomotive.com
DATE: 4/21/17
ITEM 4
