Westin 40-3905 Installation Instructions

AUTOMOTIVE PRODUCTS,

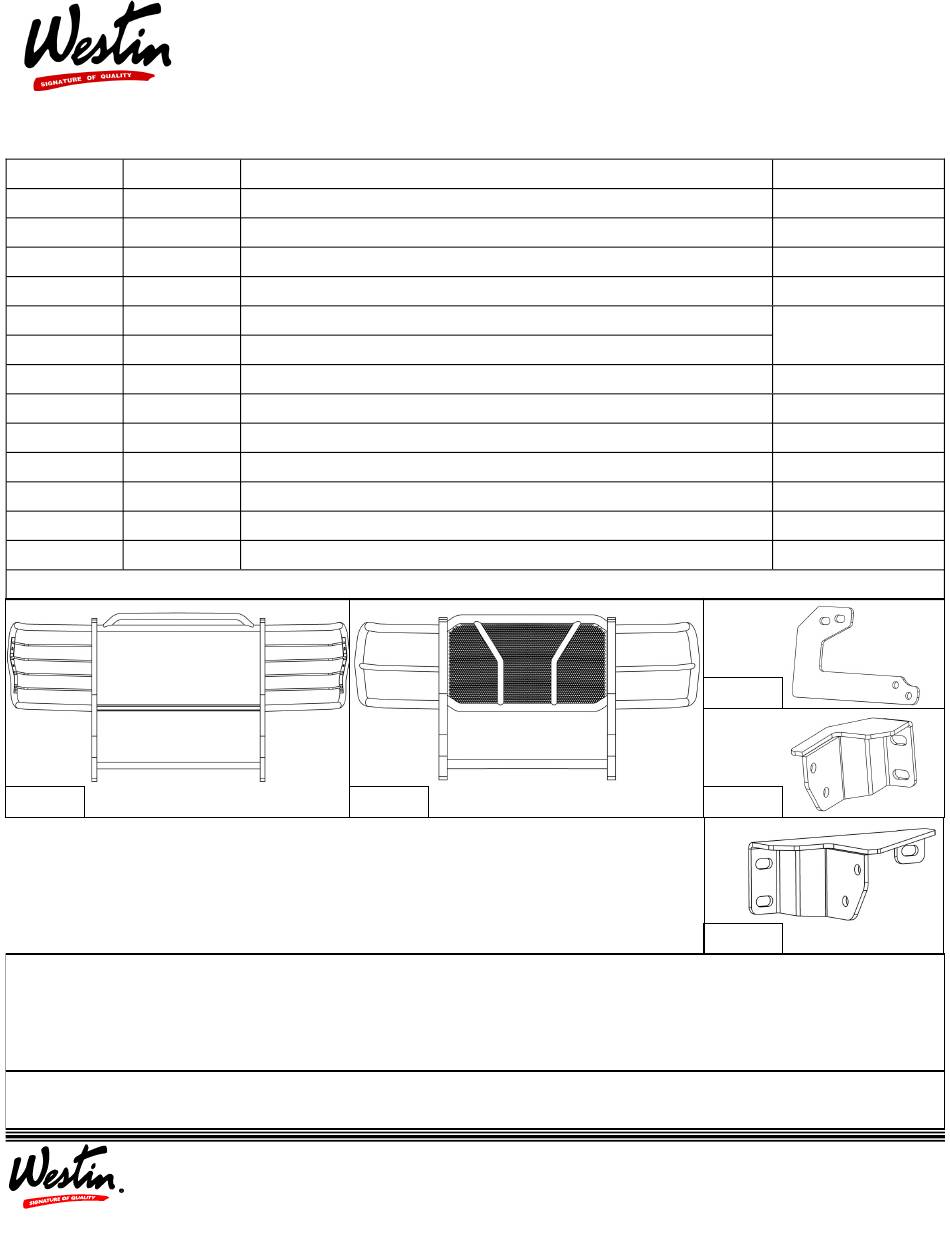

ITEM QUANTITY
1 1
2 1
3 2
4 1
5 1
6 8
7 8
8 8
9 8
10 8
11 8
12 2
13 2
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
ITEM 1
1. Remove contents from box, verify if all parts listed are present and free from damage.
Carefully read and understand all instructions before attempting installation.
Failure to identify damage before installation could lead to a rejection of any claim.
2. Starting on either side, use a flathead screw driver to remove the plastic covers located around the factory tow hooks. Re-
peat for other side. See Figures 1 and 2. Repeat for other side.
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
ECO #: W16-0112
P.N.: 75-57390-RevB
INSTALLATION INSTRUCTIONS
SPORTSMAN GRILLE GUARD / HDX GRILLE GUARD
APPLICATION:
2017 Ford F250/350 Super Duty
PART NUMBER:
40-3905, 45-3900, 57-3900, 57-3905
SPORTSMAN GG (INCLUDED WITH KIT 40-3905, 45-3900)
HDX GRILLE GUARD (INCLUDED WITH KIT 57-3900, 57-3905)
LOWER SUPPORT BRACKET
DRIVER SIDE LOWER MOUNT BRACKET
PASSENGER SIDE LOWER MOUNT BRACKET
M12 FLAT WASHER (YELLOW ZINC)
M12 SPLIT LOCK WASHER (YELLOW ZINC)
M12 HEX NUT (YELLOW ZINC)
M12 SOCKET BUTTON HEAD SCREW (BLACK ZINC OR RAW) S/S
M12 CUP WASHER (BLACK ZINC OR RAW) S/S
M12 SERRATED FLANGE NUT (BLACK ZINC OR RAW) S/S
M12 PLASTIC RETAINER
ITEM 2
DESCRIPTION
M12 FISH WIRE
PROCEDURE
1
ITEM 3
ITEM 4
ITEM 5
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
16MM SOCKET
17MM SOCKET
18MM SOCKET
19MM SOCKET
FLAT HEAD
SCREW DRIVER
ALLEN WRENCH
SOCKET EXT.
RATCHET
TORQUE WRENCH
DATE: 12/1/16
