Westin 40-2055 Instructions

ITEM
1
2,3
4,5
6
7
8
9
ARTÍCULO
1
2,3
4,5
6
7
8
9
Westin Automotive Products, Inc.
5200 N. Irwindale Ave. Ste 220
Irwindale, Ca 91706
INSTRUCTIONS—INSTRUCCIONES—CONSIGNES
MAZDA B SERIESPICKUPS ECL DUAL SPORT MODELS 2001-2008
QUANTITY
1
2
2
2
8
20
10
CANTIDAD
1
2
2
2
8
20
10
APPLICATION: FORD RANGER/ RANGER EDGE 2001-2005
Part # 40-2055, 45-0880, 40-0885
DESCRIPTION

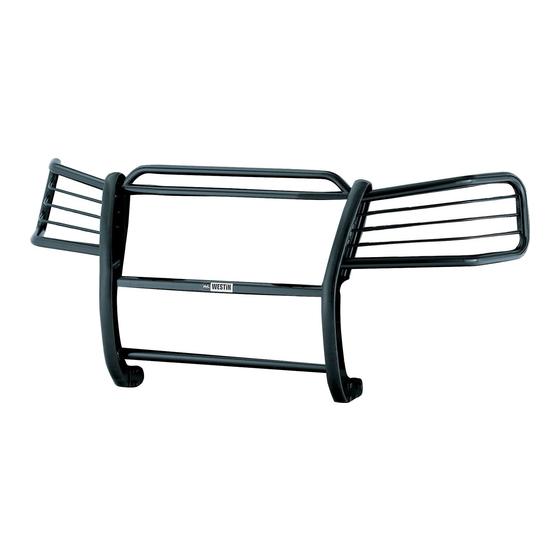

GRILLE GUARD

MOUNTING BRACKETS (2)

DRIVERS SIDE, (3) PASSEN-
GER SIDE
MOUNITNG BRACKET SUP-
PORT, (4) DRIVERS SIDE, (5)
PASSENGER SIDE
M12 x 100MM HEX HEAD
BOLT (HALF THREADED)
M12 x 30MM HEX HEAD
BOLTS

M12 FLAT WASHERS

M12 NYLON LOCK NUTS

DISCRIPCIÓN
PROTECTOR DE PARRILLA
SOPORTES DE MONTAJE (2)
LADO DEL CONDUCTOR, (3)
LADO DEL PASAJERO
SOSTEN DE SOPORTE DE
MONTAJE, (4) LADO DEL
CONDUCTOR, (5) LADO DEL
PASAJERO
PERNO DE CABEZA DE AOJO
M12 x 100MM (DE MEDIA RO-
SCA)
PERNOS DE CABEZA DE
AOJO M12 x 30MM
RONDANAS PLANAS DE M12
TUERCAS DE FIJACIÓN DE
NYLON DE M12
TOOLS NEEDED
19MM SOCKET AND RACHET
TORQUE WRENCH
HERRAMIENTA NECESARIA
DADO DE 19MM Y MATRACA
LLAVE DE TORSIÓN
Thank You for choosing Westin products
For additional installation assistance please call
Customer Service (800)793-7846
