AUTOMOTIVE PRODUCTS,
ITEM
QUANTITY
1
1
2,3
2
4,5
2
6,7
2
8
8
9
8
10
8
11
8
12
8
13
2
14
2
15
2
16
8
17
6
18
4
19
2
20
6
21
12
22
6
23
6
24
1
25
8
26
8
27
8
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
INSTALLATION INSTRUCTIONS

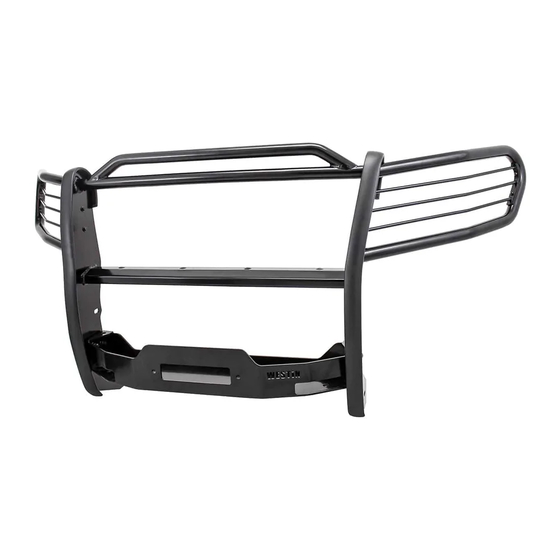

SPORTSMAN WINCH MOUNT GRILLE GUARD
APPLICATION:
2016-2017 Toyota Tacoma
PART NUMBER:
40-93885, 45-93880, 46-23885
LOWER MOUNT BRACKETS, (2) DRIVER AND (3) PASSENGER
FRAME REINFORCED MOUNT BRACKETS, (4) DRIVER AND (5) PASSENGER
UPPER SUPPORT STRAP, (6) DRIVER AND (7) PASSENGER
M10 HEX HEAD CAP SCREW (YELLOW ZINC)
M10 SPLIT LOCK WASHER (YELLOW ZINC)
SMALL M10 FLAT WASHER (YELLOW ZINC)
LARGE M10 FLAT WASHER (YELLOW ZINC)
M10 HEX NUT (YELLOW ZINC)
LONG M12 HEX HEAD CAP SCREW (YELLOW ZINC)
LARGE M12 FLAT WASHER (YELLOW ZINC)
MEDIUM M12 HEX HEAD CAP SCREW (YELLOW ZINC)
SMALL M12 FLAT WASHER (YELLOW ZINC)
M12 SPLIT LOCK WASHER (YELLOW ZINC)
M12 HEX NUT (YELLOW ZINC)
SHORT M12 HEX HEAD CAP SCREW (YELLOW ZINC)
M12 HEX SOCKET BUTTON HEAD SCREW (BLACK ZINC)
M12 FLAT WASHER (BLACK ZINC)
M12 SPLIT LOCK WASHER (BLACK ZINC)
M12 HEX NUT (BLACK ZINC)
GRILLE GUARD ASSEMBLY
M10 HEX SOCKET BUTTON HEAD BOLT (RAW OR BLACK ZINC)
M10 FLAT WASHER (RAW OR BLACK ZINC)
M10 SERRATED FLANGE NUT (RAW OR BLACK ZINC)
DESCRIPTION
WINCH TRAY
1
TOOLS NEEDED
15MM SOCKET
18MM SOCKET
15MM WRENCH
18MM WRENCH
UTILITY KNIFE
8MM ALLEN
6MM ALLEN
SCREWDRIVER
TORQUE WRENCH
Thank you for choosing Westin products.
RATCHET
Advertisement
Table of Contents
Related Manuals for Westin 45-93880
Summary of Contents for Westin 45-93880
- Page 1 M10 HEX SOCKET BUTTON HEAD BOLT (RAW OR BLACK ZINC) M10 FLAT WASHER (RAW OR BLACK ZINC) M10 SERRATED FLANGE NUT (RAW OR BLACK ZINC) ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING Thank you for choosing Westin products.
- Page 2 See Figures 3 and 4. Remove screws Remove plastic buttons Figure 3 Figure 4 5. Remove plastic cover on both sides by removing the plastic push-pins. See Figure 5. Remove plastic covers Front Plastic Bumper Insert Figure 5 Thank you for choosing Westin products.
- Page 3 10. Locate factory bolt on the frame and remove. Repeat for both sides. See Figure 11. Trim slot Align hole with hole lo- cated on the front bumper Figure 8 Figure 9 Attach upper support strap with the Remove factory bolt frame reinforced mount brackets Figure 10 Figure 11 Thank you for choosing Westin products.
- Page 4 STAINLESS STEEL PRODUCTS CAN BE CLEANED WITH MILD SOAP AND WATER. STAINLESS STEEL POLISH SHOULD BE USED TO POLISH SMALL SCRATCHES. GLOSS BLACK FINISHES SHOULD BE CLEANED WITH MILD SOAP AND WATER. Thank you for choosing Westin products.
- Page 5 AVOID PERSONAL INJURY. MAXIMUM TOWING/CARRYING CAPACITY: The Westin Receiver Hitches will have a visible tow rating label affixed directly on the product. Us- er should never exceed the vehicle manufacturers maximum tow and weight rating regardless of the capacity of the hitch. FAILURE TO FOLLOW THESE GUIDELINES WILL VOID THE WESTIN WARRANTY AND MAY RESULT IN PERSONAL INJURY AND/OR INJURY TO OTHERS AS WELL AS VEHICLE DAMAGE.
