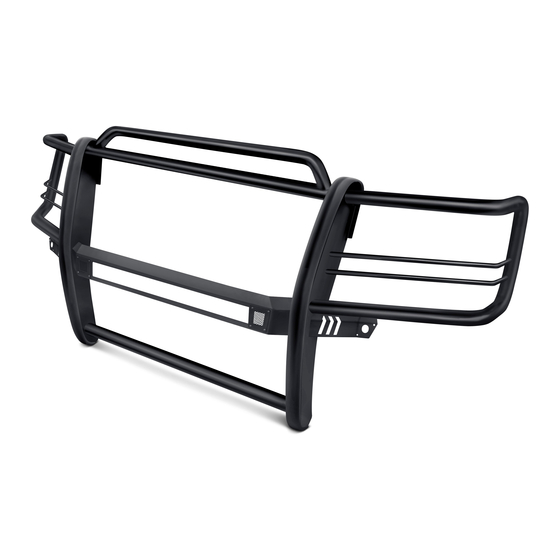

Westin Sportsman X Grille Guard Installation Instructions Manual

Westin Sportsman X Grille Guard Installation Instructions Manual

Application: 2019-2020 dodge ram 2500/3500

Advertisement

Quick Links

ITEM
QUANTITY
1
1
2
1
3
1
4
1
5
1
6
4
7
8
8
4
9
4
10
6
11
6
12
6
13
2
14
2
15
1
16
1
17
1
18
1
* These parts belong to the license plate relocation kit (sold separately) Part #32-0055
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-4034025
ECO #: W19-0193
INSTALLATION INSTRUCTIONS

APPLICATION:

2019-2020 Dodge Ram 2500/3500

PART NUMBER:

40-34025

CONTENT

DESCRIPTION
SPORTSMAN X GRILLE GUARD
DRIVER MOUNTING BRACKET
PASSENGER MOUNTING BRACKET
UPPER DRIVER STRAP
UPPER PASSENGER STRAP
M12 HEX HEAD BOLT
M12 FLAT WASHER
M12 LOCK WASHER
M12 HEX NUT
M12 SOCKET BUTTON HEAD BOLT
M12 SERRATED BELLILLE WASHER
M12 SERRATED FLANGE NUT
M12 PLASTIC RETAINER
M12 PLASTIC RETAINER SQUARE
M6 BUTTON HEAD BOLT *
M6 FLAT WASHER *
M6 SPRING LOCK WASHER *
M6 SERRATED FLANGE NUT *

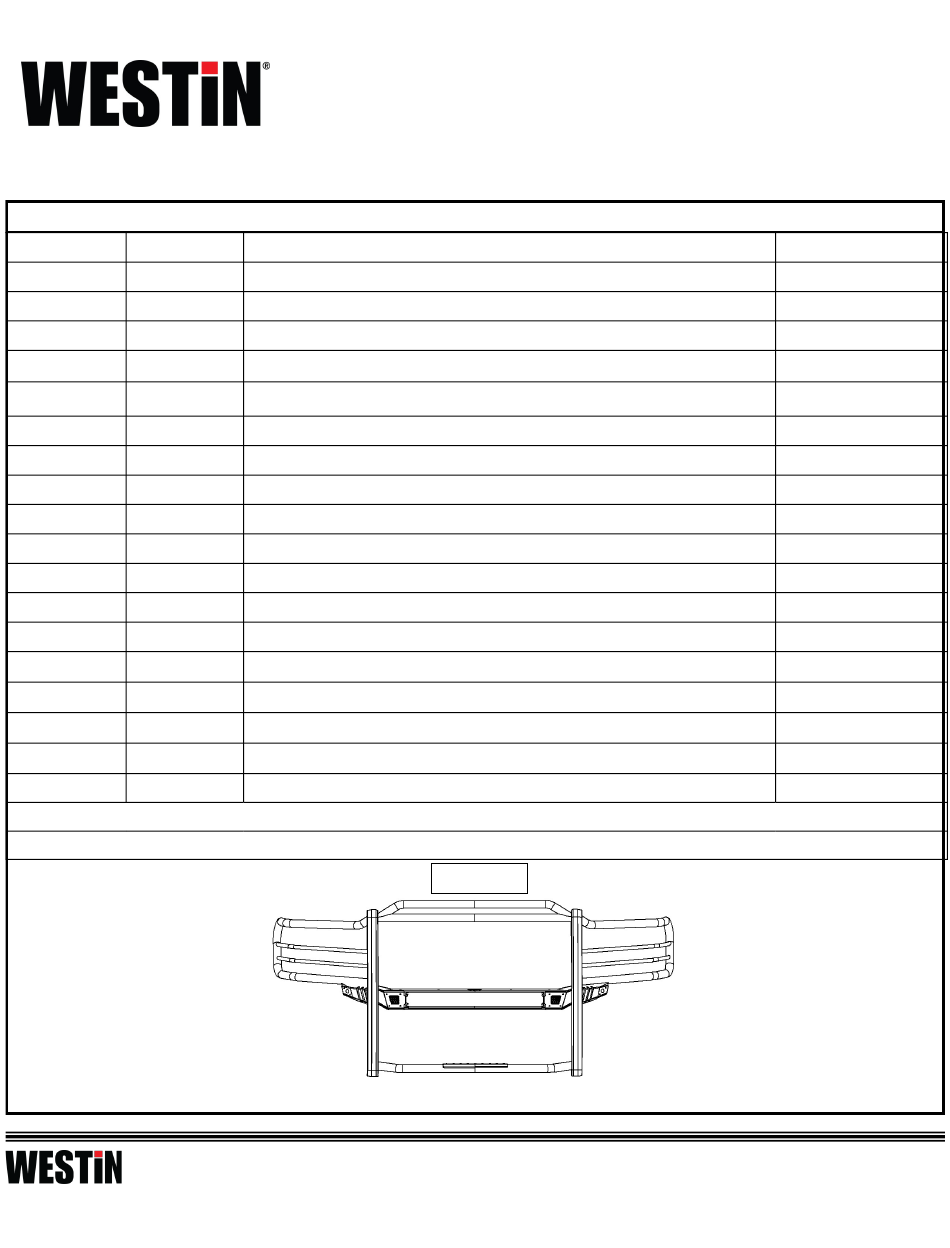

ITEM 1
1
Sportsman X Grille Guard
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
18MM SOCKET
18MM WRENCH
ALLEN
TORQUE WRENCH
RATCHET
CUTTING TOOL
DATE: 05/02720

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sportsman X Grille Guard and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Westin Sportsman X Grille Guard

  • Page 1 ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING ITEM 1 Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
  • Page 2 2. Start below the front of the vehicle. Unbolt the two factory bolts (three if tow hooks are equipped) from the bumper bracket on each side. See Figure 1. Fig. 1 Remove Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
  • Page 3 3. Repeat on passenger side. Note: Depending on the fitment of the grille guard, more cutting may be required. Cut accord- ingly. Fig. 3 Cut this area out Driver Side Shown Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com P.N.: 75-4034025...
  • Page 4 Factory Bracket Install retainer square here Driver Side Shown Driver Side Shown Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com P.N.: 75-4034025...
  • Page 5 Fig. 9 Bumper Inner Bracket Frame Passenger Side Shown Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com P.N.: 75-4034025...
  • Page 6 M6 hardware is supplied to re-locate your license plate. Refer to P#32-0055 for the relocation kit. See Figure 12. Align and adjust grille guard as needed and torque all M12 hardware to 60 ft-lbs. Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca.
  • Page 7 STAINLESS STEEL PRODUCTS CAN BE CLEANED WITH MILD SOAP AND WATER. STAINLESS STEEL POLISH SHOULD BE USED TO POLISH SMALL SCRATCHES.  GLOSS BLACK FINISHES SHOULD BE CLEANED WITH MILD SOAP AND WATER. Westin Automotive Products, Inc. Thank you for choosing Westin products 320 W. Covina Blvd for additional installation assistance please call San Dimas, Ca. 91773 Customer Service (800) 793-7846 www.westinautomotive.com...
  • Page 8 AND SAFETY. DRILLING: Most Westin products do not require drilling for installation. If drilling is defined as required, use caution when drilling a vehicle. FAILURE TO REVIEW AN AREA TO BE DRILLED MAY RESULT IN PERSONAL INJURY AND/OR INJURY TO OTHERS AS WELL AS VEHICLE DAMAGE.
