Westin 57-3950 Installation Instructions

ITEM QUANTITY
1 1
2,3 2
4,5 2
6 2
7 4
8 2
9 6
10 12
11 6
12 2
13 2
14 2
15 6
16 6
17 6
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
ITEM 1
Sportsman Grille Guard
ITEM 1
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-40395-RevA ECO #: W18-0071
INSTALLATION INSTRUCTIONS
APPLICATION:
PART NUMBER:
LOWER MOUNTING BRACKET, DRIVER (2) AND PASSENGER (3)
UPPER STRAP BRACKET, DRIVER (4) AND PASSENGER (5)
*STAINLESS FOR 57-3950 & 45-3950; BLACK ZINC FOR 57-3955 & 40-3955
ITEM 2
HDX Grille Guard
HDX & SPORTSMAN GRILLE GUARDS
2019 Chevrolet Silverado 1500 (Excl. 2019
Silverado LD)
57-3950, 57-3955, 45-3950, 40-3955
DESCRIPTION

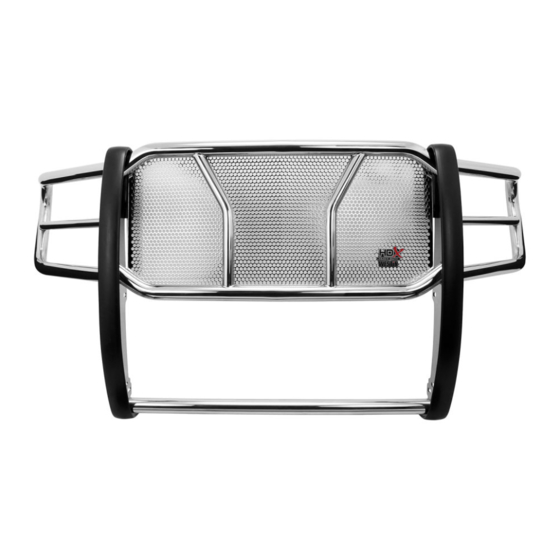

GRILLE GUARD
LOWER SUPPORT STRAP
SHORT M12 HEX HEAD CAP SCREW
LONG M12 HEX HEAD CAP SCREW
M12 SPLIT LOCK WASHER
M12 FLAT WASHER
M12 HEX NUT
M10 BUTTON HEAD BOLT *
M10 BELLEVILLE WASHER *
M10 SERRATED FLANGE NUT *
M12 BUTTON HEAD BOLT *
M12 SERRATED FLANGE NUT *
M12 BELLEVILLE WASHER *
DRIVER SIDE ITEMS
SHOWN;
PASSENGER SIDE
OPPOSITE
1
ITEM 4
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
10MM SOCKET
16MM SOCKET
16MM WRENCH
18MM SOCKET
18MM WRENCH
FLAT HEAD
SCREWDRIVER
HAMMER
UTILITY KNIFE
RATCHET
TORQUE WRENCH
PRYBAR
13MM SOCKET
ITEM 6
DATE: 10/11/18
