Installing a Transceiver in the Switch
1. Insert transceiver into the guides and
slide it in until it stops.
2. Press in firmly until the transceiver is flush
with the face of the switch.
3. Tighten the retaining screws on the
transceiver until they secure, but do not
overtighten them.
4. Press the Reset button to reset/reboot the
switch and initialize the transceivers.

3. Verify the Switch Passes Self Test

Before mounting the switch in its network location, you should first verify that
it is working properly by plugging it into a power source and verifying that it
passes its self test.
1.
N o t e
The Series 2300 and 2500 switches do not have a power switch. They are
powered on when the power cord is connected to the switch and to a power
source. For safety, the power outlet should be located near the switch instal-
lation.
If your installation requires a different power cord than the one supplied with
the switch, be sure to use a power cord displaying the mark of the safety
agency that defines the regulations for power cords in your country. The mark
is your assurance that the power cord can be used safely with the switch.
Connect the power cord supplied with the switch to the power connector
on the back of the switch, and then into a properly grounded electrical
outlet.
Installing the Series 2300 and 2500 Switches
Installation Procedures

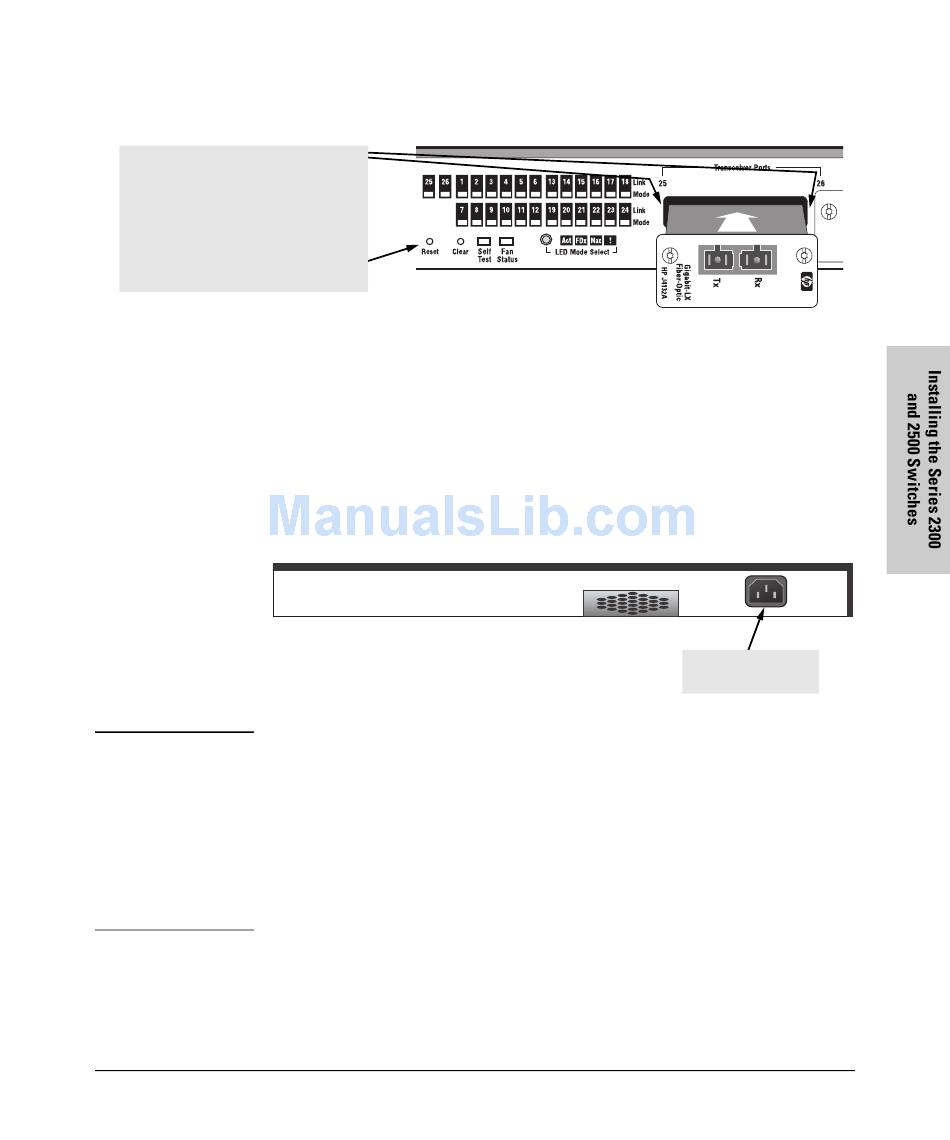

Connect power cord to
the power connector
2-7
