Water Closet Battery Models:
ZER6000AV-ONE-TM
ZER6000AV-HET-TM
ZER6000AV-WS1-TM
ZER6000AV-DF-TM
Water Closet Hardwired Models:
ZER6000AV-ONE-TM-HW
ZER6000AV-HET-TM-HW
ZER6000AV-WS1-TM-HW
ZER6000AV-DF-TM-HW
Compliance:
• ADA Compliant
• ASSE 1037/ASME A112.1037/CSA B125.37
• cUPC
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of purchase.
Decorative finishes warranted for one year. We will replace at no costs goods that prove defective provided we are notified in writing of such defect and the
goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly maintained and used in accordance with instructions. We shall
not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or consequential damages. The sole and exclusive
remedy shall be limited to the replacement of the defective goods. Before installation and use, the purchaser shall determine the suitability of the product for his
intended use and the purchaser assumes all risk and liability whatever in connection therewith. Where permitted by law, the implied warranty of merchantability
is expressly excluded. If the products sold hereunder are "consumer products," the implied warranty of merchantability is limited to a period of three years and
shall be limited solely to the replacement of the defective goods. All weights stated in our catalogs and lists are approximate and are not guaranteed.
NOTICE: READ ENTIRE MANUAL PRIOR TO INSTALLING PRODUCT
1.1 gpf
1.28 gpf
1.6 gpf
1.1/1.6 gpf
1.1 gpf
1.28 gpf
1.6 gpf
1.1/1.6 gpf
LIMITED WARRANTY

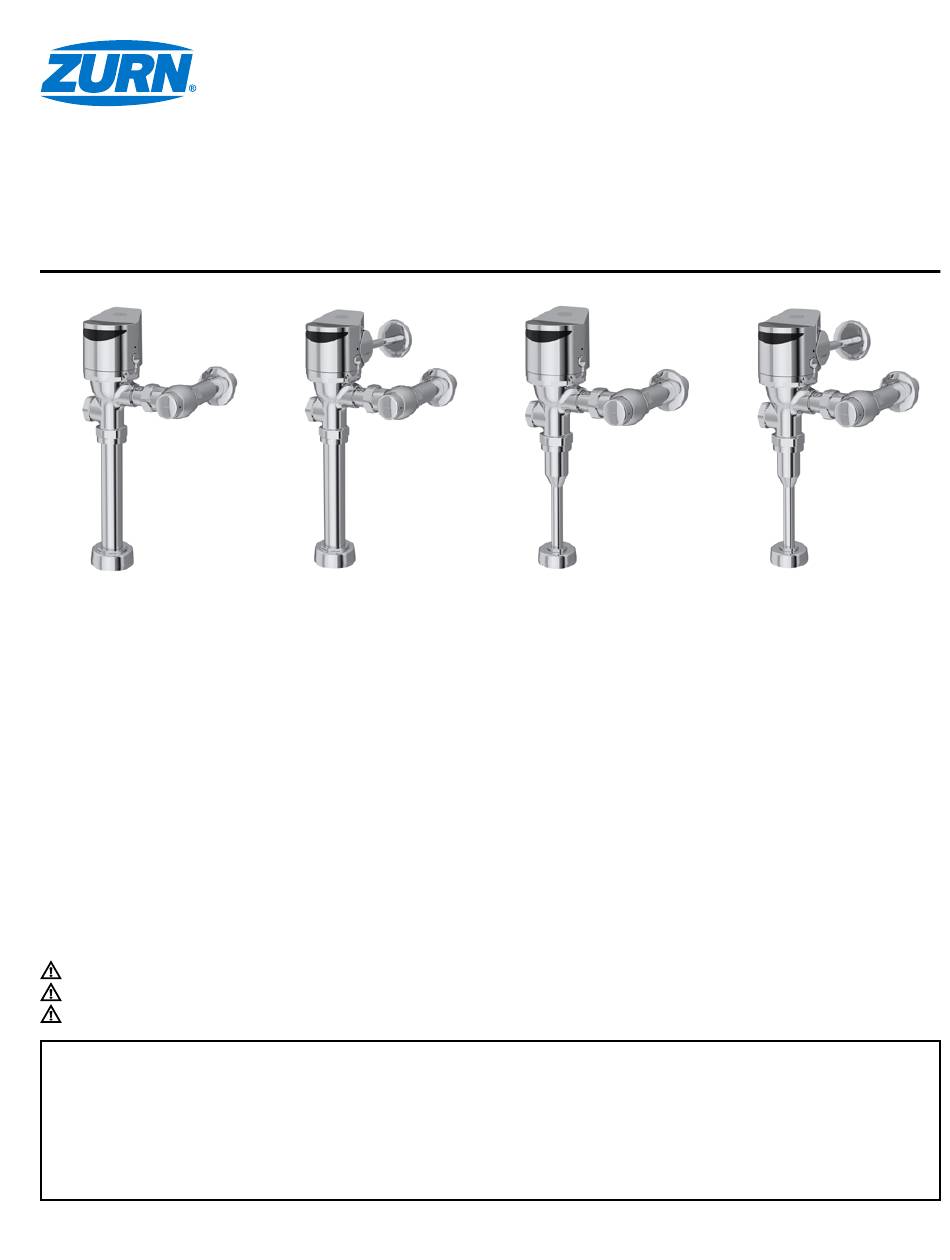

AquaSense
ZER-TM Series
Automatic Sensor-Operated Gear
Driven Type Flushometer for Water
Closets and Urinals
Installation, Operation, Maintenance
and Parts Manual
Urinal Battery Models:
ZER6003AV-ULF-TM
ZER6003AV-EWS-TM
ZER6003AV-WS1-TM
Urinal Hardwired Models:
ZER6003AV-ULF-TM-HW
ZER6003AV-EWS-TM-HW
ZER6003AV-WS1-TM-HW
• Texas Accessibility Standard (TAS)
• WaterSense Compliant
®
0.125 gpf
0.5 gpf
1.0 gpf
0.125 gpf
0.5 gpf
1.0 gpf
Advertisement
Related Manuals for ZURN AquaSense ZER6003AV-TM
Summary of Contents for ZURN AquaSense ZER6003AV-TM
- Page 1 AquaSense ® ZER-TM Series Automatic Sensor-Operated Gear Driven Type Flushometer for Water Closets and Urinals Installation, Operation, Maintenance and Parts Manual Water Closet Battery Models: Urinal Battery Models: ZER6000AV-ONE-TM 1.1 gpf ZER6003AV-ULF-TM 0.125 gpf ZER6000AV-HET-TM 1.28 gpf ZER6003AV-EWS-TM 0.5 gpf ZER6000AV-WS1-TM 1.6 gpf ZER6003AV-WS1-TM...
-
Page 2: Specifications
Operating Temperature: 35°F to 104°F [2°C to 40°C] Important Safety Information • Do not convert or modify this Zurn product. All warranties will be voided. • All plumbing is to be installed in accordance with applicable codes and regulations. • Water supply lines must be sized to provide an adequate volume of water for each fixture. - Page 3 Sweat Solder Adapter Installation Instructions Flush Valve Installation NOTE: Before installation, turn off water supplies to existing fixture and remove flushometer if replacing an existing device. Prior to attaching flush valve tailpiece to control stop, inspect and Control Stop verify that the O-ring seal is located within the O-ring groove at 1. Measure distance from finished wall to the center line of the fixture 2.
- Page 4 1. Turn battery tray screw counterclockwise with the 3/32” hex key Connect Hardwired directly to HW6 Power Converter. (Recommended if one to two flush valves are powered by one HW6.) AA Alkaline batteries (supplied) into the battery tray. ZURN wrench until it loose and comes out. Then, slide the battery tray 1. Using appropriate tools, cut the RED power connector from the...
- Page 5 Sensor Angle Adjustment (when necessary) Retrofit Installation Instruction 1.Turn off control stop using a flat head screwdriver turning 1. Turn off the control stop by turning it clockwise using a flat head clockwise. Afterward, utilize the manual override button to flush screwdriver. Then, use the electronic or manual override button water out of the flush valve. or manual handle to flush the water out of the flush valve. 2. Before loosening the locking ring, ensure that both the strap wrench and locking ring are completely dry. This will optimize 2.
- Page 6 Dual Flush User Guide (For ZER6000AV-DF-TM Only) • The Dual Flush model supplies flush volumes of 1.1 and 1.6 gallons per flush. When a user is present for less than 60 seconds, the valve will flush with 1.1 gallons of water. When a user is present for over 60 seconds, the valve consumes 1.6 gallons of water. A user must be present for a minimum of 8 seconds in order to trigger a flush. • The Dual Flush model must be paired with a fixture with a flush volume range that includes 1.1 to 1.6 gallons per flush. For a list of recommended bowls, please refer to our website, www.zurn.com, or speak with your local Zurn rep. Care and Cleaning Instruction • Do not use any abrasive or chemical cleaners to clean the flushometer. • The suggested cleaning of chrome plated surfaces is simply to clean them with mild soap and water, then dry. Commercial cleaning compounds are never recommended. • Upon cleaning other areas of the restroom, be sure the sensor lenses are protected from other cleaning chemicals/solvents to prevent potential damages to the sensor and/or electronics.
-
Page 7: Troubleshooting Guide
(default is OFF). trap exchange timing. User not detected; no LED Flush valve is aimed at an angle. Rotate flush valve head to be flashes. perpendicular to wall. See Sensor For further assistance with troubleshooting, visit http://www.zurn.com/ Angle Adjustment section for adjusting the flush valve head. Stop valve is closed / turned off. Turn on stop valve. Manual override button does not initiate a flush. - Page 8 ZER-TM Series Repair Kits Service Parts Control Stop Repair Kit and Parts Product No. ZER-TM Valve Head Repair Kit and Parts Product No. Control Stop Repair Kit for 1” and 3⁄4”, Locking Ring, Item 35 PER6000-M-RING P6000-D-SD Items 18-24 Sloan © Locking Ring, Item 36 PER6000-M-RING-S Seal Seat for 1” and 3/4”, Item 18 P6000-D42 Valve Head, (1.1 gpf), Item 34 PERK6000-L-1.1 VP Control Stop Repair Kit for 1” and 3/4”, Valve Head, (1.28 gpf), Item 34 PERK6000-L-1.28 P6000-D-VP Items 18-24 Valve Head, (1.6 gpf), Item 34 PERK6000-L-1.6...
- Page 9 Rev. C | Date: 2/14/2025 | C.N. No. 146641 | Prod./Dwg. No. FV838 Patent zurn.com/patents US 1.855.ONE.ZURN CANADA 1.877.892.5216 ZURN.COM...
