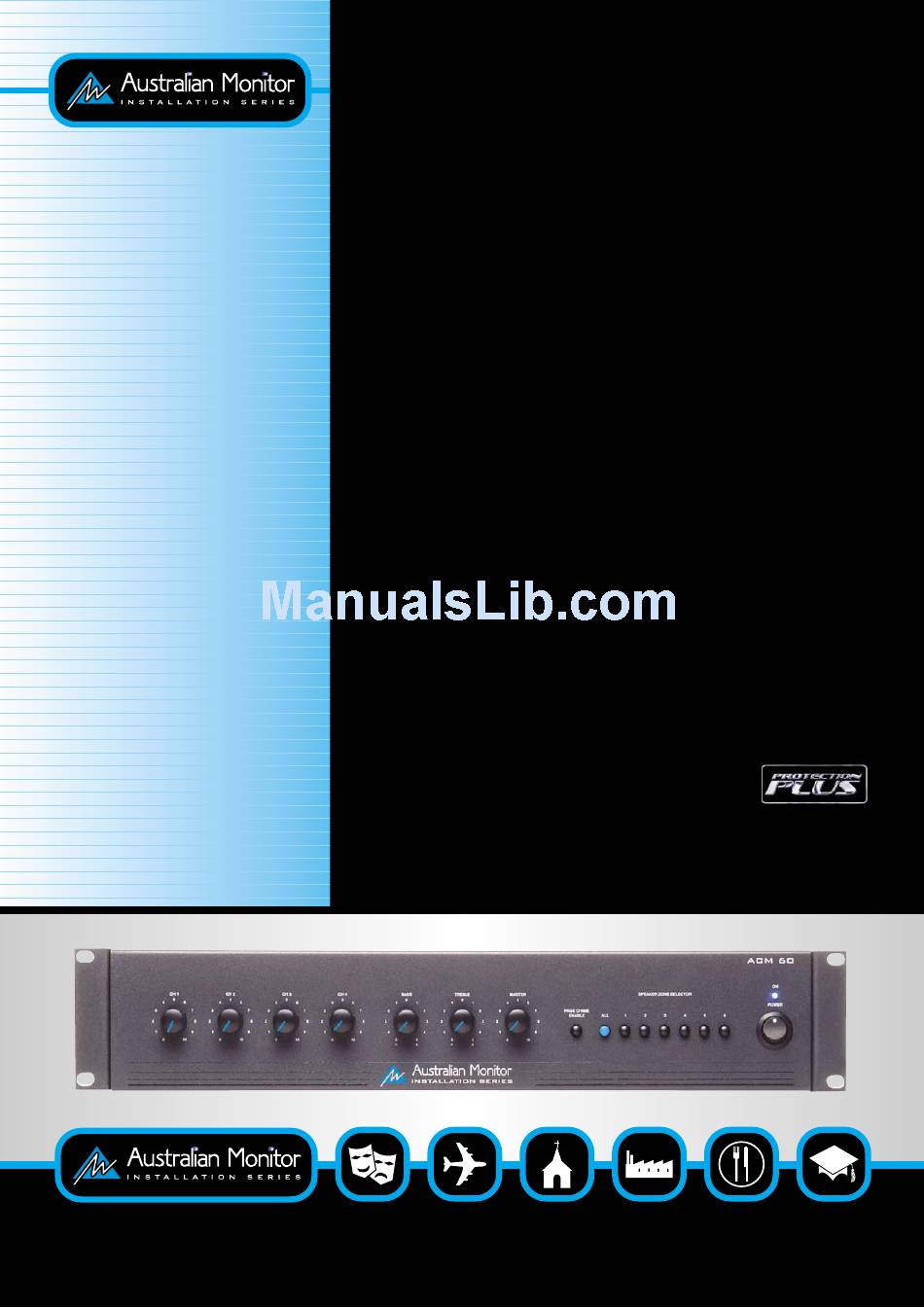

AUSTRALIAN MONITOR ACM60 Specification

ACM60
60W, 4 Channel Mixer Amplifier

Description

The ACM60 is a 4 channel, 60 watt mixer amplifier suitable for rack or desk mounting. The
amplifier is a self contained compact unit of solid steel construction.
Inputs
The ACM60 has four universal input channels with separate level controls. Each channel will
accept balanced or unbalanced microphone, line and auxiliary inputs. The unit has industry
standard XLR microphone sockets and dual RCA auxiliary sockets for each channel. Line input
4 has a lower input sensitivity and is suitable for high level CD players.
Outputs
The ACM60 features 100 volt, 70 volt and 8 ohm isolated transformer outputs, plus a tape
recorder output by means of dual RCA sockets. A balanced 700mV XLR output is also provid-
ed to feed up to 6 power amplifiers.
Speaker Zone Selector
A six position push button speaker zone selector with overriding "all call" is located on the
front panel. Each of the six zone selectors switch the 100 volt speaker line output to 6 sepa-
rate speaker zones. The "all call" selector overrides all 6 zones regardless of their on/off con-
dition and places the 100 volt output to all 6 zones.
Tone Generator
The ACM60 comes standard with an in-built four tone generator module. Tones include Bell,
Pre-announce Chime, Alert Tone (AS2220.1) and Evacuate Tone (AS2220.1). Any of these
tones may be activated from a simple contact closure connected to the rear panel of the ampli-
fier. A Pre-announce defeat switch is located on the front panel.
Muting
VOX muting is standard on the ACM60. A mic or line signal on channels 1 or 2 will mute chan-
nels 3 and 4. The muting function can be disabled via an internal link.
Phantom Power
Phantom Power (18V DC) is available from all mic inputs. A rear panel phantom power on/off
switch is also provided.
Protection
Internal current limiting protects the amplifier from both overload and overdrive conditions.
Australian Monitor Installation Series amplifiers feature a protection network that provides
greater stability and performance. Our amplifiers are recognised
worldwide for their reliability and this is due to the extensive levels of
current limiting which protect the amplifiers from both overload and
overdrive conditions.
