AUSTRALIAN MONITOR ACM250P Specification

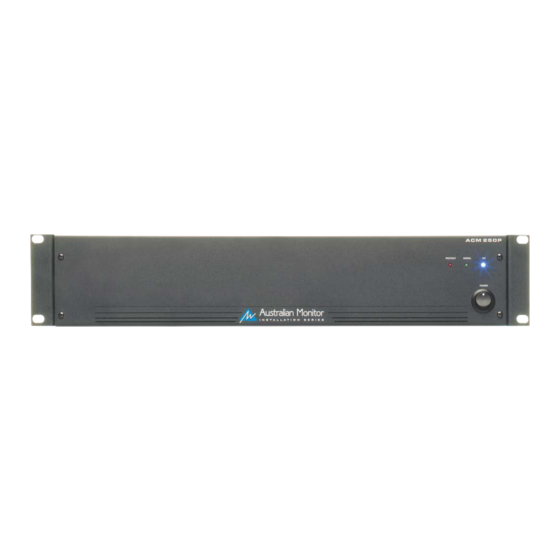

ACM250P
250W Power Amplifier
Description
The ACM250P is a 250 watt power amplifier with outputs for 4 ohms, 70 and 100 volt line. It
may be desk or rack mounted. The ACM250P features a flat screwdriver accessible gain con-
trol on the rear panel.
Inputs
The ACM250P features two signal inputs. The unit has industry standard 3 pin XLR microphone
sockets. Two line level sockets are provided for bridged in/out connection.
Outputs
The ACM250P features 100 volt, 70 volt and 4 ohm isolated transformer outputs.
Protection
Internal current limiting protects the amplifier from both overload and overdrive conditions.
The ACM250P also features protection in the form of excess temperature auto cut out. An in
built auto temperature sensing fan will turn on at a factory default level but in most situations,
will never be required.
Australian Monitor Installation Series amplifiers feature a protection network that provides
greater stability and performance. Our amplifiers are recognised
worldwide for their reliability and this is due to the extensive levels of
current limiting which protect the amplifiers from both overload and
overdrive conditions.
