© Panduit Corp. 2017
READ ALL INSTRUCTIONS COMPLETELY BEFORE PROCEEDING
CONNECTOR ASSEMBLY
SIMPLEX
FLCSMCXAQY
FLCSMC5BLY
FLCSMC6BLY
FLCSSCBUY
DUPLEX
FLCDMCXAQY
FLCDMC5BLY
FLCDMC6BLY
FLCDSCBUY
Table 1
Standard LC OptiCam Connectors*
Backbone
Boot
Fiber Type
Color
Color
10Gig 50µm
Aqua
Aqua
50µm
Black
Black
62.5µm
Electric Ivory
Black
Singlemode
Blue
*Part numbers shown above
ITEMS REQUIRED FOR TERMINATION
ITEM
PART NUMBER
1
OCTT
2
FLCC
3
FVFLPC-1.25SMY
4
CST-115
5
FALC
6
FBFSP
7
FJQCVR
8
FGLS
9
FKS
10
FSTY
11
FSWB-C
12
FWP-C
13
PFX-0
14
--
OPTIONAL
FS115**
OPTIONAL
FJQCVRB
**Denotes revision letter.
For Technical Support: www.panduit.com/resources/install_maintain.asp
Part Numbers: FLCSMCXAQY, FLCDMCXAQY, FLCSMC5BLY, FLCSSCBUY,
Keyed Part Numbers: SEE TABLE BELOW
INSTALLATION INSTRUCTIONS
COMPONENT IDENTIFICATION
Connector Body
Dust Cap
Key Type - Backbone Color
Multimode Part Numbers
Singlemode Part Numbers
Key Type - Backbone Color
Multimode Part Numbers
Singlemode Part Numbers
Blue
Key Type - Backbone Color
Multimode Part Numbers
Singlemode Part Numbers
‡
For duplex connectors, replace the first S in the part number (FLCSSCABL) with a D (FLCDSCABL).
^Substitute for multimode fiber type: 6 = 62.5/125µm OM1, 5 = 50/125µm OM2, or X = 10Gig 50/125µm OM3.
DESCRIPTION
OptiCam Termination Tool
LC Cradle for OptiCam Termination Tool (OCTT)
1.25mm Universal Patch Cord for OptiCam Termination Tool (OCTT)
Fiber Cable Jacket Stripper
Alcohol Bottle (empty)
Fiber Buffer Stripper
Fiber Cleaver Tool
Safety Glasses
Fiber Kevlar Shears
Fiber Safety Tab Stickers for fiber scraps
Cleaning Swabs
Lint-Free Wipes
Fine-Tip Marking Pen
Isopropyl Alcohol (Reagent Grade, 90% minimum concentration; not available from Panduit)
LC OptiCam Connector Stripping Template
Replacement Blade for Fiber Cleaver

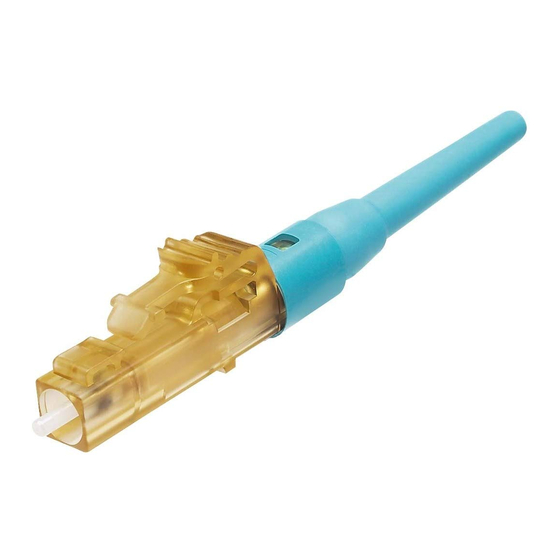

LC OptiCam
Fiber Optic Connectors
FLCDMC5BLY, FLCSMC6BLY, FLCDMC6BLY, FLCDSCBUY
900µm Buffered Boot
Duplex Clip
Keyed LC OptiCam Simplex Connector Part Numbers
A - Black
B - Red
FLCSMC^ABL
FLCSMC^BRD FLCSMC^CGR FLCSMC^DYL FLCSMC^EOR FLCSMC^FDB
FLCSSCABL
FLCSSCBRD
G - Violet
H - Aqua
FLCSMC^GVL
FLCSMC^HAQ FLCSMC^JRO FLCSMC^KIG FLCSMC^LLB FLCSMC^PWT
FLCSSCGVL
FLCSSCHAQ
Q - Charcoal
R - Lavender
FLCSMC^QCG
FLCSMC^RLV FLCSMC^SPE FLCSMC^TSB FLCSMC^VMA FLCSMC^WMI
FLCSSCQCG
FLCSSCRLV
Page 1 of 23
Backbone
Table 2
‡
and Configurations
C - Green
D - Yellow
FLCSSCCGR
FLCSSCDYL
J - Rose
K - Slate
FLCSSCJRO
FLCSSCKIG
S - Peach
T - Steel Blue
FLCSSCSPE
FLCSSCTSB
FS014C
Jacketed Boots
Available Separately
3.0mm Boot
FMCBT3AQ-X
FMCBT3BL-X
FSCBT3BU-X
1.6 - 2.0mm Boot
FMCBT2AQ-X
FMCBT2BL-X
FSCBT2BU-X
E - Orange
F - Dark Blue
FLCSSCEOR
FLCSSCFDB
L - Brown
P - White
FLCSSCLLB
FLCSSCPWT
V - Maroon
W - Mint
FLCSSCVMA
FLCSSCWMI
Advertisement
Related Manuals for Panduit FLCDSCBUY
Summarization of Contents
Component Identification
Connector Assembly
Identifies simplex and duplex connector assemblies.
Items Required for Termination
Lists tools and parts needed for fiber termination.
Safety Precautions
Safety Glasses
Recommends wearing safety glasses to protect eyes from sharp fiber.
Isopropyl Alcohol Hazards
Details flammability and irritation risks associated with isopropyl alcohol use.
Bare Fiber Disposal
Provides guidelines for safe handling and disposal of sharp fiber pieces to prevent injury.
Laser Light Safety
Warns against direct laser viewing and use of optical instruments to avoid eye hazards.
Fiber Optic Cable Handling
Advises on preventing damage to fiber optic cable from excessive stress.
250µm Coated Fiber Termination with Build-up Tube
Patch Cord and Cradle Setup
Connects VFL patch cord and inserts connector cradle into OCTT.
Connector and Ferrule Attachment
Inserts connector into cradle and attaches VFL patch cord to ferrule.
Fiber Stripping and Cleaving
Strips the 250µm fiber coating and cleaves it to the correct length.
Fiber Insertion and Clamping
Inserts cleaved fiber into connector and clamps cable.
Laser Activation
Turns on the OCTT laser for termination verification.
Connector Camming and Disassembly
Cams the connector, turns off laser, unclams cable, and removes connector.
Connector and Boot Assembly
Attaches the connector boot onto the backbone.
Duplex Clipping and Re-Termination
Attaches duplex clip and describes re-termination procedure.
250µm Coated Fiber Termination using Opticom Fanout Kit
Patch Cord and Cradle Setup
Connects VFL patch cord and inserts connector cradle into OCTT.
Connector and Ferrule Attachment
Inserts connector into cradle and attaches VFL patch cord to ferrule.
Fanout Kit Installation and Fiber Stripping
Installs fanout kit and strips the 250µm fiber buffer.
Fiber Cleaving
Cleaves the stripped fiber for the fanout kit termination.
Fiber Insertion and Clamping
Inserts cleaved fiber into connector and clamps cable.
Laser Activation
Turns on the OCTT laser for termination verification.
Connector Camming and Disassembly
Cams connector, turns off laser, unclams, removes connector.
Connector and Boot Assembly
Assembles the connector boot onto the backbone.
Duplex Clipping and Re-Termination
Attaches duplex clip and describes re-termination procedure.
900µm Tight-Buffered Fiber Termination
Patch Cord and Cradle Setup
Connects VFL patch cord and inserts connector cradle into OCTT.
Connector and Ferrule Attachment
Inserts connector into cradle and attaches VFL patch cord to ferrule.
Fiber Stripping and Cleaving
Strips the 900µm fiber buffer and cleaves it.
Fiber Insertion and Clamping
Inserts cleaved fiber into connector and clamps cable.
Laser Activation
Turns on the OCTT laser for termination verification.
Connector Camming and Disassembly
Cams connector, turns off laser, unclams, removes connector.
Connector and Boot Assembly
Assembles the connector boot onto the backbone.
Duplex Clipping and Re-Termination
Attaches duplex clip and describes re-termination procedure.
Jacketed Cable Termination
Patch Cord and Cradle Setup
Connects VFL patch cord and inserts connector cradle into OCTT.
Connector and Ferrule Attachment
Inserts connector into cradle and attaches VFL patch cord to ferrule.
Jacket Stripping and Fiber Cleaving
Strips jacket and buffer, then cleaves the fiber.
Fiber Insertion and Mark Check
Inserts fiber into connector and checks buffer length mark.
Cable Clamping and Connector Camming
Clamps cable, turns on laser, cams connector.
Laser Off and Disassembly
Turns off laser, unclams cable, removes connector.
Connector and Boot Assembly
Assembles the connector boot onto the backbone.
Duplex Clipping and Re-Termination
Attaches duplex clip and describes re-termination procedure.
