© Panduit Corp. 2012
READ ALL INSTRUCTIONS COMPLETELY BEFORE PROCEEDING
CONNECTOR ASSEMBLY
SIMPLEX
FLCSHMIG
DUPLEX
FLCDHMIG
ITEMS REQUIRED FOR TERMINATION
ITEM
PART NUMBER
1
PCF-LCCLT
2
FG26954A01
3
CJAST
4
DCET010
5
FCRP5
6
FWP-C
7
--
8
FSTY
9
FG26948A01
10
FG26995A01
TABLE OF CONTENTS
Safety Precautions
2.2mm Jacketed Cable Termination Instructions
Cleave Tool Cleaning and Maintenance
Buffer Stripper Cleaning and Maintenance
For Technical Support: www.panduit.com/resources/install_maintain.asp

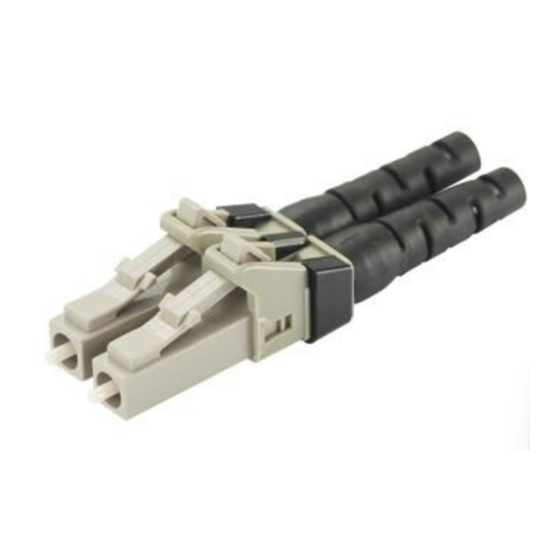

LC Crimp & Cleave Fiber Optic Connectors for
2.2mm Jacketed Polymer Coated Fiber (PCF) Cable
INSTALLATION INSTRUCTIONS

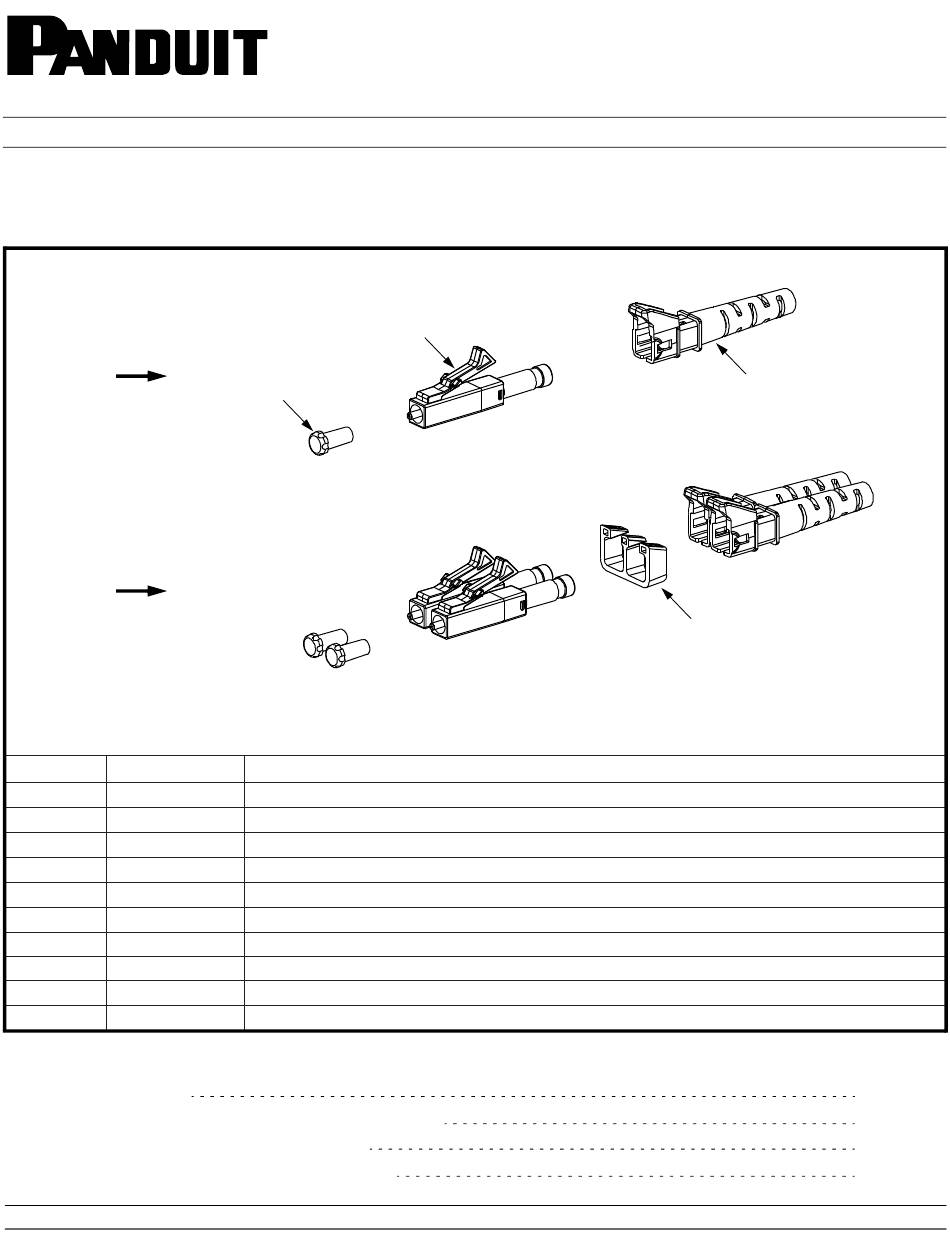

COMPONENT IDENTIFICATION
PCF LC
Connector
Dust Cap
DESCRIPTION
PCF LC Cleave Tool
Fiber Jacket Stripper
Cable Jacket Stripping Tool (Ring Cutter for Breakout Cable)
Fiber Cable Scissors
Crimp Tool (with 0.128" hex die)
Lint-Free Wipes
Isopropyl Alcohol (Reagent Grade, 90% minimum concentration, not available from Panduit)
Fiber Safety Tab Stickers (for fiber scraps and endface cleaning)
Fiber Buffer Stripper
Fiber Conditioning Rod
Part Numbers: FLCSHMIG, FLCDHMIG
Page 1 of 7
Boot Assembly
Duplex Clip
FS036B
Page(s)
2
3 - 5
6
7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Panduit FLCSHMIG
Summary of Contents for Panduit FLCSHMIG
- Page 1 Fiber Cable Scissors FCRP5 Crimp Tool (with 0.128" hex die) FWP-C Lint-Free Wipes Isopropyl Alcohol (Reagent Grade, 90% minimum concentration, not available from Panduit) FSTY Fiber Safety Tab Stickers (for fiber scraps and endface cleaning) FG26948A01 Fiber Buffer Stripper FG26995A01...
- Page 2 INSTALLATION INSTRUCTIONS FS036B © Panduit Corp. 2012 SAFETY PRECAUTIONS 1. SAFETY GLASSES WARNING: IT IS STRONGLY RECOMMENDED THAT SAFETY GLASSES BE WORN WHEN HANDLING BARE OPTICAL FIBER. THE BARE FIBER IS VERY SHARP AND CAN EASILY DAMAGE THE EYE. 2. ISOPROPYL ALCOHOL WARNING: ISOPROPYL ALCOHOL IS FLAMMABLE.
- Page 3 INSTALLATION INSTRUCTIONS FS036B © Panduit Corp. 2012 2.2mm Jacketed PCF Cable Termination Load Connector into Crimp Tool Remove Dust Cap 1.1.1 Remove dust cap from PCF LC Connector. 0.128" hex die Load / Orient Connector 1.2.1 Orient connector with connector latch in upward position Orient as shown.
- Page 4 INSTALLATION INSTRUCTIONS FS036B © Panduit Corp. 2012 Clean Fiber 2.5.1 Clean polymer coated fiber using an isopropyl alcohol soaked lint-free wipe. Note: To avoid contamination, DO NOT touch fiber after cleaning. Avoiding contact with the fiber will prevent finger oils from contaminating the glass fiber and eventually the gripper pads.
- Page 5 INSTALLATION INSTRUCTIONS FS036B © Panduit Corp. 2012 Cleave Fiber 4.2.1 DO NOT hold connector during cleave. To prevent fiber Connector protrusions, refrain from holding the latched connector Lever latch during the cleave process. DO NOT pull on the cable or let cable weight pull on the connector.
- Page 6 5.2.1 The gripper pad material is a wear item on the tool. Over time a noticeable groove wears into the pad material where it grabs onto the glass fiber. When this groove is visible, the pads need to be replaced. Send tool to Panduit for service. Diamond blade Clean the diamond blade 5.3.1 Clean diamond blade with swab moistened with cleaning...
- Page 7 INSTALLATION INSTRUCTIONS FS036B © Panduit Corp. 2012 Buffer Stripper Cleaning and Maintenance Buffer Stripper Blade Replacement Remove installed blades 6.1.1 Using flat end of push tool, remove fiber guide lock by pushing out from the back side of tool head.
