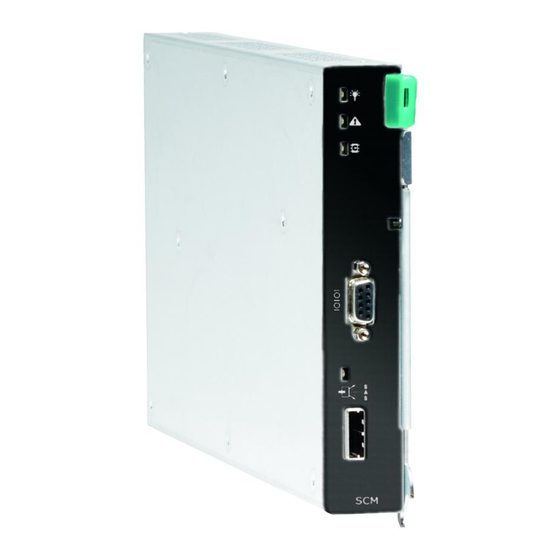

- Page 1 Backup Battery Kit Install Guide: Intel® Storage Controller AXXSCM3S ® A Guide for Technically Qualified Assemblers of Intel Identified Subassemblies/ Products Intel Order Number: E13860-004...
- Page 2 Intel products are not designed, intended or authorized for use in any medical, life saving, or life sustaining applications or for any other application in which the failure of the Intel product could create a situation where personal injury or death may occur.
-
Page 3: Safety Information
Safety Information Important Safety Instructions Read all caution and safety statements in this document before performing any of the instructions. See also Intel Server Boards and Server Chassis Safety Information on the ® Intel Server Deployment Toolkit CD and/or at: http://support.intel.com/support/motherboards/server/sb/cs-010770.htm... -
Page 4: Warnings
Take care to grip with, but not squeeze, the pliers or other tool you use to remove a jumper, or you may bend or break the pins on the board. Backup Battery Kit Install Guide: Intel® Storage Controller AXXSCM3S... -
Page 5: Table Of Contents
Remove Top Cover from Storage Controller ................3 Remove Old Backup Battery ...................... 4 Install New Backup Battery ......................5 Re-install Top Cover ........................5 Install Storage Controller in System ................... 6 Backup Battery Kit Install Guide: Intel® Storage Controller AXXSCM3S... - Page 6 Backup Battery Kit Install Guide: Intel® Storage Controller AXXSCM3S...
-
Page 7: Backup Battery Kit Install Guide
Backup Battery Kit Installation Instructions Prepare System 1. Read all caution and safety statements listed in this document before performing any of the steps. See the Intel® Server Boards and Server Chassis Safety Information document at http://support.intel.com/support/motherboards/server/sb/cs-010770.htm for a complete listing of all caution and safety statements. -
Page 8: Remove Storage Controller From System
“B”) and pull the storage controller straight out the back of the chassis (see letter “C”). Warning: You must replace the storage controller with a filler panel or another temporary storage controller within two minutes. AF002430 Figure 1. Removing Storage Controller from System Backup Battery Kit Install Guide: Intel® Storage Controller AXXSCM3S... -
Page 9: Remove Top Cover From Storage Controller
(see letter “A” in the following figure). Slide top cover towards rear of storage controller (see letter “B”) and lift upward to remove (see letter “C”). AF002563 Figure 2. Removing Top Cover from Storage Controller Backup Battery Kit Install Guide: Intel® Storage Controller AXXSCM3S... -
Page 10: Remove Old Backup Battery
5. Disconnect battery cable from battery connector on the printed circuit board (see letter “A” in the following figure). Remove old backup battery from black plastic battery holder (see letter “B”). AF002469 Figure 3. Removing Old Backup Battery Backup Battery Kit Install Guide: Intel® Storage Controller AXXSCM3S... -
Page 11: Install New Backup Battery
7. Align notches in top cover with corresponding tabs on storage controller. Slide top cover forward to close. 8. Secure top cover to storage controller with the single screw previously removed. Backup Battery Kit Install Guide: Intel® Storage Controller AXXSCM3S... -
Page 12: Install Storage Controller In System
Slide the storage controller into the module bay (see letter “B”) until the bottom of the retention lever engages with the module bay. AF002412 Figure 5. Re-installing Storage Controller in System Backup Battery Kit Install Guide: Intel® Storage Controller AXXSCM3S...
