Pressure Modulator Valve (PMV)
Troubleshooting
Follow the steps listed below to locate and correct ABS
modulator valve problems.
1. Access active trouble code(s) using either the Blink
Code procedure or the hand-held tester procedure.
2. Lookup the code description, the possible causes and
the repair procedures provided in this section.
3. Perform the recommended repair procedures.
4. After the repairs are completed, clear all codes and
check for any additional codes.
Twist-Lock
Connector
Threaded
Connector
Looking Into Valve

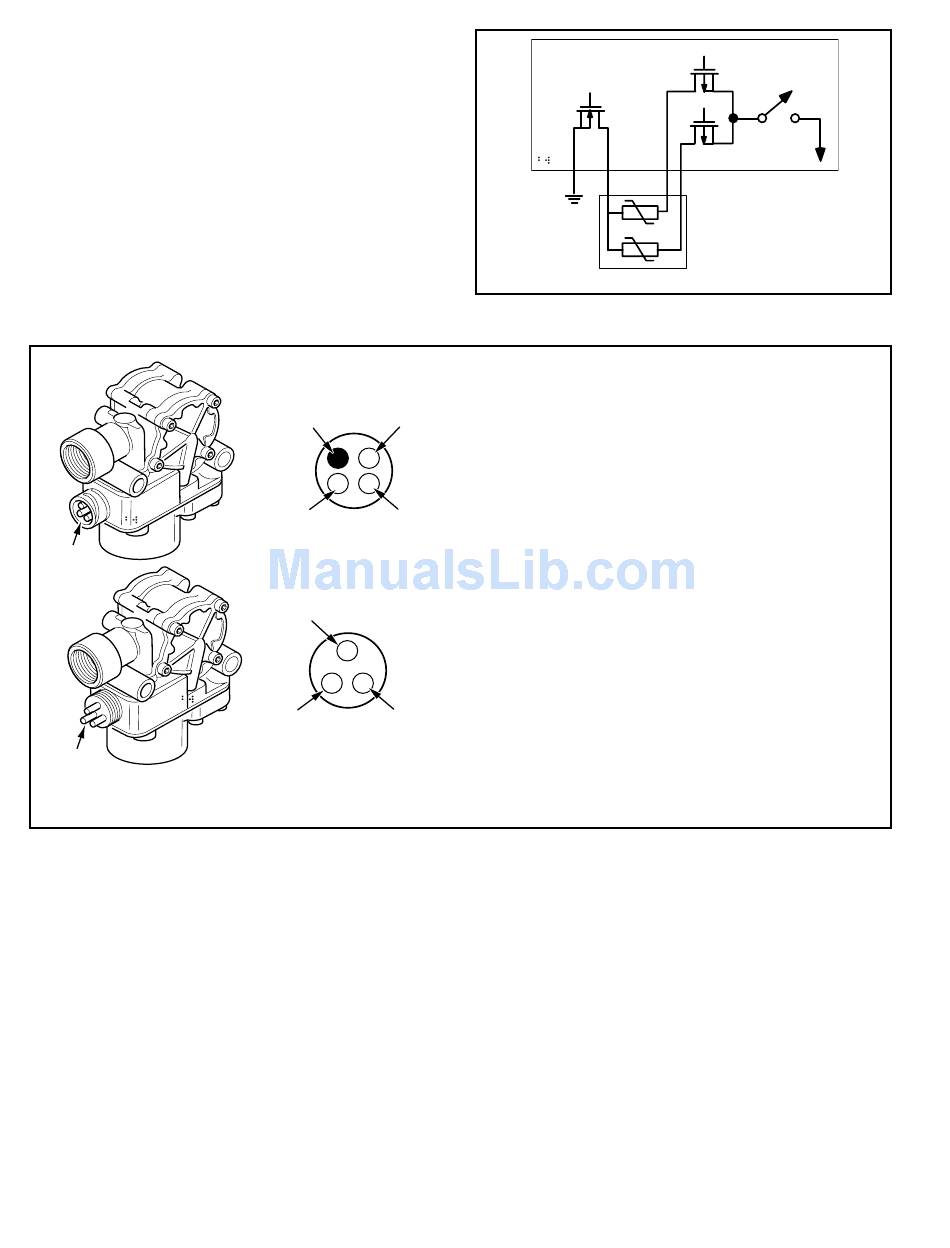

FIGURE 30 - PMV Harness Circuit Descriptions and Resistance Test
30
No
Release
Connection
1
2
3
Hold
Common
Twist-Lock Connector
Common
1
3
2
Release
Hold
Threaded Connector
ECU
FIGURE 29 - Typical PMV Circuit
Measure
Measure
From:
To:
Common
Hold
Common
Release
HoldRelease 6-16 Ohms
PMV Resistance Test
Measure resistance at the PMV location
to check the valve.
Measure resistance at the appropriate
ECU harness connector pins to check
the cable and valve.
Note: Refer to the chart for pin
identification.
Relay
Valve
Resistance
Range:
3-8 Ohms
3-8 Ohms
