Single anchor pin cam brake

Advertisement

Quick Links

®
Bendix
Single Anchor Pin Cam Brake
®

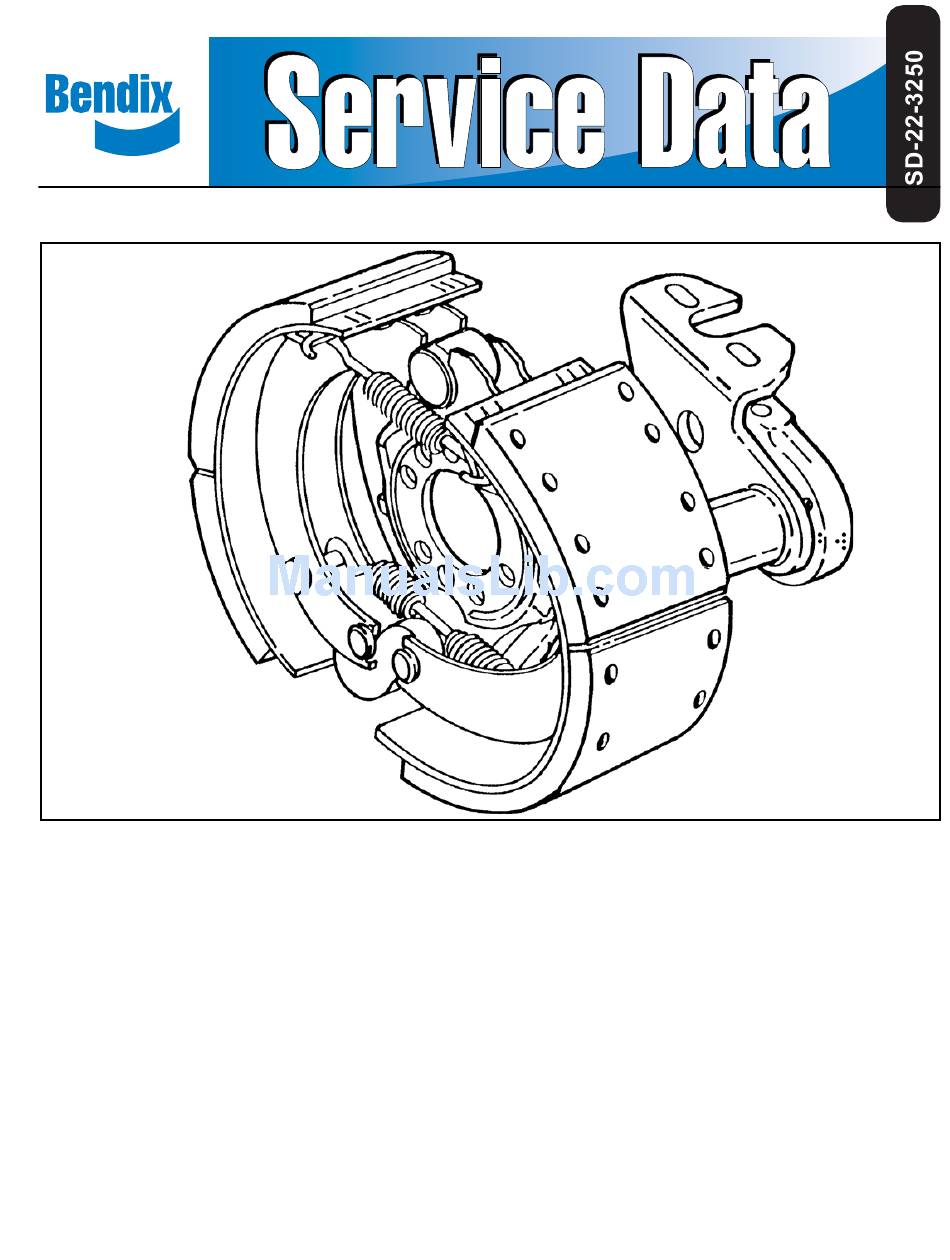

FIGURE 1

GENERAL DESCRIPTION

The Bendix
15" x 4" single anchor pin cam brake is designed
®
for use on heavy duty highway vehicles. It is a mechanically
actuated, leading/trailing shoe brake with a fixed position
cam and anchor.
The brake consists of two fabricated steel shoe assemblies
anchored to a cast iron torque spider and actuated by a
single forged S-cam shaft. Two retaining springs secure
the shoe assemblies to the anchor pin. The twin webs of
each shoe assembly are keyed to the anchor pin on one
end and the cam roller on the other. A single shoe to shoe
return spring is used to maintain constant contact between
the shoe, cam roller and cam.

OPERATION

The Bendix
cam brake operates in the following manner
®
during a braking application. The force of the push rod of
the actuator is converted from a linear force to a rotary
torque. This is accomplished by use of the slack adjuster.
This torque is transferred to the cam shaft of the foundation
brake due to the spline of the cam shaft being connected to
the gear of the slack adjuster. On the opposite end of the
cam shaft is the S-cam which when rotated lifts the cam
rollers. This spreads the brake shoe ends apart equally
and pivots the shoes about the anchor pin so the brake
lining comes in contact with the rotating brake drum. The
friction created by the lining pressure against the drum
generates the torque necessary to provide a retarding force
to slow down the vehicle. The energy of the vehicle in motion
is converted to heat at the surface of the drum and lining.
This heat raises the temperature of the drum. The heat is
stored in the drum, and finally dissipated to the air.
1

Advertisement

Table of Contents
loading

Summary of Contents for BENDIX SINGLE ANCHOR PIN CAM BRAKE

  • Page 1 GENERAL DESCRIPTION during a braking application. The force of the push rod of The Bendix 15" x 4" single anchor pin cam brake is designed ® the actuator is converted from a linear force to a rotary for use on heavy duty highway vehicles. It is a mechanically torque.
  • Page 2 FIGURE 2 - 15” SINGLE ANCHOR PIN S-CAM BRAKE Key No. Description Qty. Key No. Description Qty. Snap ring Anchor pin Spacer washers # +reqd. S-Cam shaft Yoke pin Shoe return spring Slack adjuster Anchor spring Yoke Spider Cotter pin Dust shield Washer Rubber inspection plug...
  • Page 3 For complete procedures. Use only the proper tools and observe adjustment information, see Bendix Service Data sheet all precautions pertaining to use of those tools. SD-05-1. 4. If the work is being performed on the vehicle’s air...
  • Page 4 FIGURE 4 - REMOVING SHOE RETURN SPRING FIGURE 6 - REMOVING SLACK ADJUSTER FIGURE 7 - REMOVING ACTUATOR BRACKET FIGURE 5 - REMOVING SHOES 10. Prior to returning the vehicle to service, make 5. Turn the slack adjuster adjusting screw in the opposite certain all components and systems are restored to direction used to adjust the brakes until the cam rollers their proper operating condition.
  • Page 5 B. Inspect cam shaft bushing for signs of wear. Bearing 2. Remove shoe return spring and discard. Force shoes surfaces should be smooth and free of any pitting or towards the S-cam to relieve spring tension. (Figure 4) fractures. Insert cam shaft and measure looseness 3.
  • Page 6 4. Install the actuator bracket and cam tube onto the spider A. Consult manufacturer’s service information. (For using four cap screws and lockwashers. Torque to 70-80 information on Bendix Automatic Slack Adjusters, ft. lbs. Secure the actuator to the bracket using the two see Service Data sheet SD-05-1200, formerly nuts and washers.
  • Page 7 8. Install the anchor pin into the spider. Center the anchor Rust often develops on the surface of the shoe table under pin in the spider so it protrudes equally from each side. the brake lining or blocks. In addition, scale may form from salt on the highways, or tar and oil may find their way into 9.
  • Page 8 Some brake failures result from the use of rivets which are too short, too long, or the wrong diameter. Incorrect setting of the riveting machine may induce other types of failures. The correct length rivet must be selected for each application. A variation in shoe table thickness may require a different length rivet.
  • Page 9 BRAKE SHOE AND LINING TROUBLESHOOTING CHART SYMPTOM CAUSE REMEDY 1. Poor lining to drum A. Bell-mouth drum. A. Replace part. contact. B. Bent brake spider. B. Replace part. C. Bent or stretched brake shoe. C. Replace part. D. Undersize linings. D.
  • Page 10 E. Improper friction materials for duty E. Consult vehicle manufacturer. cycle of vehicle. F. Overworked brake. F. Check for proper brake balance. (Ref; Bendix procedure to check out system.) G. Driver abuse. G. Correct as required. Wrong drum, too light.
  • Page 12 BW1458 © 2004 Bendix Commercial Vehicle Systems LLC. All rights reserved. 6/2004 Printed in U.S.A.
