Test Equipment

Bendix recommends the use of the following products to
troubleshoot the ABS system:
• A multimeter or digital volt-ohmmeter (DVOM).
• Eaton ServiceRanger PC software or an MPSI ProLink
hand-held tester.
Multimeter
A multimeter can be used to check:
• Speed sensor circuit resistance.
• PMV and ATC valve solenoid resistances.
• ABS power circuit voltages.
• Engine data link voltages.
• Retarder control relay.
• Wiring harness diagnostic trouble codes.
Laptop PC
ServiceRanger
Software CD
1. Monitor Data
Wheel Speeds
Cut-Out Speeds
Input Voltages
Switch States

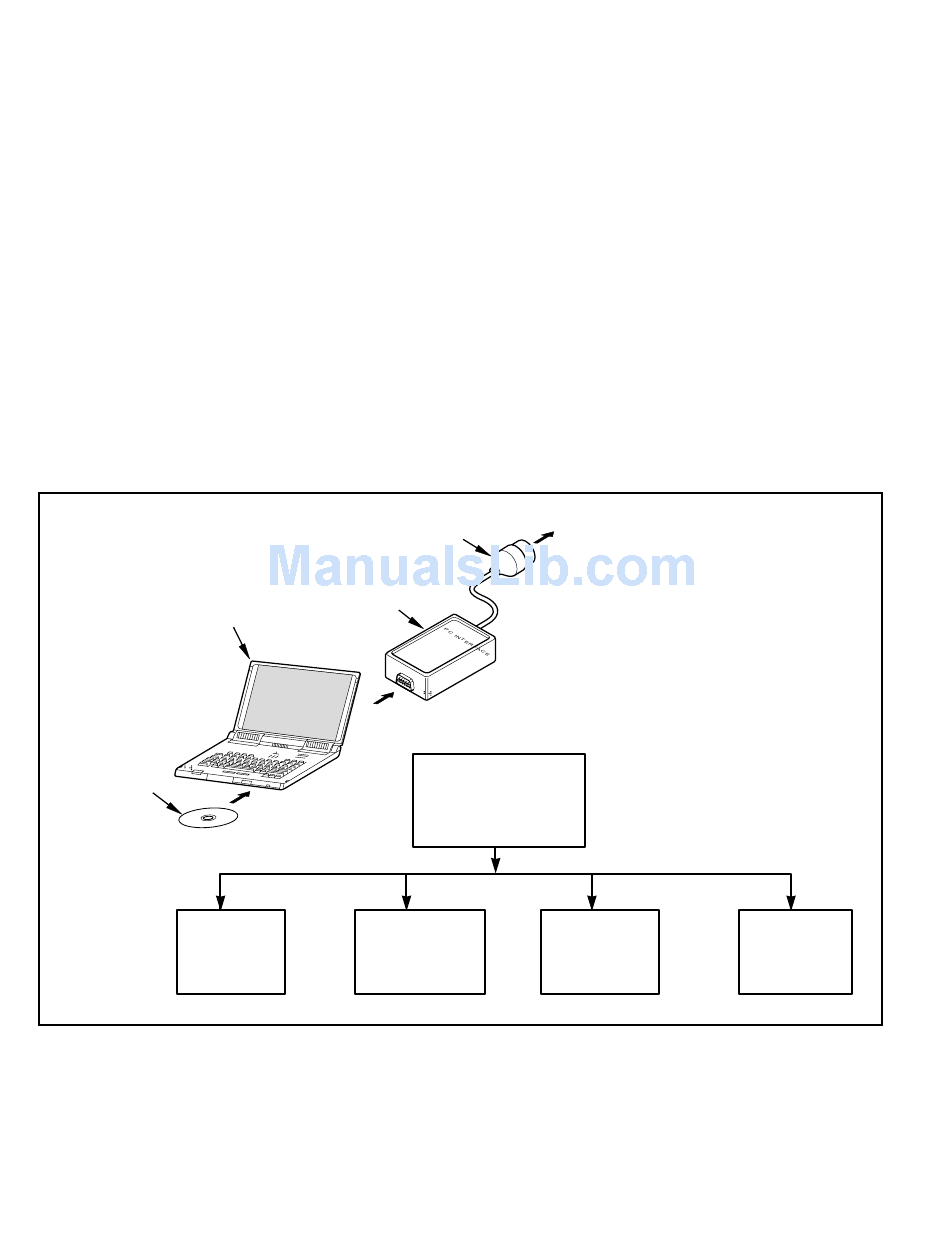

FIGURE 19 - ServiceRanger Menus & Hardware Setup
16

ServiceRanger PC Software

ServiceRanger PC software can be used to read and clear
error codes and obtain a short description of failures. The
software can initiate test sequences for controller outputs
and can also read system data such as voltage at the
®
ECU, wheel speeds and cutout speeds.
CAUTION: Eaton ServiceRanger PC software can activate
output tests for all output devices. Since these tests can
affect operation of the vehicle braking system, the ECU
incorporates special safety protection. One axle must
show zero speed or the test will be halted.
Deutsch HD-10
Connector
Serial Communicator
Interface
ServiceRanger Main Menu Options
1. Monitor Data
2. Retrieve Diagnostic Trouble Codes
3. Advanced Product Functions
4. Product Downloads
2. Retrieve Trouble Codes
Retrieve Trouble Codes
Clear Trouble Codes
To Diagnostic
Connector
3. Adv. Prod. Functions
Test Valves
Test Lights
Test Retarder Control
4. Product Downloads
Read ECU Configuration
Configure ECU
Disable ATC
