Hand-Held Tester
®
An MPSI ProLink hand-held tester with Bendix proprietary
cartridge can be used to read and clear error codes and
obtain a short description of failures. The tester can initiate
test sequences for controller outputs and can also read
system data such as voltage at the ECU, wheels speeds
and cutout speeds. A standard heavy duty truck cartridge
may also be used, but cannot initiate test sequences.
MPC™ Cartridge
Release
Button
Bendix
Applications Card
1. System INFO 2. Trouble Codes
Part No.
Date
Serial No.
Software No.
System Configuration
– ABS
– ATC
Steer Wheel Size
Rear Wheel Size
Rear-Rear Wheel Size
MIC Parameter

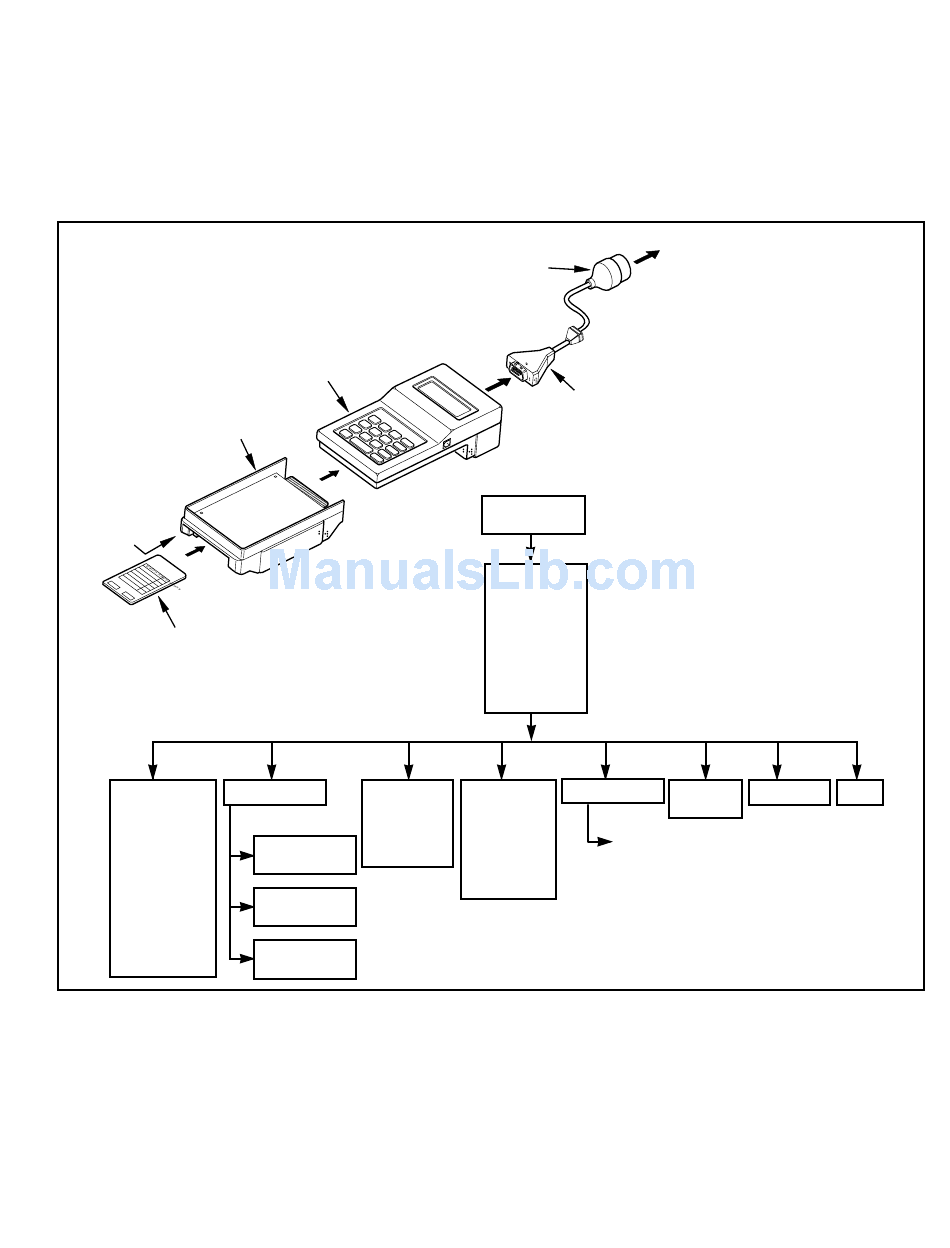

FIGURE 20 - Hand-Held Tester Menus and Set-Up
MPSI Pro-Link
®
3. Monitor Data
Wheel Speeds
Cut out Speeds
System Volts
Input Switches
Actual Trouble Codes
Extended Trouble
Codes
Clear Memory
CAUTION: The ProLink hand-held tester can activate
output tests for all output devices. Since these tests can
affect operation of the vehicle braking system, the ECU
incorporates special safety protection. One axle must show
zero speed or the test will be halted.
Deutsch HD-10
Connector
Diagnostic and
Power Cable
Eaton ABS
Press Enter
1. System INFO
2. Trouble codes
3. Monitor Data
4. Component Test
5. System Set-up
6. ATC Disable
7. English/Metric
8. Exit
4. Component Test 5. System Setup
Valve Routines
TCV
WL
System Config
TCL
RET
Interface
To
Diagnostic
Connector
6. ATC Disable 7. English/Metric
For Dyno Test
8. Exit
