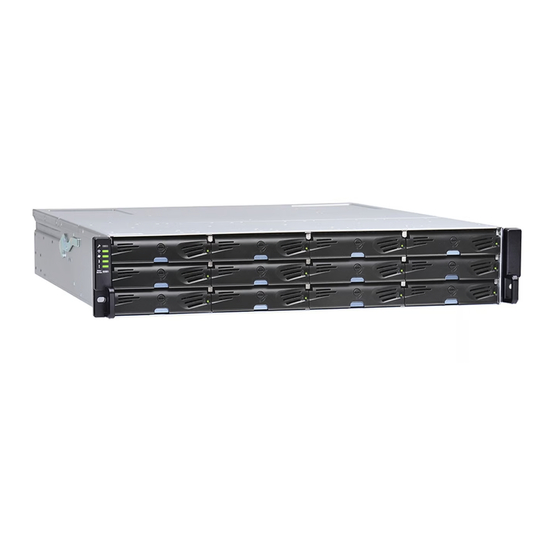

Infortrend EonStor DS 1012 Gen2 Hardware Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Infortrend EonStor DS 1000 Gen2 Series
Hardware Manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EonStor DS 1012 Gen2 and is the answer not in the manual?

Questions and answers

Related Manuals for Infortrend EonStor DS 1012 Gen2

Summary of Contents for Infortrend EonStor DS 1012 Gen2

  • Page 1 Infortrend EonStor DS 1000 Gen2 Series Hardware Manual Version 1.0...

  • Page 2: Legal Information

    Infortrend, shall be subject to the latest Standard Warranty Policy available on the Infortrend website: http://www.infortrend.com/global/Support/Warranty Infortrend may from time to time modify, update or upgrade the software, firmware or any accompanying user documentation without any prior notice. Infortrend will provide access to these new software, firmware or documentation releases from certain download sections of our website or through our service partners.

  • Page 3: Contact Information

    Customer Support Contact your system vendor or visit the following support sites.  EonStorDS Support Headquarters Infortrend Technology, Inc. (Taiwan) 8F, No. 102, Sec. 3, Jhongshan Rd., Jhonghe Dist., New Taipei City 235, Taiwan Tel: +886-2-2226-0126 Fax: +886-2-2226-0020 Email, Technical...

  • Page 4: Copyright Notice

    Infortrend, the Infortrend logo, SANWatch, ESVA, EonStor DS, EonNAS, and EonPath are registered trademarks of Infortrend Technology, Inc. Other names prefixed with “IFT” and “ES” are trademarks of Infortrend Technology, Inc.  Windows is a registered trademark of Microsoft Corporation.

  • Page 5: Safety Precautions

    Safety Precautions Safety Precautions Read these instructions carefully before you install, operate, or transport the EonStor DS storage system and expansion enclosures. Installation and Operation  Install the rack cabinet and the associated equipment at a site where the ambient temperature (special room cooling equipment may be required) stays lower than: a.

  • Page 6: Service And Maintenance

    The use of Infortrend certified components is strongly recommended to ensure compatibility, quality and normal operation with your Infortrend products. Please contact your distributor for a list of Infortrend certified components (eg. SFP, SFP+, HBA card, iSCSI cable, FC cable, memory module, etc.).

  • Page 7: Esd Precautions

    ESD Precautions ESD Precautions  Handle the modules by their retention screws, ejector levers, or the module’s metal frame/faceplate only. Avoid touching the PCB boards or connector pins.  Use a grounded wrist strap and an anti-static work pad to discharge static electricity when installing or operating the enclosure.

  • Page 8: About This Manual

    About This Manual The manual introduces hardware components of EonStor DS 1000 Gen2 series storage systems and expansion enclosures. It also describes how to install, monitor, and maintain them. For non-serviceable components, please contact our support site. Firmware operation: Consult the Firmware User Manual on the CD-ROM.

  • Page 9: Table Of Contents

    EonStor DS 1000 Gen2 Series Table of Contents Legal Information ....................2 Contact Information .................... 3 Copyright Notice ....................4 Safety Precautions ....................5 Installation and Operation ..................5 Service and Maintenance ..................6 Important Notice ....................... 6 ESD Precautions ...................... 7 About This Manual ....................
  • Page 10 Hardware Installation ..................32 Installation Prerequisites..................32 Installation Procedures Overview ................ 33 Unpacking the System ................... 34 Box Contents ......................34 Preinstalled Components ..................34 Components to be Installed..................34 Installing Hard Drive ....................35 Hard Drive Installation Prerequisites ................ 35 SAS Interface ......................
  • Page 11 EonStor DS 1000 Gen2 Series Power Connections ....................92 Checklist ........................92 Connecting Power Cords ..................93 Power On Procedure ....................93 Power On Status Check ................... 94 Power Off Procedure ....................95 System Monitoring .................... 96 Monitoring Features ....................96 LED Panel LEDs ......................
  • Page 12 Slide Rail Kit Installation Guide ..............138 Slide Rail Kits ....................... 138 Enclosure Installation Prerequisites ..............138 Unpacking the System ..................139 Component Installation Procedure ..............139 Tools Required ..................... 139 Rack Ear Mount Kit ....................140 Kit Contents ......................140 Installation Procedure.....................

  • Page 13: Introduction

    EonStor DS 1000 Gen2 Series Introduction Product Overview This manual introduces EonStor DS 1000 Gen2 systems that support 6Gbps, 12Gbps SAS or 6Gbps (SATA-III) drive interfaces. The 2U / 3U / 4U enclosure is designed to utilize 2.5” or 3.5” hard drives. Drive capacity can be expanded by attaching hard drive expansion enclosures.

  • Page 14: Model Variations

    Model Variations Comprised of storage system and expansion enclosure models, the storage systems store hard drives and control the entire storage system while expansion enclosures connect to a master storage system and can expand storage capacities by adding more hard drives. All systems are compatible with SAS-3 and SATA-III hard drives. However hard drive limitation(s) may vary model to model.

  • Page 15: Major Components

    Major Components NOTE Upon receiving your system, check the package contents against the included Unpacking List. If module(s) are missing, contact your system vendor immediately. The Cache Backup Module (CBM) is an optional feature in single controller systems. Controller and Interface Each controller comes with a pre-installed DIMM module.

  • Page 16: Power Supply Unit With Built-In Cooling Module

    Power Supply Unit with Built-in Cooling Module Two cooling modules built into the power supply unit (PSU) protect the system from overheating, and two hot-swappable PSUs provide constant power to the system. The modular nature of the system and the easy accessibility to all major components ensure ease of maintenance.

  • Page 17: The Rear Panel

    The Rear Panel Dual Controller Models Dual controller systems are indicated by an “R” in their model number (please refer Model Naming Conventions). Controller A is located on top and controller B at the bottom for dual controller models. In dual controller configuration, if one controller fails, the second controller module will take over in a manner that is transparent to application servers.

  • Page 18: Single-Controller Models

    Single-Controller Models Single-controller models are designated by a “G” in their model number. The second controller slot is filled with a dummy cage (D). Connection between Storage Systems and Expansion Enclosures The following rule applies when connecting storage systems and expansion enclosure(s): ...

  • Page 19: Chassis

    Chassis The storage system chassis is a rugged storage chassis divided into front and rear sections. The chassis is designed to be installed into a rack or cabinet. Front Panel Ex. 1: 3U / 16-bay Ex. 2: 2U / 24-bay, SFF ...
  • Page 20  Handles (5): There are handles on both sides of the enclosure for users to pull / push the enclosure out and into the cabinet when the enclosure is installed on a slide rail rackmount system.  Rackmount holes (6): There are two rackmount holes (one on each side of the enclosure) for users to secure the enclosure onto the cabinet.

  • Page 21: Rear Panel

    Rear Panel Description Description Controller A Power supply + cooling module Controller B or dummy cage  Controllers (1) / (2): Each controller module contains a main circuit board and a pre-installed DIMM module. For the single controller model, a dummy cage will be placed at the controller (2) position. The host port configurations will vary.

  • Page 22: Internal Backplane

    Internal Backplane An integrated backplane separates the front and rear sections of the chassis. This circuit board provides logic level signals and low voltage power paths. Thermal sensors and I C devices are embedded to detect system temperatures and PSU/cooling module operating status. This board contains no user-serviceable components.

  • Page 23: Front Panel Components

    Front Panel Components LED Panel The LED panel can be located on the chassis ear. The LED panel contains Service LED (1), a power supply status LED (2), cooling module status LED (3), temperature sensor status LED (4), System fault LED (5), Mute Service button (6), rotary ID switch (for expansion enclosure only) (7).

  • Page 24: Drive Tray Bezel

    Drive Tray Bezel 2.5 inch 3.5 inch The drive tray is designed to accommodate separately purchased SAS, NL-SAS or SATA interface hard disk drives. There is a rotary bezel lock (1) that secures the drive tray in chassis, while a release button (2) can be used when retrieving disk drives from the chassis.

  • Page 25: Rear Panel Components

    Rear Panel Components Designation Description Designation Description Cache backup module Ethernet management port Host ports SAS expansion port Restore default button Mini USB port (console port) Controller status LEDs The controller on the dual controller models also features a Cache Backup Module (CBM), consisting of a Battery Backup Unit (BBU) and Flash Backup Module (FBM).

  • Page 26: Cache Backup Module (Cbm)

    Cache Backup Module (CBM) The Cache Backup Module (CBM), located inside the controller, consists of a battery backup unit (BBU) (1) and flash backup module (FBM) (2). The CBM can sustain cache memory after a power failure. The use of a CBM is highly recommended in order to safeguard data integrity.

  • Page 27: Super Capacitor & Flash Backup Module

    Super Capacitor & Flash Backup Module The Super Capacitor (1) and flash backup module (2) can be located inside the controller and serves similar functions to a Cache Backup Module (CBM) described in the previous section. With the Super Capacitor, the cached data can be stored permanently in the flash backup module, in case of a power outage.

  • Page 28: Psu & Cooling Module

    PSU & Cooling Module The two redundant, hot-swappable PSU has a power socket (1), power switch (2), PSU status LED (3), cooling module (4), retention screw (5) and an extraction handle (6). The cooling modules can operate at three rotation speed settings. Under normal operating conditions, the cooling fans run at the low speed.

  • Page 29: System Monitoring Features

    System Monitoring Features There are a number of monitoring approaches that provide the operating status of individual components. Expansion Enclosure Support Monitoring: A managing storage system is aware of the status of expansion enclosure components including those of:  Expander controller (presence, voltage and thermal readings) ...

  • Page 30: I 2 C Bus

    speed of all cooling fans. Expansion Enclosure Status Monitoring: A storage system, when connected with expansion enclosures, acquires the component status within other enclosures via a proprietary enclosure monitoring service using the in-band connectivity. No additional management connection is required. C bus The detection circuitry and temperature sensors are interfaced through a non-user-serviceable I...

  • Page 31: Hot-Swapping

    Hot-swapping The system comes with a number of hot-swappable components that can be exchanged while the system is still online without affecting the operational integrity. These components should only be removed from the system when they are being replaced. The following components can be user-maintained and hot-swappable: ...

  • Page 32: Hardware Installation

    Hardware Installation This chapter describes how to install modular components, such as hard drives into the enclosure and CBM into the controller enclosure. NOTE Enclosure installation into a rack or cabinet should occur BEFORE hard drives are installed into the system. Installation Prerequisites Static-free installation environment: The system must be installed in a static-free environment to minimize the possibility of electrostatic discharge (ESD) damage.

  • Page 33: Installation Procedures Overview

    Make sure you are aware of the enclosure locations of each plug-in module and interface connector. Cables must be handled with care and must not be bent. To prevent emission interference within a rack system and accidental cable disconnection, the routing paths must be carefully planned.

  • Page 34: Unpacking The System

    Unpacking the System Compare the Unpacking List included in the shipping package against the actual package contents to confirm that all required materials have arrived. Box Contents For detail content(s), please refer to the unpacking list that came with the system. The accessory items include a serial port cable, screws, Quick Installation Guide, a CD containing the SANWatch management software and its manual and Firmware Operation Manual, and a product utility CD containing the Installation and...

  • Page 35: Installing Hard Drive

    Installing Hard Drive Installation of hard drives should only occur after the enclosure has been rack-mounted. Hard Drive Installation Prerequisites Hard drives are separately purchased and when purchasing hard drives, the following factors should be considered: Capacity (MB/GB): Use drives with the same capacity. RAID arrays use a “least-common-denominator”...
  • Page 36 MUX Board: Shown below, controller A (1) and controller B (2) is connected to the backplane (3). With a MUX board (4) paired to the hard drive (5), data signals is able to switch between controllers A and B signal ports (indicated by the blue arrow / dotted line). Under normal circumstances, controller B signal port is in standby mode (6).

  • Page 37: Sas Interface

    SAS Interface The SAS interface features a dual-ported connectivity with pins on both sides of its connector that include SAS primary links (1), power link (2) and underneath it, the SAS secondary links (3). The SATA drives have only one port that includes the SATA physical links (4) and the power link (5).

  • Page 38: Hard Drive Designation

    Hard Drive Designation Illustrations shown below are system hard drive slot number designations. Please familiarize yourself with the designations to avoid withdrawing the hard drive(s) out of the enclosure. 2U systems 3U systems 4U systems...

  • Page 39: Installing The Hard Drive Into Drive Tray

    Installing the Hard Drive into Drive Tray Open the bezel by pressing the release button and gently pull out the tray. 3.5 inch 2.5 inch Place the hard drive into the drive tray, making sure that the interface connector is facing the open side of the drive tray and its label side facing up.

  • Page 40: Installing The Hard Drive Tray Into The Enclosure

    Installing the Hard Drive Tray into the Enclosure Once the hard drives have been installed in the drive trays, install the drive trays into the system. WARNING Each drive slot must be populated with a tray even if it does not contain a hard drive. With a bay empty, air flow ventilation may be disrupted and the system will overheat.

  • Page 41: Installing Cbm

    Installing CBM The CBM consists of a battery backup unit (BBU) and flash backup module (FBM). The CBM can sustain cache memory in the event of a power failure or in the extremely unlikely event of both PSUs failing at the same time. The use of a CBM is highly recommended in order to safeguard data integrity.

  • Page 42: Flash Backup Module & Battery Backup Unit

    Flash Backup Module & Battery Backup Unit Please read the following sections on how to install the battery backup module and flash backup module into the controller module. Always place the controller on a clean, static-free surface and hold the controller only by its metal canister and never touch the circuit board or connector pins.
  • Page 43 Secure the SSD with the screw (shown in red). Be sure the SSD and the screw is fully attached to the controller.

  • Page 44: Battery Backup Unit (Bbu) Installation

    Battery Backup Unit (BBU) Installation 1. With the controller removed, remove the cover by removing the two screws (shown in blue). 2. Hold the battery cage at a 45 degree angle, make sure the cage sits and meets the screw holes. Secure it by using the supplied flathead screws.
  • Page 45 3. Secure the other end of the cage with flathead screws from underneath the controller, one on each side. 4. Gently insert the battery backup unit into the cage and secure it by using the thumb screw. Reinstall the controller.

  • Page 46: Super Capacitor & Flash Backup Module Installation

    Super Capacitor & Flash Backup Module Installation Please read the following sections on how to install the Super Capacitor & flash backup module into the controller. Always place the controller on a clean, static-free surface and hold the controller only by its metal canister and never touch the circuit board or connector pins.
  • Page 47 3. Make sure the screw holes meet while placing the SSD PCB board on the copper stands. Secure the PCB with screws provided. 4. Insert the SSD at a 45 degree angle, make sure the notch meets (indicated by blue circle).

  • Page 48: Installing The Super Capacitor

    Installing the Super Capacitor 1. With the controller removed, insert the Super Capacitor at a 45 degree angle. Make sure the protrusion is inserted into the slot (indicated by the blue circle / arrow). 2. Secure the Super Capacitor with a supplied screw (shown in blue) at the end.
  • Page 49 3. Connect the four-pin molex connector (shown in blue) to the SSD PCB board. Reinstall the controller.

  • Page 50: Installing The Controller

    Installing the Controller After completing the battery backup unit and flash backup module installation, the controller can be re-inserted into the enclosure: 1. Insert the controller slowly into the module slot. When you feel the contact resistance, use slightly more force and then push both of the ejection levers upwards (indicated by the blue arrows) to secure the controller into chassis.

  • Page 51: System Connection

    System Connection This chapter outlines the general configuration rules you should follow when cabling a storage system and introduces basic information about topologies. You can use these topologies or refer to them as a guide for developing your own unique topologies.

  • Page 52: Host-Side Topologies

     A spare drive should have a minimum capacity that is equivalent to the largest drive that it is expected to replace. If the capacity of the spare is less than the capacity of the drive it is expected to replace, the controller will not proceed with the failed drive rebuild.

  • Page 53: Maximum Concurrent Host Lun Connection ("Nexus" In Scsi)

    Maximum Concurrent Host LUN Connection (“Nexus” in SCSI) The "Max Number of Concurrent Host-LUN Connection" menu option is used to set the maximum number of concurrent host-LUN connections. Maximum concurrent host LUN connection (nexus in SCSI) is the arrangement of the controller internal resources for use with a number of the current host nexus.

  • Page 54: Maximum Queued I/O Count

    Maximum Queued I/O Count The "Maximum Queued I/O Count" menu option enables you to configure the maximum number of I/O operations per host channel that can be accepted from servers. The predefined range is from 1 to 1024 I/O operations per host channel, or you can choose the "Auto"...

  • Page 55: Fibre-Host Raid Connections

    Fibre-Host RAID Connections The Fibre Channel standard allows optical connections. Optical cables can be used over longer distances and have been shown to be more reliable. Due to the demands of high transfer rates, optical cables are preferred for 16/8/4Gbps fiber connectivity. Optical cables are also less susceptible to EMI.
  • Page 56 WARNING The SFP+ transceiver contains a laser diode featuring class 1 laser. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel. FC port dust plugs Each FC port comes with a dust plug.

  • Page 57: Fibre-Host Topologies

    Fibre-Host Topologies The Fibre Channel standard supports three (3) separate topologies. They are point-to-point, Fibre Channel Arbitrated Loop (FC-AL), and fabric switch topologies.  Point-to-Point: Point-to-point topology is the simplest topology. It is a direct connection between two (2) Fibre Channel devices. ...

  • Page 58: Fibre Cabling

    Fibre Cabling Following are steps that should be completed with cabling: Maintain a configuration plan. In addition to cabling topologies and list of networking components, the plan can also include firmware and software maintenance details. Confirm that you have a Fibre Channel cable that loops 6-inch or longer. Ensure proper airflow and keep cables away from ventilation airflow outlets.

  • Page 59: Simple End-To-End Connection

    Simple End-to-End Connection HBA 0 HBA 0 HBA 1 HBA 1 EonPath EonPath CH2 B113 CH0 B113 CH0 A112 CH2 A112 CH3 A112 CH3 B113 CH1 B113 CH1 A112 CH0 A112 CH0 B113 CH2 A112 CH2 B113 CH1 B113 CH1 A112 CH3 A112 CH3 B113 RAID...
  • Page 60 Channels Controller A Controller B 8G: CH0, CH1, CH2, 8G: CH0, CH1, CH2, Host 16G: CH0, CH1 16G: CH0, CH1 Configuration Information Controller Host server Data path connection Fault-tolerant data paths. Host channel bandwidth 6400 MB/s Above is an example demonstrating simple end-to-end connections with each SFP+ port connected to a host adapter.

  • Page 61: Das (Direct-Attached) Connection

    DAS (Direct-Attached) Connection NOTE If a logical drive can be accessed by different servers, file locking, FC switch zoning, port binding, and multipath access control will be necessary in order to avoid access contention. HBA 0 HBA 0 HBA 1 HBA 1 EonPath EonPath...
  • Page 62 Channels Controller A 8G: CH0, CH1, CH2, CH3 Host 16G: CH0, CH1 Configuration Information Controller Host server Simple end-to-end connections with Data path connection fault-tolerant pairs Host channel bandwidth 3200 MB/s With more disk drives over the SAS expansion links, you can create more logical groups of drives.

  • Page 63: Switched Fabric Connection (Dual-Controller)

    Switched Fabric Connection (Dual-Controller) NOTE A logical partition presented through LUN Mapping can be seen by all servers across SAN. Make sure you have access control such as file-locking, switch zoning, port binding, etc., to avoid access contention. HBA 0 HBA 1 HBA 0 HBA 1...
  • Page 64 16Gpbs Channels Controller A Controller B 8G: CH0, CH1, CH2, 8G: CH0, CH1, CH2, Host 16G: CH0, CH1 16G: CH0, CH1 Configuration Information Controller Host server 4 (or more via FC switches) FC switch 2 (or 1 into 2 zones) Data path connection Fault-tolerant paths Host channel bandwidth...
  • Page 65 configuration can withstand a failure of a single component, e.g., controller, HBA, cable, or FC switch. Each logical partition is redundantly mapped to multiple host channel IDs in an AAPP (Active-Active-Passive-Passive) configuration. Logical volumes are managed either by the controller A or by the controller B. The Passive IDs will only become functional when a single controller fails in the system.

  • Page 66: Switched Fabric Connection (Single-Controller)

    Switched Fabric Connection (Single-Controller) HBA 0 HBA 0 HBA 1 HBA 1 EonPath EonPath CH0 B114 CH1 B114 CH0 A112 CH1 A112 CH0 B113 CH1 B113 CH1 A115 CH0 A115 7 8 9 1011 12 7 8 9 1011 12 1 2 3 4 5 6 1 2 3 4 5 6 CH0 A112...
  • Page 67 16Gbps Channels Controller A 8G: CH0, CH1, CH2, CH3 Host 16G: CH0, CH1 Configuration Information Controller Host server Data paths are attached to one or more FC switches. SAN management measures, Data path connection such as switch zoning and port binding, should be taken to avoid multiple servers from accessing the same LUN.
  • Page 68 Each SFP+ port connected to FC switches and then to host adapters. See logical associations in the drawing for LUN mapping details. Use enclosure-specific spares to prevent a spare drive from participating in the rebuild of a logical drive on another enclosure. You can refer to the ID tags on the host links to see the related LUN mapping and cable links routing paths.

  • Page 69: Sas-Host Connections

    SAS-Host Connections NOTE Please consult your vendor or sales representative for compatible host link cables. One SFF-8644-to-SFF-8644 Mini-SAS HD cable is included per controller. You can contact your vendor to purchase additional cables if you need more than the included one.

  • Page 70: Das (Direct-Attached Storage) Connection With Redundant Host Path

    DAS (Direct-Attached Storage) Connection with Redundant Host Path Dual-controller models...
  • Page 71 Single-controller models With more hard drives over the SAS expansion links, you can create more logical groups of drives. Avail these logical partitions using more LUN numbers. NOTE EonPath multipath software or Linux Device Mapper is necessary for controlling and optimizing the access to logical drives via multiple data paths.

  • Page 72: Das (Direct-Attached Storage) Connection To Two Servers

    DAS (Direct-Attached Storage) Connection to Two Servers NOTE If you would like a LUN (a logical partition) to be accessed by multiple hosts, file locking or multipath access control will be necessary.

  • Page 73: Iscsi-Host Connections

    iSCSI-Host Connections Ethernet cable requirements:  Ethernet cables are user-supplied. Cat5e shielded STP type network cables or better performance types (important for meeting the requirements imposed by emission standards).  Straight-through Ethernet cables with RJ-45 plugs.  Use of cross-over cables can also be automatically detected and re-routed for a valid connection.

  • Page 74: Network & Host Connection Topologies

    Network & Host Connection Topologies The iSCSI host ports connect to Ethernet network devices and iSCSI initiators that comply with the IETF iSCSI standard (RFC 3720). Network connection of the iSCSI ports is flexible. The use of network connecting devices, subnet, Name Servers, or iSCSI management software can vary from case to case.

  • Page 75: High Availability Ip San With Redundant Controller

    High Availability IP SAN with Redundant Controller EonPath EonPath VLAN 1 VLAN 0 10 x 1 2x 1 0x 7 8 9 1 011 1 2 1 2 3 4 5 6 LD 0 LD 1 LD 2 LD 3 CH0 AID* CH1 AID* CH2 BID*...
  • Page 76 configuration using this configuration. For remote replication setup, please refer to “High Availability IP SAN “High Availability IP (Remote Replication Enabled) SAN with Port Trunk (Remote Replication Enabled)”. 4 logical drives (each has 4 member drives; for better performance, you can include drives from the expansion enclosure) LD0 mapped to CH0 AID and CH0 BID;...

  • Page 77: Single-Controller With Fault-Tolerant Path

    Single-Controller with Fault-Tolerant Path HBA 0 HBA 1 HBA 0 HBA 1 EonPath EonPath CH2 ID0 CH2 ID0 CH0 ID0 CH0 ID0 CH3 ID0 CH3 ID0 CH1 ID0 CH1 ID0 CH2 ID1 CH2 ID1 CH0 ID1 CH0 ID1 CH3 ID1 CH3 ID1 CH1 ID1 CH1 ID1...

  • Page 78: High Availability Ip San (Recommended Cabling Method For Remote Replication)

    High Availability IP SAN (Recommended Cabling Method for Remote Replication) EonPath EonPath VLAN 1 VLAN 0 10 x 11 x 1 2x 1 0 x 1 1x 12 x 7 8 9 1011 1 2 1 2 3 4 5 6 LD 0 LD 1 CH0 AID*...
  • Page 79 alternate paths to the same logical drive. 2 logical drives (each has 8 member drives). More logical drives can be created from drives in the expansion enclosure. LD0 mapped to CH0 AID, CH1 BID, CH2 AID and CH3 RAID configuration BID;...

  • Page 80: High Availability Ip San With Port Trunk (Remote Replication Enabled)

    High Availability IP SAN with Port Trunk (Remote Replication Enabled) EonPath EonPath VLAN 1 VLAN 0 10 x 11 x 1 2x 1 0 x 1 1x 12 x 7 8 9 1011 1 2 1 2 3 4 5 6 LD 0 LD 1 Ch0 AID...
  • Page 81 2 logical drives (each has 8 member drives). More logical drives can be created from drives in the expansion enclosure. LD0 mapped to CH0 AID and CH1 BID; LD has to be RAID assigned to both controllers A and B to enable configuration remote replication LD1 mapped to CH1 BID and CH0 AID;...

  • Page 82: Hybrid Host Connections

    Hybrid Host Connections For hybrid systems that feature two additional iSCSI ports, they can be used for remote replication or be used for host LUN mapping if users wish to do so. Single Hybrid Unit Connected to FC/iSCSI Hosts HBA 0 HBA 0 HBA 0 HBA 0...

  • Page 83: Utilizing Hybrid Iscsi Ports For Data Replication

    Utilizing Hybrid iSCSI ports for Data Replication HBA 0 HBA 0 HBA 0 HBA 0 HBA 1 HBA 1 HBA 1 HBA 1 EonPath EonPath EonPath EonPath FC #1 FC #2 iSCSI #1 iSCSI #2 The above diagram demonstrates how to utilize the iSCSI host ports for remote data replication.

  • Page 84: Expansion Enclosure Connections

    Expansion Enclosure Connections A SAS host link cable is included per expansion enclosure. If you need to purchase other cables or if you need other cable(s) of different length, please contact your vendor. The cable features include: 28AWG x 8 pair, 100ohm, black, UL approved, lead-free, 50cm, 120cm, or 170cm cable lengths, and connectors that can be secured to chassis using thumb screws or latching mechanism.

  • Page 85: Sas Expansion Enclosure Configuration

    SAS Expansion Enclosure Configuration The SAS expansion port connects to expansion enclosures. For dual-controller systems, each expansion port connects a controller to a corresponding expansion controller making fault-tolerant links to different SAS domains. The following principles apply to storage system and expansion enclosure connections: ...

  • Page 86: Configuration Rules

    Configuration Rules Following are the rules for connecting SAS interfaces across storage and expansion enclosures:  Fault-tolerant links in a dual-controller combinations: Corresponding to SAS drives’ dual-ported interface, two physical links are available from each disk drive, routed across the backplane board, each through a SAS expander, and then interfaced through a 4x wide external SAS port.
  • Page 87 that if many expansion enclosures are connected, a longer SAS external cable (e.g., a 120cm cable) may be necessary for connecting a expansion enclosure from the opposite direction offering high redundancy.  One expansion link connects expansion enclosures from the storage system to the nearest expansion enclosure, and then to the farthest one.

  • Page 88: Dual Controller Expansion Connection

    Dual Controller Expansion Connection • Storage system top SAS exp. -> 1st expansion enclosure top SAS-IN • 1st expansion enclosure top SAS-OUT -> 2nd expansion enclosure top SAS-IN • 1st expansion enclosure bottom SAS-OUT –> 2nd expansion enclosure bottom SAS-IN •...

  • Page 89: Single Controller Expansion Connections

    Single Controller Expansion Connections • Storage system SAS exp. –> 1st expansion enclosure SAS-OUT • 1st expansion enclosure SAS-IN –> 2nd expansion enclosure SAS-OUT...

  • Page 90: Management Console Connections

    Management Console Connections Designation Description Designation Description SANWatch / telnet console DB9 to mini USB CAT5e LAN cable SANWatch/ telnet console Local area network Connecting storage system to external consoles:  Serial port (mini USB): Use the cable supplied with the system to connect to mini USB port.
  • Page 91 The serial port’s defaults are: Baud Rate 38400 Data Bit Parity None Stop Bit Flow Control Hardware For TCP/IP connection and firewall configuration with a management station running SANWatch, please refer to SANWatch’s online help or User’s Manual. If your network environment is not running DHCP server protocols, a default IP, <10.10.1.1>...

  • Page 92: Power Connections

    Power Connections Once all hard drives have been properly installed and the I/O ports or management interfaces have been connected, the system can be powered on. Checklist BEFORE powering on the system, please check the following:  CBM: Make sure the CBM has been properly installed before powering-on the system.

  • Page 93: Connecting Power Cords

    Connecting Power Cords Use the included cables and connect them to the power sockets (in blue). Power On Procedure Before you power on the storage system, please power on the expansion enclosure first if your network configuration has multiple arrays. To power on the system please follow the procedures below.

  • Page 94: Power On Status Check

    Power On Status Check As a general rule, once the system has been powered on, there should NOT be LED(s) that light up amber nor should you hear an audible alarm from the system. You should begin verifying system statuses via the following monitoring interfaces: ...

  • Page 95: Power Off Procedure

    Power Off Procedure If you wish to power down the system, please follow these steps: NOTE If you wish to power down the system, please ensure that no time-consuming processes, like “Regenerate Logical Drive Parity” or a “Media Scan,” are taking place.

  • Page 96: System Monitoring

    System Monitoring The EonStorDS series is equipped with a variety of self-monitoring features that help keep system managers aware of system operation statuses. Monitoring Features You may monitor the system through the following features:  Firmware: The controller in the system is managed by a pre-installed firmware, which is accessible in a terminal program via the serial port.

  • Page 97: Led Panel Leds

    LED Panel LEDs Storage System Name Color Status White indicates that the system is being serviced or is requiring services. 1. Service White Off indicates that the system is not being serviced nor is requiring services. Green indicates that the system is powered properly.
  • Page 98 Green indicates that the internal temperature is within the safety threshold. Green/ 4. Thermal Amber indicates that the internal Amber temperature has gone over the safety threshold. Green indicates that the system is operating normally. Green/ 5. System fault Amber Amber indicates that the system has encountered abnormal conditions:...

  • Page 99: Drive Tray Led

    Drive Tray LED Two LED indicators are located on the right side of each drive tray. When notified by a drive failure message, you should check the drive tray indicators to find the correct location of the failed drive. 3.5 inch 2.5 inch Name Color...

  • Page 100: Controller Led

    Controller LED Controller LED for Storage Systems Name Color Status Green indicates that a controller is operating healthily. 1. Ctrl Green/ Amber indicates that a component failure has Status Amber occurred, or inappropriate RAID configurations have caused system faults. It is also lit during the initialization process.
  • Page 101 Blinking Amber indicates cached data is being transferred to the flash module after the occurrence of a power outage. Once the transfer is done, all LEDs will turn off. This signal is local to each controller. Amber indicates that the detected CPU/board/chassis temperature has exceeded the higher temperature threshold.

  • Page 102: Iscsi / Ethernet Management Port Leds

    iSCSI / Ethernet Management Port LEDs Type I Type II Name Status Status Green Green indicates 1Gb connection established. 1. Speed status Off indicates 10/100Mb connection established or no connection established. Steady amber indicates a connection has been established. 2. Link / activity Amber Flashing amber indicates data I/O.

  • Page 103: 10Gb Iscsi Host Port Leds (Fibre)

    10Gb iSCSI Host Port LEDs (Fibre) LED status Color Status Steady ON Green Steady green indicates a link has been established. Flashing Green Flashing green indicates an active link. Off indicates a link has not been established. 10Gb iSCSI Host Port LEDs (RJ45) Name Status Status...

  • Page 104: 8Gb Fibre-Host Port Leds

    8Gb Fibre-Host Port LEDs Each controller module houses fibre channel host ports. Each of these ports has two LEDs for displaying the operating status. Name Color Status Green indicates an established link. Green 1. Link Off means a link is broken. Green indicates 8Gb connection.

  • Page 105: 16Gb Fibre Channel Host Port Leds

    16Gb Fibre Channel Host Port LEDs Name Status Description Indicates an established connection. Flashing Indicates data activity. 1. Link / Active Indicates that a connection is not established. Indicates a 16Gb connection is established. Green Yellow Indicates an 8Gb connection is established. 2.

  • Page 106: 12G Sas-Host Port Leds

    12G SAS-Host Port LEDs Name Color Status Steady Green indicates that all 4 PHYs are validly linked to external devices. SAS Link Green Blinking indicates less than 4 PHY links are connected Status (at least one 1 of the 4 PHYs links has failed). Off indicates all 4 PHYs links are offline.

  • Page 107: Psu / Cooling Module Leds

    PSU / Cooling Module LEDs The PSU (Power Supply Unit) contains the LEDs for the PSU and the cooling module statuses. When either of the unit fails, you need to replace the PSU as soon as possible. For details, please refer to Replacing the Power Supply Module.

  • Page 108: Alarms And I2C Bus

    Alarms and I2C Bus Other monitoring schemes include audible alarms and I C bus. Audible Alarms If any of the following components fails, the audible alarm will be triggered:  Cooling fan modules  PSU modules  CBM module  Hard disk drives ...

  • Page 109: Restoring Default System Settings

    Restoring Default System Settings NOTE Restoring default settings is a last-resort function. All configurations, such as parameters and host LUN mappings, will be erased. You may need to restore default settings in the following cases:  When the firmware update procedure requires it. ...
  • Page 110 8. Restore previous settings using the “Import NVRAM from reserve space“ or “Restore NVRAM from Files” in the firmware. ID/LUN mapping will be restored. *The Single controller system’s restore default procedure is complete and for Dual Controller systems, please continue with the following procedures. 9.

  • Page 111: System Maintenance

    System Maintenance WARNING Do not remove a failed component from the system until you have a replacement on hand. If you remove a failed component without immediate replacement, it will disrupt the internal airflow. Qualified engineers who are familiar with the system should be the only ones who make component replacements.

  • Page 112: Replacing The Controller Module(S): Single / Dual / Simultaneous Upgrade

    Replacing the Controller Module(s): Single / Dual / Simultaneous Upgrade WARNING Controller firmware MUST be identical for proper functionality. DO NOT mix controller modules from different models. Each controller has a unique ID which is applied to host port names. As the result, you may encounter SAN problems with identical port names on multiple systems.
  • Page 113 3. Disconnect all cables that are connected to the controller module. 4. Loosen the screw (shown in blue) that secures the control module’s ejection levers. 5. Push the ejection levers downwards (indicated by the blue arrows). The controller module will automatically ease out of the controller module bay. 5.
  • Page 114 7. Reattach all the cables. 8. For single controller models or when replacing both controllers simultaneously, power up the system. Check system message on the LCD screen, SANWatch, or firmware menu-driven utility. When the replacement controller is successfully brought online, the Power On Status LEDs should turn on properly.

  • Page 115: Replacing The Controller Host Board

    Replacing the Controller Host Board Power off (if you have a single controller system and it is in operation) the system remove the controller from the enclosure. Remove the existing host board from the controller by loosening the three screws. By holding onto the edges of the PCB, carefully remove the host board from its antistatic package.

  • Page 116: Replacing The Memory Module On Storage Systems

    Replacing the Memory Module on Storage Systems The controller comes with pre-installed DRAM module(s). You may upgrade it or replace it when the original module malfunctions (shown as the “NVRAM failure” event in SANWatch). WARNING If you are installing only one or replacing just one DRAM module, with the I/O ports pointing at you, always install to the DRAM slot on the right (blue slot).
  • Page 117 DRAM location Removing the module 4. Insert the replacement module. Make sure the side clips are in the open positions. Align the DIMM module with the socket and firmly push the DIMM module into the socket. The side clips will close automatically and secure the DIMM module into the socket.

  • Page 118: Replacing The Cbm For Storage Systems

    Replacing the CBM for Storage Systems Upgradeable / replaceable components are listed below:  Battery Backup Unit (BBU): In the event of a power failure, the BBU can help store/ save cached data in the DRAM module for up to 72 hours or longer with super capacity BBU..

  • Page 119: Bbu Fault Conditions And Precautions

    BBU Fault Conditions and Precautions If a BBU leaks, gives off a bad odor, generates heat, becomes discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the system and stop using it. Here are some of the conditions that might trigger BBU fault.

  • Page 120: Replacing The Battery Backup Unit (Bbu)

    Replacing the Battery Backup Unit (BBU) To replace the BBU, follow these steps: 1. Simply loosen the thumb screw (shown in red). 2. Using the thumb screw as an anchor, gently pull out the BBU (shown in blue). 3. Install the replacement BBU module and fasten the thumb screw. NOTE A replacement BBU takes approximately twelve hours to charge to its full capacity.

  • Page 121: Replacing The Flash Backup Module (Fbm)

    Replacing the Flash Backup Module (FBM) To replace the flash backup module (FBM), please follow these steps: 1. Remove the controller module (refer to Replacing the Controller Module). 2. Locate the flash backup module 3. Secure the new SSD with the screw (shown in red). Be sure the SSD and the screw is fully attached to the controller.

  • Page 122: Replacing Super Capacitor And Flash Backup Module

    Replacing Super Capacitor and Flash Backup Module Upgradeable / replaceable component is listed below:  Flash Backup Module (FBM): In the event of a power failure, the combination of Super Capacitor + FBM (non-volatile flash storage) can store the data, indefinitely. WARNING Make sure you have the replacement module(s) on-hand before you attempt the replacement procedure.

  • Page 123: Super Capacitor Fault Conditions And Precautions

    Super Capacitor Fault Conditions and Precautions If a Super Capacitor leaks, gives off a bad odor, generates heat, becomes discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the system and stop using it. Here are some of the conditions that might trigger Super Capacitor fault.

  • Page 124: Replacing The Super Capacitor

    Replacing the Super Capacitor To replace the BBU, follow these steps: 1. Remove the controller module (refer to Replacing the Controller Module). 2. Loosen the screw at the end of Super Capacitor 3. Lift the Super Capacitor from the screw end at 45 degree angle. 4.

  • Page 125: Replacing Flash Backup Module (Coupled With Supercap)

    Replacing Flash Backup Module (coupled with SuperCap) To replace the flash backup module, follow these steps: 1. Remove the controller module (refer to Replacing the Controller Module). 2. Loosen the screw at the end of flash backup module and remove the flash backup module.

  • Page 126: Replacing The Power Supply Module / Cooling Module

    Replacing the Power Supply Module / Cooling Module The power supply units (PSU) are configured in a redundant configuration with each PSU housed in a robust steel canister. Detecting a Failed PSU If a PSU module fails, the system notifies you through the following indicators: ...

  • Page 127: Replacing The Power Supply Unit (Psu)

    Replacing the Power Supply Unit (PSU) A failed PSU should be replaced as soon as possible, but only when you have a replacement module in your hand. Contact your vendor for more details (refer to Contact Information). WARNING Although the system can operate with a failed PSU in a system, it is not recommended to run the system with a failed PSU for an extended period of time.
  • Page 128 3. To remove the PSU module, pull the extraction handle downwards to disconnect the PSU from the backplane connectors. Once dislodged, gently pull the PSU out of the system. If the system is mounted in a rackmount rack, use another hand to support its weight while removing the module.

  • Page 129: Replacing A Hard Drive

    Replacing a Hard Drive WARNING Keep a replacement on hand before replacing the hard drive. Do not leave the drive tray open for an extended period of time or the internal airflow will be disrupted. Handle the hard drives with extreme care. Carry them only by the edges and avoid touching their circuits part and interface connectors.
  • Page 130 5. Remove four retention screws (two on each side). The screws secure the hard drive to the drive tray. Without mux board With mux board 3.5 inch tray 2.5 inch tray 2.5 inch SAS hard drive 2.5 inch SAS HDD (without MUX) 2.5 inch SATA hard drive 2.5 inch SATA HDD (with MUX) MUX board screw locations...
  • Page 131 8. Lock the drive tray. Turn the bezel lock to the vertical orientation (locked position) using a flat blade screwdriver. Do not push the bezel lock while turning it, otherwise the spring handle will pop out again. NOTE Never leave the bezel lock unlocked – the controller might consider it as a faulty drive.

  • Page 132: Appendix

    Appendix Technical Specifications Host/Drive Interface Fibre-host storage systems Host O/S Compatibility Host O/S independent Host Interface 8Gbps / 16Gbps Fibre + 4x iSCSI Host Channels 2 or 4 Fibre host channels (per controller) Drive Interface / channel Supports 12/ 16/ 24 channels of 6/12Gbps SAS, SATA-III, Nearline series Fibre/iSCSI hybrid-host storage systems Host O/S Compatibility Host O/S independent...

  • Page 133: Power Supply

    Power Supply Input Voltage Dual controller model: 100VAC @ 10A 240VAC @ 5A with PFC (auto-switching) Single controller model: 100VAC @ 10A 240VAC @ 5A with PFC (auto-switching) Frequency 50 to 60Hz Power rating 460W DC Output 12.0V: 38A (Max.) 5.0VSB: 2A (Max.) Input Frequency 50 to 60Hz...

  • Page 134: Dimensions

    Dimensions 2U series Dimensions Without chassis ears & protrusions Height 88mm Width 446mm Length 514mm 3U series Dimensions Without chassis ears & protrusions Height 130mm Width 445mm Length 514.04mm 4U series Dimensions Without chassis ears & protrusions Height 174.40mm Width 445.00mm Length 496.00mm...

  • Page 135: Environment

    Environment 5 to 95% (non condensing – operating and non-operating) Humidity Operating: a. With Battery Backup Module 0º to 35ºC Temperature b. Without Battery Backup Module 0º to 40ºC Non-operating: -40º to 60ºC Operating: Sea level to 12,000ft Altitude Packaged: Sea level to 40,000ft Operating: 5G, half-sine, 11ms pulse width Shock (Half-sine) Non-operating: 15G, half-sine, 11ms pulse width...

  • Page 136: Certifications

    Certifications Summary UL (60950-1 2’nd) Safety BSMI CNS 14336: 2005 IEC 60950-1, 2’nd Edition GOST-R GOST R 60950-1-2005 CE EN 55022: 2006/A1:2007 / EN 61000-3-2: 2006 / EN 61000-3-3: 1995/A1: 2001 /A2: 2005 / EN 55024: 1998/A1: 2001/A2: 2003 IEC 61000-4-2:1995/A2:2000 IEC 61000-4-3:1995/A2:2006 IEC 61000-4-4:2004 IEC 61000-4-5:2005...
  • Page 137 사 용 자 안 내 문 이 기기는 업무용 환경에서 사용할 목적으로 적합성평가를 받은 기기로서 가정용 환경에서 사용하는 경우 전파간섭의 우려가 있습니다.

  • Page 138: Slide Rail Kit Installation Guide

    Slide Rail Kit Installation Guide The table is categorized into model numbers in alphabetical / numeric order so users can fast locate the corresponding slide rail kit for their respective enclosure. Slide Rail Kits If you are unable to locate clear instructions on installing your enclosure, please contact Technical Support.

  • Page 139: Unpacking The System

    Slide Rail Installation Guide Unpacking the System Use the “Unpacking List” to cross check all components have been received. The basic contents include one GUI CD pack, Quick Installation Guide and Enclosure Installation Guide. For details on each slide rail kit contents, please refer to specific kit installation details in this manual.

  • Page 140: Rack Ear Mount Kit

    Rackmount Slide Rail Kits Rack Ear Mount Kit The following table shows all accessories that came with the rack ear mount kit. Kit Contents Item Description Quantity Mounting bracket assembly, left-side Mounting bracket assembly, right-side Hexagon washer screws #6-32mm Truss head screws M5 x 9.0mm M5 cage nuts M5 x 25mm M6 x 25mm...

  • Page 141: Installation Procedure

    Installation Procedure 1. The installation begins with determining the installation position and M5 cage nut (5) insertion location. Front rack posts Unit boundary 3/4U, M5 cage nut position 2U, M5 cage nut position Unit boundary Rear rack posts M5 x 9.0mm...
  • Page 142 2. Install the fixed rack ear mount to the rear posts and secure them using truss head screws (4) M5 x 9.0mm 3. With the assistance of another person holding the enclosure at the installation height, the other person can place four M5 x 25mm (6) at the front of the enclosure and eight #6-32 screws (3), four on each side, to secure the enclosure into the rack.

  • Page 143: Slide Rail Kit

    Slide Rail Kit The following table shows all accessories that came with the slide rail kit. Kit Contents Item Description Quantity Mounting bracket assembly, left-side Mounting bracket assembly, right-side Inner glides Flathead screws #6-32 L4 Truss head screws M5 x9.0mm M5 cage nuts M5 x 25mm M6 x 25mm...
  • Page 144 1. The installation begins with determining the installation position (front and rear rack positions) and M5 cage nut (5) insertion location. Front rack posts Unit boundary 3/4U, M5 cage nut position 2U, M5 cage nut position Unit boundary Rear rack posts M5 x 9.0mm...
  • Page 145 2. Adjust the length by loosening the four screws on the slide rail. Secure the slide rails to front and rear posts using truss head screws. Tighten the four screws on the slide to fix the length. M5 x 9.0mm Inner glide rail M5 x 9.0mm 3.

  • Page 146: Once Mounted

    Once Mounted Once the enclosure has been mounted, you may refer to the User Manual that came with your system for further instructions on completing the hardware installation process. The User Manual will go on to explain details on installation / maintenance of hard drives, controllers, optional modules (Super Capacitor battery, CBM, etc.), cooling modules, power supplies, cable connections, topology configurations, etc.
