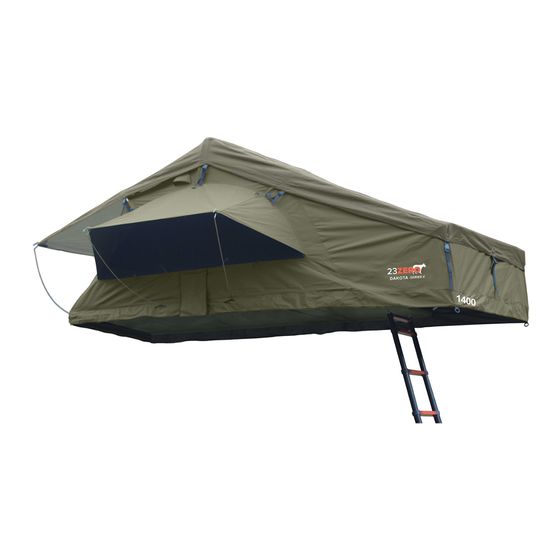

- Page 1 ROOF TOP TENT USER MANUAL This manual applies to the following 23 Zero Roof Top Tents: Stealth Dakota 1400 Dakota 1600 Dakota 1800 Dakota 2200...
-
Page 2: Table Of Contents
Thank you for purchasing a 23 ZERO Roof Top Tent Congratulations on your purchase of a 23ZERO Roof Top Tent. We strive to provide you with the ultimate camping experience. Your Roof Top Tent mounts directly to your roof rack or aftermarket roof bars. -
Page 3: Safety & Warnings
Ladder height may need to be adjusted depending on vehicle height, see “Ladder Adjustment” DO NOT CLIMB ON LADDER UNTIL CORRECT ANGLE IS ACHIEVED 23Zero - The wholesaler / manufacturer shall not be liable for special, indirect incidental or consequential damages. -
Page 4: Hardware & Accessories
Also included: - Mounting rails with end caps. The Stealth, Dakota 1400 & Dakota 1600 have 2 mounting rails included. These are not attached to the baseboard to allow you to determine the appropriate orientation for your setup, see “Tent Orientation”... -
Page 5: Hardware Identification Chart
ROOF TOP TENT USER MANUAL Hardware identification chart... -
Page 6: Tent Orientation
Side Mounted – The ladder extends from the side of the vehicle. REAR SIDE These orientations depend on the size of the roof top tent. The Dakota 1400 can be mounted in either orientation. 23ZERO recommends the Dakota 1600, Dakota 1800 and Dakota 2200 to be side mounted. -
Page 7: Attaching Mounting Channels
Note: DO NOT DRILL HOLES INTO THE BASEBOARD. If the pre-drilled holes do not work with your set up, contact info@23zero.com.au Attaching Ladder Now that the mounting rails have been fitted, turn the roof top tent around allowing 2 pairs of holes on the outer edge of the baseboard to face upward, (4 pairs of holes for the Dakota 2200). -
Page 8: Fitting To Roof Rack
ROOF TOP TENT USER MANUAL Fitting to roof rack Before fitting the roof top tent to your roof rack, ensure all the side tie down straps are secured. You may even choose to fit the transit cover before installation, see “Fitting transit cover”. To secure the roof top tent to the roof rack, it must be clamped on 4 corners using the aluminium slides and mounting plates supplied. - Page 9 All 23ZERO roof top tents have sky windows with zippered fly mesh fitted. These can be used with or without the tropical flysheet attached. The flysheet may be removed from the roof top tent to promote sky views while laying down or ventilation can be improved during inclement weather by having the sky window open and tropical fly sheet attached.
-
Page 10: Ladder Adjustment
ROOF TOP TENT USER MANUAL Ladder adjustment For your safety and protection, ensure correct placement and angle of ladder. See diagrams below. Recommended ladder placement is a 4:1 ratio or approx. 70° to 75°. The ladder placed in correct position also acts as a brace for the suspended base of your tent. NOTE: Under no circumstances should anyone be inside the roof top tent if the ladder is not locked and secured at the correct angle. -
Page 11: Attaching Optional Annex
ROOF TOP TENT USER MANUAL Attaching optional annex 23ZERO annexes are available in a range of sizes to suit all 23Zero roof top tents. The correct size annex must be used on your roof top tent. Before attaching the annex ensure nobody is in the roof top tent. Retract the ladder and secure it with the ladder retaining strap. -
Page 12: Fitting Transit Cover
Correct fitment is vital to ensuring it performs as intended and prolongs it’s lifespan. The 23ZERO PVC transit cover has 4 edges, three of which have a continuous zip and one which has a Kedar sail rope. - Page 13 ROOF TOP TENT USER MANUAL 2 Year Warranty 23ZERO will replace or repair any product at its discretion that is subject to faulty manufacturing or workmanship including materials. Exclusions The above warranty is limited to manufacturing and materials defects. Not including damage caused by misuse or abuse, wear and tear, condensation, extreme weather, accidents, incorrect set up, damage caused by mould, insects, animals or children.
