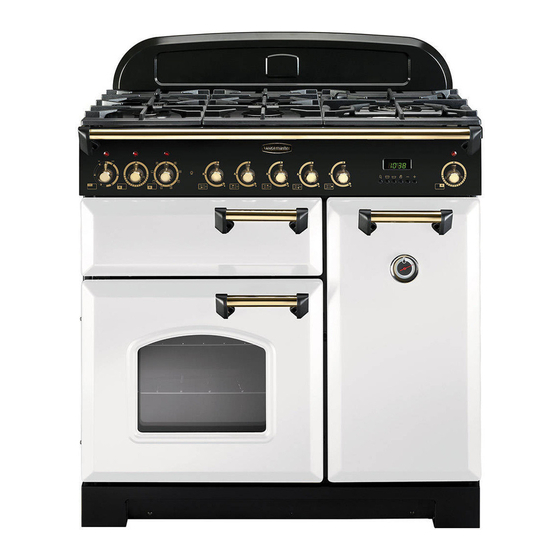

- Page 1 USER GUIDE & INSTALLATION INSTRUCTIONS Classic Deluxe Professional Deluxe Elan Deluxe 90 Dual Fuel U111161 - 02...
- Page 2 Terms & Conditions 1. This is my Rangemaster is open to residents of UK mainland only, aged 18 years & over. 2. All entries should be submitted to the advertised e-mail address, or Rangemaster UK Facebook, Instagram or Twitter page using the advertised hashtag &...
-
Page 3: Table Of Contents
Contents Before You Start... Cleaning your cooker Personal Safety Essential Information Electrical Connection Safety Hotplate Burners Gas Connection Safety The Griddle Plate If You Smell Gas Glide-out Grill Peculiar Smells Control Panel and Doors Cooling Fan Ovens Ventilation Cleaning Table Maintenance 10. -
Page 5: Before You Start
Before You Start... WARNING: Your cooker should give you many years of The appliance and its • trouble-free cooking if installed and operated accessible parts become hot during use correctly. It is important that you read this and will retain heat even after you have section before you start. -
Page 6: Gas Connection Safety
Otherwise, all installations must be in Fig. 1.1 accordance with the relevant instructions in this booklet. WARNING: THE APPLIANCE MUST BE EARTHED. Note: The cooker must be connected to the 10 mm² max correct electrical supply as stated on the voltage label on the cooker, through a suitable cooker control unit incorporating a double- 6 mm²... -
Page 7: If You Smell Gas
Make sure that the gas supply is turned ovens to 200 °C and run for at least an hour. • on and that the cooker is wired in and Before using the grill for the first time you switched on. should also turn on the grill and run for 30 minutes with the grill pan in position, pushed In your own interest and that of safety, it is... -
Page 8: Oven Care
in place of a glove – it might catch fire if NEVER try to move a pan of hot fat, • brought into contact with a hot surface. especially a deep fat fryer. Wait until the fat is cool. Filling the pan too full of fat can DO NOT use hotplate protectors, foil or •... -
Page 9: Oven Shelves
is opened (Fig. 1.3). When opening the up the shelf with a groove in the oven ladders. oven, stand well back and allow any steam Push the shelf back until the ends hit the shelf to disperse. stop. Lift the front so the shelf clears the stops, then lower the front so the shelf is level and The inside door face is constructed with •... -
Page 10: Cooker Care
DO NOT put the burner heads in a Cooker Care • dishwasher. As steam can condense to water droplets on the cool outer trim of the oven, it may be NEVER use caustic or abrasive cleaners as • necessary during cooking to wipe away any these will damage the surface. -
Page 11: Cooker Overview
Cooker Overview Fig. 2.1 Professional deluxe The 90 dual fuel cooker (Fig. 2.1) has the following features: Fig. 2.2 5 hotplate burners including a wok burner Control panel Glide-out grill Main multi-function oven Tall fan oven Hotplate Burners The drawing by each of the central knobs indicates which burner that knob controls. -
Page 12: Wok Burner
If, when you let go of the control knob, the burner goes out, Fig. 2.3 ArtNo.270-0003 then the FSD has not been bypassed. Turn the control knob Proplus control to low to the OFF position and wait for one minute before you try again, this time making sure to hold in the control knob for slightly longer. -
Page 13: The Wok Cradle
The Wok Cradle Fig. 2.9 The wok cradle is designed to fit a 35 cm wok. If you use a different wok, make sure that it fits the cradle. Woks vary very widely in size and shape. It is important that the wok sits down on the pan support –... -
Page 14: The Glide-Out Grill™ (Fig. 2.15)
The Glide-out Grill™ (Fig. 2.15) Fig. 2.15 WARNING: When the trivet has been removed from the grill pan, please ensure that the grill pan and cradle are fully returned into the grill chamber. The grill pan door MUST remain open. Accessible parts may be hot when the broiler is in use. -
Page 15: The Ovens
The Ovens Fig. 2.16 The clock must be set to the time of day before the ovens will work. See the following section on ‘The Clock’ for instructions on setting the time of day. Multi-function oven References to ‘left-hand’ and ‘right-hand’ ovens apply as viewed from the front of the appliance. -
Page 16: Multi-Function Oven Functions
Multi-function Oven Functions Fan Assisted Oven This function operates the fan, circulating air heated Rapid Response by the elements at the top and the base of the oven. The combination of fan and conventional cooking The Rapid Response setting enables you to preheat (top and base heat) makes this function ideal for cooking the oven faster than normal. - Page 17 Defrost Fig. 2.18 This function operates the fan to circulate cold air only. Make sure the temperature control is at 0°C and that no heat is applied. This enables small items such as desserts, cream cakes and pieces of meat, fish and poultry to be defrosted.
-
Page 18: Accessories
Accessories Fig. 2.21 Shelf guard Oven Shelves – Left-hand (Main) Oven The oven shelves (Fig. 2.21) can be easily removed and refitted. Pull the shelf forward until the back of the shelf is stopped by the shelf stop bumps in the oven sides (Fig. 2.22). Front Lift up the front of the shelf so the back of the shelf will pass under the shelf stop and then pull the shelf forward (Fig. - Page 19 Telescopic runners (optional extra) Fig. 2.31 A glide-out oven shelf is available for the left-hand (main) oven (Fig. 2.31). Note: The Handyrack must be removed before fitting the glide-out shelf. To remove the Handyrack Remove the roasting tin. Then unclip the Handyrack from its FRONT locating bracket (Fig.
-
Page 20: Using The Glide-Out Grill
Using the Glide-out Grill™ DocAUS.020-0004 - Overview - 110DF - Elan Fig. 3.2 Fig. 3.1 Nearest to the element Middle High Middle Low Furthest from the element Four grill height positions refer to Fig. 3.5 Fig. 3.4 Fig. 3.3 To switch on both elements To switch on the right half element Four grill height positions Fig. -
Page 21: Rotary Clock
4. Rotary clock To stop the oven at a specific time of day Symbol key (main oven only) You have set the required temperature and function mode and you would like the oven to automatically stop. manual clock Step. 1 Note: The cook minute minder symbol [ ] remains... - Page 22 To start and stop the oven automatically (main oven only) The timer allows you to automatically start and stop by a combination of the length of the cooking time and the stop time. Giving you the flexibility to cook casseroles etc while you are out. You cannot set the actual start time. Step.
-
Page 23: Button Clock
3 button clock Setting the time Reset the minute minder The clock must be set to the time of day before the oven will work Step. 1 Note: The cook Step. 1 symbol [ ] remains visible during normal operation. ArtNo.306-0001 - 3-button clock ArtNo.306-0001 - 3-button clock Step. - Page 24 To start and stop the oven automatically AUTO is showing, but you want to revert (main oven only) to manual cooking (main oven only) Step. 1 Press [M] button again until current Press either [+] or time is diplayed. [-] buttons ArtNo.306-0001 - 3-button clock ArtNo.306-0001 - 3-button clock Step.
-
Page 25: Button Clock
6. 6 Button clock Automatic dimming Fig. 6.1 Providing there are no automatic programs set, and the minute minder is not active, your clock will automatically dim during the hours between 22:00 and 06:00. ArtNo.302-0002 - 6BC annotated Minute Minder Step. - Page 26 Setting a cook duration To start and stop the ovens (main oven only) automatically You have set the required temperature and function mode (main oven only) and you would like the oven to automatically stop. You have set the required temperature and function mode and you would like the oven to automatically stop.
-
Page 27: Cooking Tips
Cooking tips Tips on cooking with the timer General oven tips If you want to cook more than one dish, choose dishes that The wire shelves should always be pushed firmly to the back require approximately the same cooking time. However, of the oven. -
Page 28: Cooking Table
Cooking Table The oven control settings and cooking times given in the table below are intended to be used as a Top (T) guide only. Individual tastes may require the temperature to be altered to provide a preferred result. ArtNo.050-0007 Centre (C) Oven shelf positions Food is cooked at lower temperature in a fan oven than in a conventional oven. -
Page 29: Cleaning Your Cooker
Cleaning your cooker Essential Information Fig. 9.1 Isolate the electricity supply before carrying out any thorough cleaning. Allow the cooker to cool. NEVER use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. DO NOT mix different cleaning products –... -
Page 30: The Griddle Plate
The Griddle Plate Fig. 9.5 Always clean the griddle plate after use. Allow it to cool completely before removing. Immerse the griddle plate in hot soapy water. Use a soft cloth or, for stubborn stains, a nylon washing up brush. NOTE: If the griddle plate is washed in a dishwasher then some dishwasher residue may appear on the back. -
Page 31: Ovens
Glass Fronted Door Panels Fig. 9.9 The oven door front panels can be taken off so that the glass panels can be cleaned. Move the cooker forward to gain access to the sides (see the ‘Moving the Cooker’ section under ‘Installation’). -
Page 32: Cleaning Table
Cleaning Table Cleaners listed are available from supermarkets or electrical retailers as stated. For enamelled surfaces use a cleaner that is approved for use on vitreous enamel. Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately. Hotplate Part Finish Recommended Cleaning Method... -
Page 33: 10. Troubleshooting
10. Troubleshooting Hotplate/Cooktop ignition or hotplate burners faulty Food is cooking too slowly, too quickly, or burning Is the power on? Is the clock illuminated? Cooking times may differ from your previous oven. If not, there maybe something wrong with the power supply. Check that you are using the recommended temperatures and shelf positions –... - Page 34 Oven light is not working Fig. 10.1 Fig. 10.2 The bulb has probably burnt out. You can buy a replacement bulb (which is not covered under the warranty) from a good electrical shop. Ask for a 40W - 230V halogen lamp (G9) (Fig.
-
Page 35: 11. Installation
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. 11. Installation Dear Installer In the UK the cooker must be installed in accordance with: Before you start your installation, please complete the details below, so that, if your customer has a problem relating to •... -
Page 36: Location Of Cooker
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Location of Cooker 11. 4 mm & 3 mm Allen keys Checking the Parts: The cooker may be installed in a kitchen/kitchen diner but NOT in a room containing a bath or shower. 3 pan supports Griddle plate (Supplied) This appliance is designed for domestic cooking only. -
Page 37: Positioning The Cooker
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Positioning the Cooker ArtNo.090-0009 - 90 2BC cooker min spacings Fig. 11.1 Fig. 11.1 and Fig. 11.2 show the minimum recommended distance from the cooker to nearby surfaces. 75 mm 75 mm 650 mm... -
Page 38: Lowering The Two Rear Rollers
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Lowering the Two Rear Rollers Fig. 11.5 To adjust the height of the rear of the cooker, first fit a 13 mm spanner or socket wrench onto the hexagonal adjusting nut (Fig. -
Page 39: Levelling
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Levelling Fig. 11.11 You are recommended to use a spirit level on a shelf in one of Pipework Pipework the ovens to check for level. Place the cooker in its intended position taking care not to twist it within the gap between the kitchen units as damage may occur to the cooker or the units. -
Page 40: Pressure Testing
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Pressure Testing CURRENT OPERATED EARTH LEAKAGE BREAKERS The combined use of your cooker and other domestic The gas pressure can be measured at one of the hotplate appliances may cause nuisance tripping, so we recommend burner injectors (not the wok burner). -
Page 41: Final Fitting
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Final Fitting Fig. 11.15 Hotplate Check Check each burner in turn (refer to the ‘Hotplate Burners’ ArtNo.350-0010 - Fitting the plinth 1 (Kitchener) section at the front of the instructions). Grill Check Turn on the grill control and check that the grill heats up. -
Page 42: 12. Circuit Diagram
12. Circuit Diagram P095199 P038434 P095199 The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz. Code Description Code Description Code Colour Grill front switch Right Hand Oven Thermostat Blue Grill energy control Clock / Timer Brown Left Hand Grill Element... -
Page 43: 13. Technical Data
20 mbar Butane 29 mbar 230/400 V 50 Hz Propane 37 mbar Dimensions Model Classic Deluxe 90 Dual Fuel Overall height minimum 905 mm maximum 930 mm Overall width 900 mm Overall depth 608 mm excluding handles, 670 mm including handles... - Page 44 Classic Deluxe 90 Dual Fuel 670 DEPTH INCLUDING HANDLES 900 OVERALL WIDTH 608 DEPTH EXCLUDING HANDLES 887 PLINTH WIDTH...
- Page 45 Professional Deluxe 90 Dual Fuel 642 DEPTH INCLUDING HANDLES 900 OVERALL WIDTH DEPTH EXCLUDING HANDLES...
- Page 46 Elan Deluxe 90 Dual Fuel 685 DEPTH INCLUDING HANDLES 608 DEPTH EXCLUDING HANDLES 900 OVERALL WIDTH 887 PLINTH WIDTH 589 TO PLINTH FRONT...
- Page 47 Hotplate Efficiency Brand Rangemaster Classic Deluxe Model Identification Professional Deluxe Elan Deluxe Size Type Dual Fuel Type of Hob Number of gas burners Auxiliary / Small Burner (EE gas burner) Semi Rapide / Medium Burner (EE gas burner) Semi Rapide / Medium Burner (EE gas burner)
- Page 48 Oven Data Brand Rangemaster Model identification Classic Deluxe Mass Model identification Professional Deluxe Mass Model identification Elan Deluxe Mass Type of oven Electric Number of cavities Left-hand Efficiency Fuel type Electric Cavity type Multifunction Power - conventional Power - forced air convection...
- Page 49 NOTES...
- Page 50 NOTES...
- Page 55 • Has not been repaired by persons or organisations other than those authorised to act on behalf of AGA Rangemaster. Date of Purchase Exceptions: • Items not included under the free 1 year guarantee Installer’s Name &...
- Page 56 Registered Office: c/o Aga Rangemaster, Meadow Lane, Long Eaton, Nottingham, NG10 2GD Rangemaster continuously seeks improvements in specification, design and production of products and thus, alterations take place periodically. Whilst every effort is made to produce up-to-date literature, this brochure should not be regarded as...
