SYSTEM

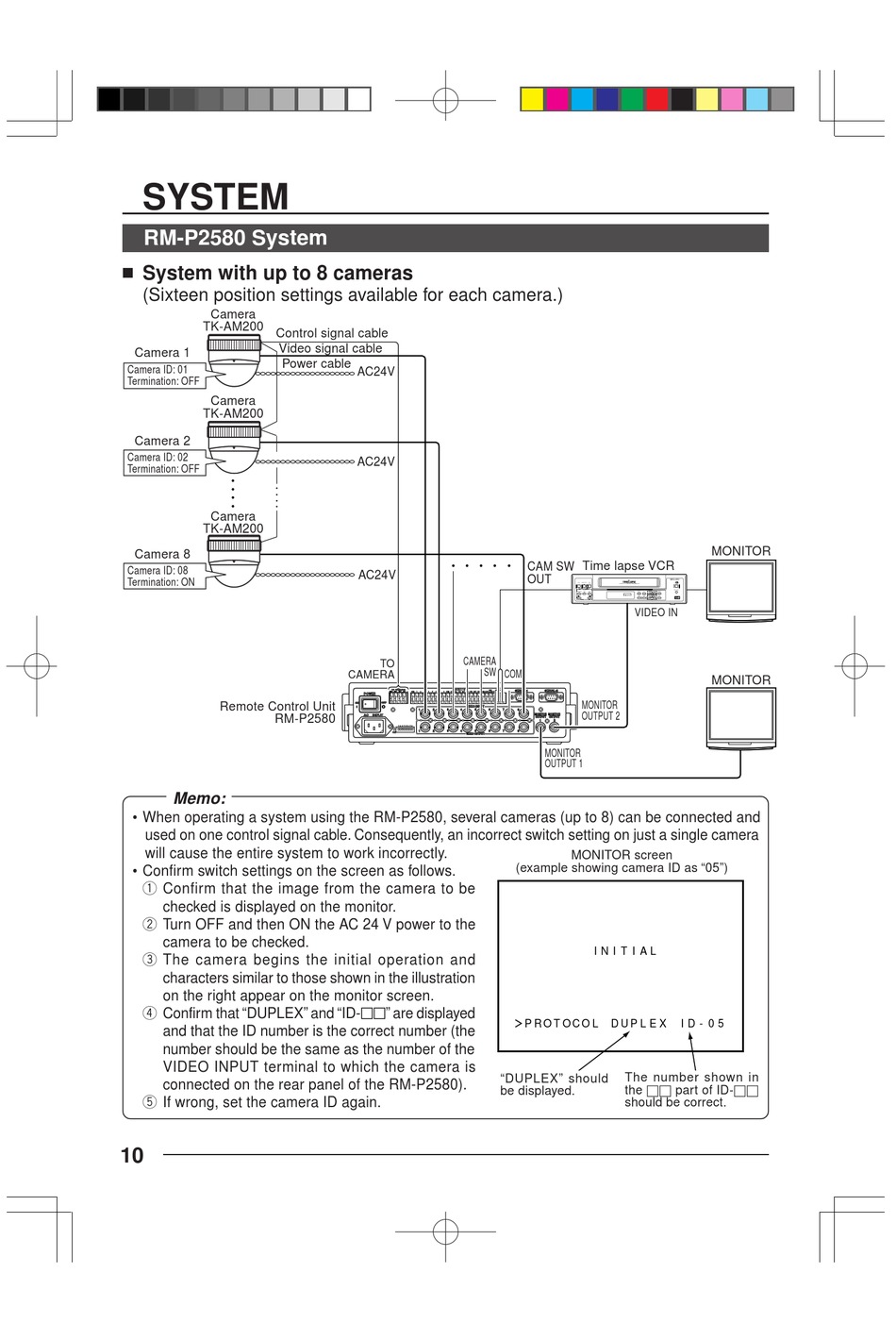

RM-P2580 System

System with up to 8 cameras
(Sixteen position settings available for each camera.)
Camera
TK-AM200
Control signal cable
Video signal cable
Camera 1
Power cable
Camera ID: 01
Termination: OFF
Camera
TK-AM200
Camera 2
Camera ID: 02
Termination: OFF
Camera
TK-AM200
Camera 8
Camera ID: 08
Termination: ON
Remote Control Unit
RM-P2580
Memo:
• When operating a system using the RM-P2580, several cameras (up to 8) can be connected and
used on one control signal cable. Consequently, an incorrect switch setting on just a single camera
will cause the entire system to work incorrectly.
• Confirm switch settings on the screen as follows.
q Confirm that the image from the camera to be
checked is displayed on the monitor.
w Turn OFF and then ON the AC 24 V power to the
camera to be checked.
e The camera begins the initial operation and
characters similar to those shown in the illustration
on the right appear on the monitor screen.
r Confirm that "DUPLEX" and "ID-
and that the ID number is the correct number (the
number should be the same as the number of the
VIDEO INPUT terminal to which the camera is
connected on the rear panel of the RM-P2580).
t If wrong, set the camera ID again.
