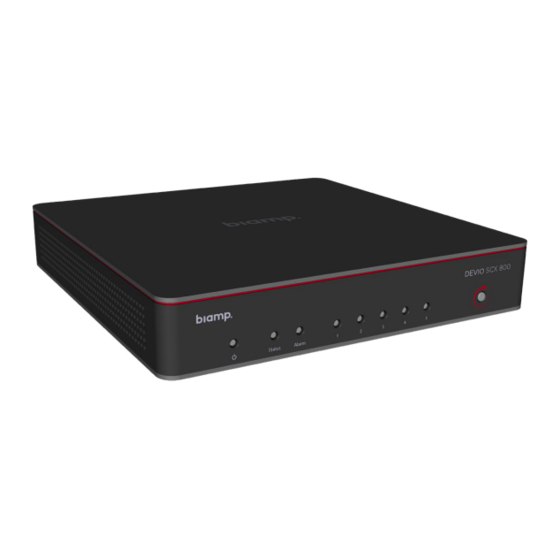

Devio SCX 400/800
Installation & Operation Guide
Product Description
The Devio SCX 400/800 products are conference hubs compatible with Biamp's
network audio and control devices. USB audio and HID synchronization also
allows the hubs to act as a conference audio peripheral when connected with
Biamp Modena devices or Unified Communication (UC) systems.
With four or eight channels of Acoustic Echo Cancellation (AEC) respectively,
users can choose the model that meets the number of microphones required for
the room.
SCX is designed to be used primarily with Biamp's beam-forming microphones,
PoE amplifiers and speakers. A system including these elements and a UC-room
system, display and camera will provide a complete technology solution for a
UC-enabled conference room.
Setup and Use
The Devio SCX is designed to work out-of-box with no user configuration
required. An an intuitive user interface offers features such as locate and
firmware updates. The information supplied by this manual relates to physical
connections and device setup.
A:
9300 S.W. Gemini Drive Beaverton, OR 97008 USA
Biamp Launch
Biamp Launch technology offers automatic device discovery and tuning
without the need for custom programming. In addition, SCX provides the user
with a full performance report for the meeting space upon completion.
The Launch may be initiated from the Launch button on the Audio page of the
embedded user interface or from the Launch button on the front of the device
itself. Click
here
for more information on launching the SCX.
Devices
The Devio SCX will discover connected devices, configure itself accordingly and
supports the following:
•
TCM-1, TCM-1A, TCM-1EX
•
TCM-X, TCM-XA, TCM-XEX
•
TTM-X, TTM-XEX
•
EX-UBT
•
AMP-450P, AMP-450BP
•
HD-1
W:
www.biamp.com
MAR 2021
