LB management

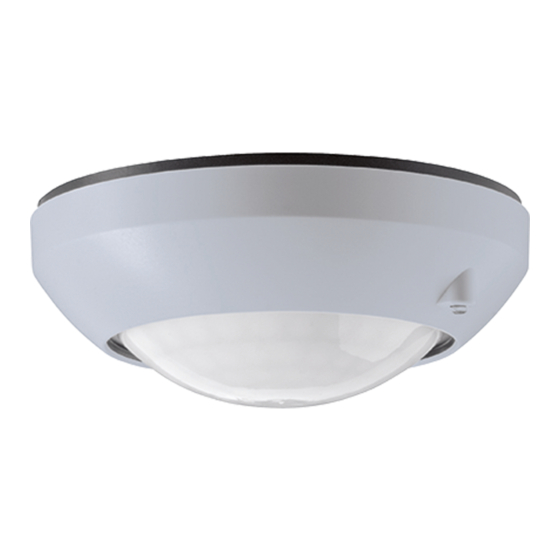

Motion and presence detector
Motion and presence detector
Art. no.: DWPM17360WW
Motion and presence detector
Art. no.: DWPM17360AL
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device or load. In
so doing, take all the circuit breakers into account, which support dangerous voltages to the
device and or load.
Danger of electric shock. The device is not suitable for disconnection from supply voltage. De-
pending on the insert used, the load is not electrically isolated from the mains, even when the
device is switched off.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end customer.
2
Device components
(1)
FM insert
(2)
Sensor top
(3)
Brightness sensor
(4)
Button Bluetooth Ʃ
(5)
Sensor window and status LEDs
(6)
Decor ring
82599323
J0082599323
Figure 1: Device components
1 / 13
25.10.2019
Advertisement
Table of Contents
Related Manuals for Jung DWPM17360WW
Summarization of Contents
Safety Instructions for Motion and Presence Detector
Skilled Person Installation Requirement
Electrical devices must be mounted and connected only by skilled persons.
Follow Manual for Safety
Read and follow the manual fully to prevent serious injuries, fire, or property damage.
Disconnect Power Before Work
Always disconnect power before carrying out work on the device or load to avoid electric shock.
Device Not for Supply Voltage Disconnection
The device is not suitable for disconnection from supply voltage; load may remain live.
Protect Sensor Window
Do not press on the sensor window to prevent damage to the device.
Not for Alarm Systems
The device is not suitable for use as a burglar alarm or other alarm system.
Intended Use of Motion and Presence Detector
Automatic Lighting Control
Automatic switching of lighting based on heat motion and ambient brightness.
Extension and Dimming Operation
Operation with flush-mounted insert for dimming/switching or 3-wire extension.
Ceiling Installation
The device is designed for ceiling installation on a flush-mounted insert.
Commissioning the Device
Install Mobile App
Download and install the Clever Config app from the App Store or Google Play Store.
Couple Mobile Devices via Bluetooth
Activate Bluetooth coupling mode and search for the device using the app.
Device Operation and Settings
Automatic Operation Modes
Device detects motion and switches light based on brightness threshold.
Behavior After Power Failure
Device performs self-test on power restoration; status LED behavior is described.
Resetting After Power Interruption
Procedure to re-enable functions after power loss using the Bluetooth button.
Operation with Extensions
Manual operation via 2-wire/3-wire extensions, push-buttons, or rotary dimmers.
Short-Time Light Operation
Activates light for a set duration with pulses every 3 seconds.
Temporary Light Switch-Off
Manually switches off light for 3 minutes, restartable with detected motion.
Adjusting Brightness with Dimming Insert
Allows brightness adjustment when using a dimming insert.
Saving and Deleting Switch-On Brightness
Save current brightness as default or delete the stored switch-on brightness.
Information for Skilled Personnel
Electric Shock Hazard Warning
Critical safety warning regarding electric shock. Disconnect device and cover live parts.
Installation Location and Cover Alignment
Selecting Installation Location
Choose vibration-free locations and avoid interference sources for optimal performance.
Aligning the Cover
Align cover so brightness sensor faces away from windows to reduce scattered light.
Fitting the Cover
Connect insert properly, mount cover according to orientation, and switch on mains voltage.
Limiting and Expanding Detection Field
Limiting Detection Field with Push-on Cover
Use push-on cover or app to mask interference sources and limit detection area.
Expanding Detection Field
Connect a 3-wire extension to expand the detection field.
Configuring Device Settings
Device settings are configured via the app, with default settings provided.
Checking Detection Field and Restoring Settings
Checking Detection Field
Use app or red LED to check detected motions; activate walking test via app.
Restoring Factory Settings
Procedure to reset device to default settings via Bluetooth button after power cycle.
Parameter List and Settings
Operating Function Settings
Configure operating mode (automatic, on/off) and limiting length (0.5-5 hours).
Detection and Brightness Settings
Adjust sensitivity, switch-on threshold, and brightness for motion/presence detection.
Run-On Time Settings
Configure fixed or dynamic run-on times for lighting.
Operating Mode and Lock
Set device as motion/presence detector and enable/disable operating lock.
Presence Simulation and Alarm Function
Configure presence simulation for saved times or activate alarm function for monitoring.
Time Controller Function
Use weekly timer for functions like night light or hotel function with 16 switch points.
Settings for Switch and Dimming Inserts
Switch Insert Settings
Configure pulse operation and switch-off warning for switch inserts.
Dimming Insert Settings
Configure switch-off warning, brightness limits, and hotel function for dimming inserts.
Additional Settings and Troubleshooting
Night Light and Constant Light Settings
Configure night light function and constant light regulation with set brightness.
Troubleshooting: Device Not Switching On
Solutions for device not switching on due to brightness, no motion, or specific modes.
Troubleshooting: Unwanted Switching
Solutions for device switching on without motion or constantly during motion.
Troubleshooting: Device Off Despite Motion
Solutions for device switching off despite detected motion.
Troubleshooting Mobile Device Connection
Device Not Reacting to Mobile Device
Solutions if the blue LED does not light, indicating coupling or Bluetooth issues.
