- Page 1 INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS ESTAMPINOX ES / ER / EFH / EFN INOXPA, S.A. c/Telers, 54 Aptdo. 174 E-17820 Banyoles Girona (Spain) Tel. : (34) 972 - 57 52 00 Fax. : (34) 972 - 57 55 02 Email: inoxpa@inoxpa.com...
- Page 2 Denomination Type Manufacturing year Comply with the pertinent disposition, in the execution supplied by INOXPA, S.A. for the incorporation in a machine or installation, or for the assembly with other machines as a subunit of other higher order machine. Harmonized norms used, particularly:...
-
Page 3: Introduction
The first thing to do when the pump is received is to check it and ensure that the contents conform to the shipping voucher. INOXPA inspects all equipment prior to shipment, but it cannot guarantee that the merchandise reaches the user intact. -
Page 4: Warranty
The limits for values specified in the data sheet cannot be exceeded under any circumstances. Any change in operating conditions can only be done with the prior written consent of INOXPA. WARRANTY. We wish to point out that any warranty issued will be null and void and that we are entitled to an indemnity for any civil liability claim for products which might be filed by third parties if: •... -
Page 5: Table Of Contents
Instructions manual ......................1.1 Maintenance ........................1.1 Principles of operation ...................... 1.1 Safety ..........................1.1 Warranty ........................... 1.2 INOXPA Service ......................1.2 2. Table of Contents 3. General Information Description ........................3.1 Materials used in construction ..................3.1 Shaft sealing ........................3.1 Fields of application ...................... - Page 6 Estampinox EFH pump dimensions .................. 9.3 Estampinox EFH pump motor coupling dimensions ............9.4 Estampinox EFN pump dimensions .................. 9.5 Estampinox ES pump ......................9.6 Parts list Estampinox ES ....................9.7 Estampinox ER pump ......................9.8 Parts list Estampinox ER ....................9.9 Estampinox EFH pump .....................
-
Page 7: General Information

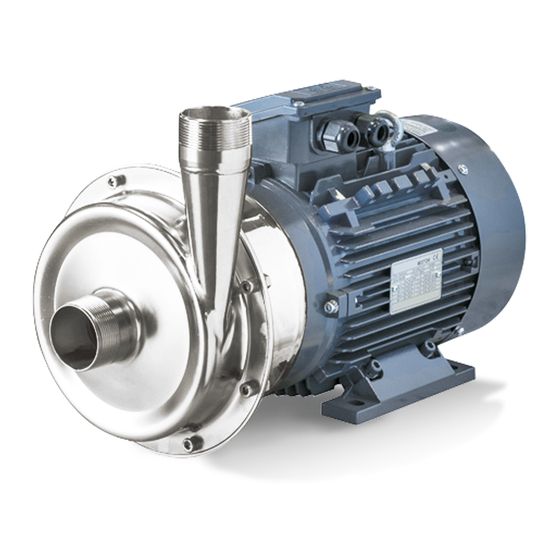

3. General Information DESCRIPTION. The centrifugal pumps, with single impeller, in the ESTAMPINOX ES, ER, EFH and EFN series are manufactured using AISI-316 stainless steel die-pressed steel plate with an electro-polished finish. The ESTAMPINOX series has been designed to meet the auxiliary services in the Food, Chemical, Pharmaceutical, Beverage and Oenological Industries. - Page 8 Table 3.2 : Description of the materials and aplications. STANDARD APLICATION ES / ER Liquid type clear water Pumped product Temperature 90ºC max. Max. suction head -6 m. to +35ºC Max. working pressure 10 bar Max. suction pressure 2 bar Connections GAS / BSP Pump housing...
-
Page 9: Installation
4. Installation GENERAL CONSIDERATIONS. This manual provides basic instructions which should be taken into account when proceeding to install the pump. It is of utmost importance that the shop foreman read this manual before assembly. LOCATION. Piping. Place the pump as close as possible to the suction tank (refer to the chapter, "Pump Installation"), and if possible below the level of the liquid or even lower in relation to the deposit so that the static manometric suction head is at its maximum. -
Page 10: Direction Of Rotation
DIRECTION OF ROTATION. The direction of rotation is clockwise viewing the pump from the rear part of the motor. Make sure that the pump rotates in the direction indicated on the plate. If the pump rotates in the wrong direction its hydraulic performance will be lower. Electrical diagram. -
Page 11: Start-Up
5. Start-up GENERAL CONSIDERATIONS. The pump can be started up so long as the instructions given in chapter 4 ("Installation") have been followed. Prior to start-up, the persons responsible for the operation must be duly informed of the pump’s operation and the safety instructions. This instruction manual should be available to personnel at all times. -
Page 12: Maintenance
INOXPA does not assume responsibility for accidents and damage which might occur as a result of any failure to comply with the instructions indicated herein. -
Page 13: Operating Problems
7. Operating Problems Problems Probable Causes Overloading of motor. 8, 9, 13 Insufficient flow rate or pressure in pump. 1, 2, 4, 5, 7, 9, 10, 17, 19 No pressure on the discharge side. 2, 3, 6, 18 Irregular discharge flow rate / pressure. 1, 2, 4, 5, 6, 9 Noise and vibrations. -
Page 14: Disassembly And Assembly
Incorrect assembly or disassembly may cause damage in the pump's operation and lead to high repair costs and a long period of down-time. INOXPA is not responsible for accidents or damages caused by a failure to comply with the instructions in this manual. -
Page 15: Mechanical Seal
MECHANICAL SEAL. Disassembly of the mechanical seal. Disassemble the simple mechanical seal as indicated in the section on "Disassembly of the impeller and the pump cover". • When the impeller is removed, the rotating part of the mechanical seal (08) remains attached to the shaft of the pump. Check that the sealing surface of the rotating face and the seal are in good condition. - Page 16 EFH / EFN type • Take the adaptor (30) out - only on the 2003 version -. • Remove the splash ring (82). • Loosen the studs (55) and take the shaft (05) out. • Remove the screws (52) and the washers (53B). •...
-
Page 17: Technical Specifications
9. Technical Specifications TECHNICAL SPECIFICATIONS. motor acr. IEC sealing shaft impeller diameter weight 50 Hz [kW] with motor PUMP TYPE seal diameter 50 Hz. 60 Hz [Kg] (*) 2900 min 0,37 ES - 2003 ES - 2107 0,75 ES - 2222 ES - 2222A ES - 2340 ES - 2340B... -
Page 18: Estampinox Es And Er Pump Dimensions
Estampinox ES pump dimensions. Motor GAS/BSP ∅ ∅ ∅ ∅ TYPE LL M Tam. 0,37 1" ¾" 270 60 330 71 100 36 163 108 90 45 140 112 70 ES - 2003 ES - 2107 0,75 1½" 1" 282 63 345 80 110 50 162 125 100 50 160 125 82,5 ES - 2222 1½"... -
Page 19: Estampinox Efh Pump Dimensions
Estampinox EFH pump dimensions. Motor GAS/BSP φ φ φ φ TYPE frame EFH - 2003 0,37 1" ¾" 112 135 0,75 1½" 1" 220 100 125 100 125 153 EFH - 2107 EFH - 2222 1½" 1½" 64 234 125 150 100 140 170 EFH - 2222A EFH - 2340... -
Page 20: Estampinox Efh Pump Motor Coupling Dimensions
Estampinox EFH pump motor coupling dimensions. EFH-2003 Motor TYPE frame EFH - 2003 EFH - 2107 EFH - 2222 EFH - 2222A EFH - 2340 EFH - 2340B EFH - 2355 EFH - 2355A 9. Estampinox Technical Specifications 9.4 ED. 16.3/98... -
Page 21: Estampinox Efn Pump Dimensions
Estampinox EFN pump dimensions. PUMP Motor frame DNa DNi BD TAP TYPE 15.88 EFN – 2003 1” 1” 149.2 114.3 143 / 145TC 22.23 15.88 EFN - 2107 1½” 1½” 149.2 114.3 143 / 145TC 22.23 EFN - 2222 143 / 145TC 22.23 149.2 114.3 1½”... -
Page 22: Estampinox Es Pump
Estampinox ES pump. 9. Estampinox Technical Specifications 9.6 ED. 16.3/98... -
Page 23: Parts List Estampinox Es
Parts list Estampinox ES. Quantity for each type of pump. Position Description 2003 2107 2222 / 2222A 2340 / 2340B 2355 / 2355A Material Pump housing AISI - 316 Impeller AISI - 316 Pump cover AISI - 316 Motor lantern Aluminium Mechanical seal -rotating part- Mechanical seal -stationary part-... -
Page 24: Estampinox Er Pump
Estampinox ER pump. 9. Estampinox Technical Specifications 9.8 ED. 16.3/98... -
Page 25: Parts List Estampinox Er
Parts list Estampinox ER. Quantity for each type of pump. Position Description 2003 2107 2222 / 2222A 2340 / 2340B 2355 / 2355A Material Pump housing AISI - 316 Impeller AISI - 316 Pump cover AISI - 316 Lantern Aluminium Pump leg AISI - 304 Mechanical seal -rotating part-... -
Page 26: Estampinox Efh Pump
Estampinox EFH pump. 9. Estampinox Technical Specifications 9.10 ED. 16.3/98... -
Page 27: Parts List Estampinox Efh
Estampinox EFH. Parts list Quantity for each type of pump. Position Description 2003 2107 2222 / 2222A 2340 / 2340B 2355 / 2355A Material Pump housing AISI - 316 Impeller AISI - 316 Pump cover AISI - 316 Lantern GG-15 Lantern flange GG-15 Shaft... -
Page 28: Estampinox Efn Pump
Estampinox EFN pump. 9. Estampinox Technical Specifications 9.12 ED. 16.3/98... -
Page 29: Parts List Estampinox Efn
Parts list Estampinox EFN. Quantity for each type of pump. Position Description 2003 2107 2222 / 2222A 2340 / 2340B 2355 / 2355A Material Pump housing AISI - 316 Impeller AISI - 316 Pump cover AISI - 316 Lantern GG-15 Counter-flange GG-15 Shroud... -
Page 30: Cleaning And Disinfection
10. Cleaning and Disinfection GENERAL CONSIDERATIONS. Cleaning and disinfection of the installations is necessary and mandatory on completing any manufacturing process in the food industry. The use of an installation which is NOT cleaned or disinfected can cause contamination of the products. The cleaning cycles as well as the chemical products and procedures used will vary depending on the product and the manufacturing process.
