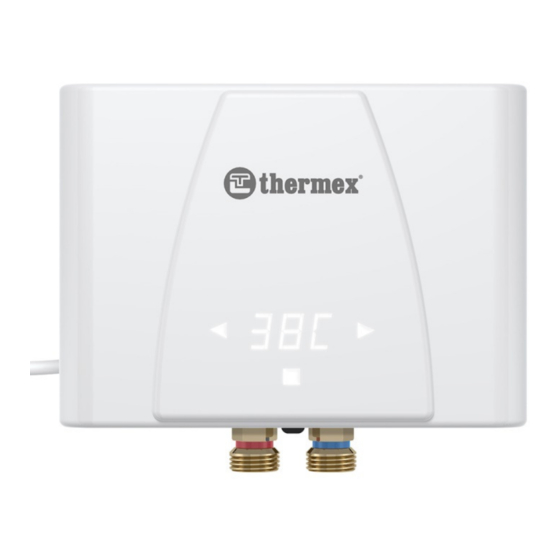

- Page 1 USER MANUAL THERMEX TREND Electric instant water heater...
-
Page 2: Dear Customer
DEAR CUSTOMER! Congratulations and thank you for choosing our instant water heater. The instruction contains important information about commissioning, switching the device on and maintenance. To ensure your safety and that of others we recommend you read through this safety manual care-fully. Please refer to the back of the manual for details about thewar-ranty. -
Page 3: Complete Set
Old appliances must not be disposed of in your household waste! Please bring old appliances to the appropriate recycling center nearest to you. Model Thermex Trend 4500 and 6000 do not have plug and need to be connected with single 220V supply directly. - Page 4 Blue = cold water entry side (for filling) Red = hot water exit side (hot water demand) The Thermex Trend 4500 and 6000 devices are designed for use normal pressure systems. This system allows water to be drawn from multi point use.
- Page 5 Installation as undersink cable model Switch off the power supply, then prepare the 220V ~ single phase power cord without plug, make sure the length no less than 300mm. 1. Mount the bracket on the wall and fix use two screws. 2.
- Page 6 Installation as oversink cable model Switch off the power supply, then prepare the 220V ~ single phase power cord without plug, make sure the length no less than 300mm. 1. Mount the bracket on the wall and fix use two screws. 2.
- Page 7 Water connection 1 – water heater; 2 – hot water outlet; 3 – hot water highway; 4 – cold water inlet; 5 – cold water highway; 6 – shutoff valve (not in complete set); 7 – water mixer (not in complete set), 8 – touchscreen panel.
- Page 8 Technical specifications Model Trend 4500 Trend 6000 Electric supply 230 V ~ 50 Hz 230 V ~ 50 Hz Nominal power rating 4500 W 6000 W Nominal current 25 А 32 А Recommended UPS 30 mА Flow rate (∆t=25℃) 2.6 l/min 3.4 l/min...
-
Page 9: Operation
If IEWH do not use in the winter time and there is water freezing possibility it’s recommended to turn off the power and drain the water from IEWH. Trend 4500 / 6000 operation: The water heater has temperature control from 35°C to 50°C. -
Page 10: Maintenance And Care
Step 3. To turn off the water heater close the hot water tap on the mixer, the pressure sensor will automatically disconnect power supply. The temperature LED will switch off immediately, the touch keys will stop illumination after 3 seconds. Note: Temperature settings will be saved for the next power on. -
Page 11: Troubleshooting
TROUBLESHOOTING Symptom: No heat, indicator light off Cause Remedy Electric supply is off Turn on the main circuit breaker. Ensure that the minimum water pressure (0.05 MPa) to switch on the device is met. No or low water flow Also check that the inlet filter screen is clear from any debris. -
Page 12: Warranty Conditions
WARRANTY CONDITIONS Warranty The rights under this manufacturer’s warranty shall apply in addition to the buyer's statutory rights. This warranty shall in no way restrict the buyer’s statutory rights. Entitlement The claiming of rights under this warranty shall be subject to the submis-sion of the respective proof of purchase.
