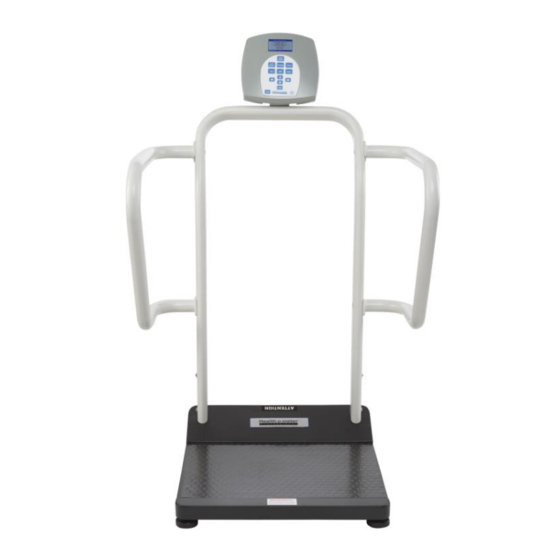

- Page 1 1100KL / 1100KG Digital Platform Scale Equipped with Everlock™ E112697 User Instructions PELSTAR, LLC 9500 West 55 St. McCook, IL 60525-7110 USA www.homscales.com © Pelstar, LLC 2018 P/N UM1100KL_1100KG_E_REV20180717...
-
Page 2: Table Of Contents
Model 1100KL / 1100KG ® Thank you for purchasing this Health o meter Professional product. Please read this manual carefully, and keep it for easy reference or training. TABLE OF CONTENTS Cautions and Warnings ..................... 3 Specifications ......................4 Certifications / Connectivity / Disposal ..............5 Assembly Instructions .................... -
Page 3: Cautions And Warnings
Consult Customer Service or a field service technician for help. In no event whatsoever shall Pelstar, LLC be liable for damages or injuries whatsoever arising out of or connected with the assembly, use, or misuse of its products. -
Page 4: Specifications
SPECIFICATIONS General This scale uses highly sophisticated microprocessor technology. Each precision scale is designed to provide accurate, reliable and repeatable weight measurements. This scale uses motion-sensing weighing technology to determine the actual weight of a moving patient. The 1100KL displays weight in pounds (lb) or kilograms (kg). Refer to page 11 to learn more about configuring the weight measuring unit setting. -
Page 5: Certifications / Connectivity / Disposal
CERTIFICATIONS / CONNECTIVITY / DISPOSAL Certification Pelstar, LLC has been officially certified as the manufacturer ® of Health o meter Professional medical devices. The Pelstar, LLC quality assurance system covers the development, production, sales and service of medical scales and measuring systems. -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before Assembly Carefully inspect the carton for shipping damage before unpacking. If damage is found, contact ® your shipper or a Health o meter Professional representative immediately at 1-800-815-6615. Claims must be filed with the shipper as soon as possible after receipt of the package. The following information details what you will find inside the main carton as you unpack the parts for assembly. - Page 7 ASSEMBLY INSTRUCTIONS (CONT.) ® Health o meter Professional Scales recommends that assembly be performed by two people. Warning: Do not drop scale, as this can permanently damage the load cells. Caution: Do not insert the batteries into the display head until it is mounted onto the scale.
- Page 8 ASSEMBLY INSTRUCTIONS (CONT.) 5. Align the left and right side handrails with the mounting holes in the center handrail. Insert the (4) M10 1.5 x 40mm bolts through the side handrails into the mounting holes in the center handrail. Lightly tighten using the 8mm Allen wrench.
- Page 9 ASSEMBLY INSTRUCTIONS (CONT.) Obtain the plastic bracket cover. Route the load cell cable to the side and then between the washer and the silver lip in the bracket. Clip the load cell cable into the divot in the middle of the cover. Obtain the two remaining M4 x 0.7 x 10mm machine screws.
-
Page 10: Set-Up Instructions
SET-UP INSTRUCTIONS Powering the Scale Plug the AC adapter into the power adapter jack (the jack is located on the rear of the display head), then plug the scale’s AC adapter into the power source. Warning: To avoid a safety hazard, do not use an unspecified AC adapter. Only use the ®... - Page 11 SET-UP INSTRUCTIONS (CONT) The scale must be powered on before performing any of the following operations. Press to turn on the scale. Unit of Measure Configuration / Unit Lock (This feature is not available on KG models.) Unit The weight measuring unit (pounds/LB or kilograms/KG) can be changed by pressing Follow this procedure to lock the weight measuring unit into LB or KG only.
- Page 12 SET-UP INSTRUCTIONS (CONT) Setting Sound Options The display can be set to stay silent or beep while operating the scale. Follow this procedure to set the preferred option. Help 1. Press to access the Help menu options. 2. While in the Help menu, press to select “Set Options”.
- Page 13 SET-UP INSTRUCTIONS (CONT) Setting Auto Zero Option When a scale is set to zero, it creates a reference point for weights that are placed on it. There are two approaches to how this can take place. This option allows the user to select whether the scale will re-set itself to ZERO each time it is powered up or whether it will use the zero reading from the last time it was zeroed.
-
Page 14: Everlock™ Instructions
EVERLOCK™ INSTRUCTIONS Everlock™ (This feature is not available on KG models.) The Everlock™ feature allows the scale to be permanently locked in KG (metric) or LB (imperial) units. When activating this feature, the Unit button will become disabled. This lock is permanent and can only be reversed at the factory. -
Page 15: Operating Instructions
OPERATING INSTRUCTIONS and selecting “Key Definitions” in the Help Key definitions can also be found by pressing submenu. Keypad Function Description Powers scale on and off. Zeroes the scale prior to a weighing. Also used as a screen navigation key to exit a Zero/ display menu. - Page 16 OPERATING INSTRUCTIONS Weighing a Patient 1. Make sure there is nothing on the weighing platform and the display shows “0.0”. 2. Ask the patient to step on the scale. The scale will begin to display the patient’s weight and the word “PROCESSING”. Depending on the movement of the patient on the scale, it may take several seconds for the scale to lock onto the weight.
- Page 17 OPERATING INSTRUCTIONS (CONT) BMI Function 1. Make sure there is nothing on the weighing platform and the display shows “0.0”. 2. Ask the patient to step on the scale. The scale will begin to display the patient’s weight and will lock on the patient’s weight when completed.
- Page 18 OPERATING INSTRUCTIONS (CONT) Tare Function When using this scale, the weight of an object, such as a portable oxygen tank, can be subtracted from the total weight in order to determine the weight of the patient alone. The Tare Function automatically performs this subtraction. The scale allows a tared weight to be entered manually by using the keypad, or automatically, as outlined in this section.
- Page 19 OPERATING INSTRUCTIONS (CONT) Weighing a Patient and Taring a Known Weight / Pre-Tare Pre-Tare can be performed within the following weight limits: 0.2 lb - 200 lb / 0.1 kg – 91 kg) 1. Wait until “0.0” appears on the display. Tare 2.
- Page 20 OPERATING INSTRUCTIONS (CONT) Parent/Child Function ® The Parent/Child function on Health o meter Professional scales provides the convenience of weighing a small child or infant while being held by a parent. Follow these simple steps to subtract the parent’s weight from the total so only the child’s weight is displayed. 1.
-
Page 21: Maintenance And Cleaning
MAINTENANCE AND CLEANING Maintenance The following pages provide instructions for maintenance, cleaning, calibration, and troubleshooting for the scale. Maintenance operations other than those described in this manual should be performed by qualified service personnel. Caution: Before first use, or after long periods of non-use, check the scale for proper operation and function. -
Page 22: Calibration
CALIBRATION This scale has been factory calibrated, and does not require calibration prior to use. Calibration of your scale can be performed using calibrated kilogram (kg) or pound (lb) weight standards. Minimum calibration is 200 lb / 100 kg. Maximum calibration weight is 1000 lb / 454 kg. - Page 23 CALIBRATION (CONT) 7. When the zeroing process is complete the display will prompt for entry of the calibration weight. Minimum calibration is 200 lb / 100 kg. Maximum calibration weight is 1000 lb / 454 kg. Calibration weight can be adjusted in 10 lb or 10 kg increments.
-
Page 24: Troubleshooting
TROUBLESHOOTING Troubleshooting Before contacting service personnel, refer to the following instructions to check and to ® correct any failures. For further assistance, contact Health o meter Professional Scales Technical Support at 1-800-638-3722. Symptom Possible Cause Corrective Action 1. Dead Battery 1. -
Page 25: Warranty
The original purchaser of the product must have proof of purchase to receive warranty service. Please save your invoice or receipt. Pelstar dealers or retail stores selling Pelstar products do not have the right to alter, or modify or any way change the terms and conditions of this warranty.
