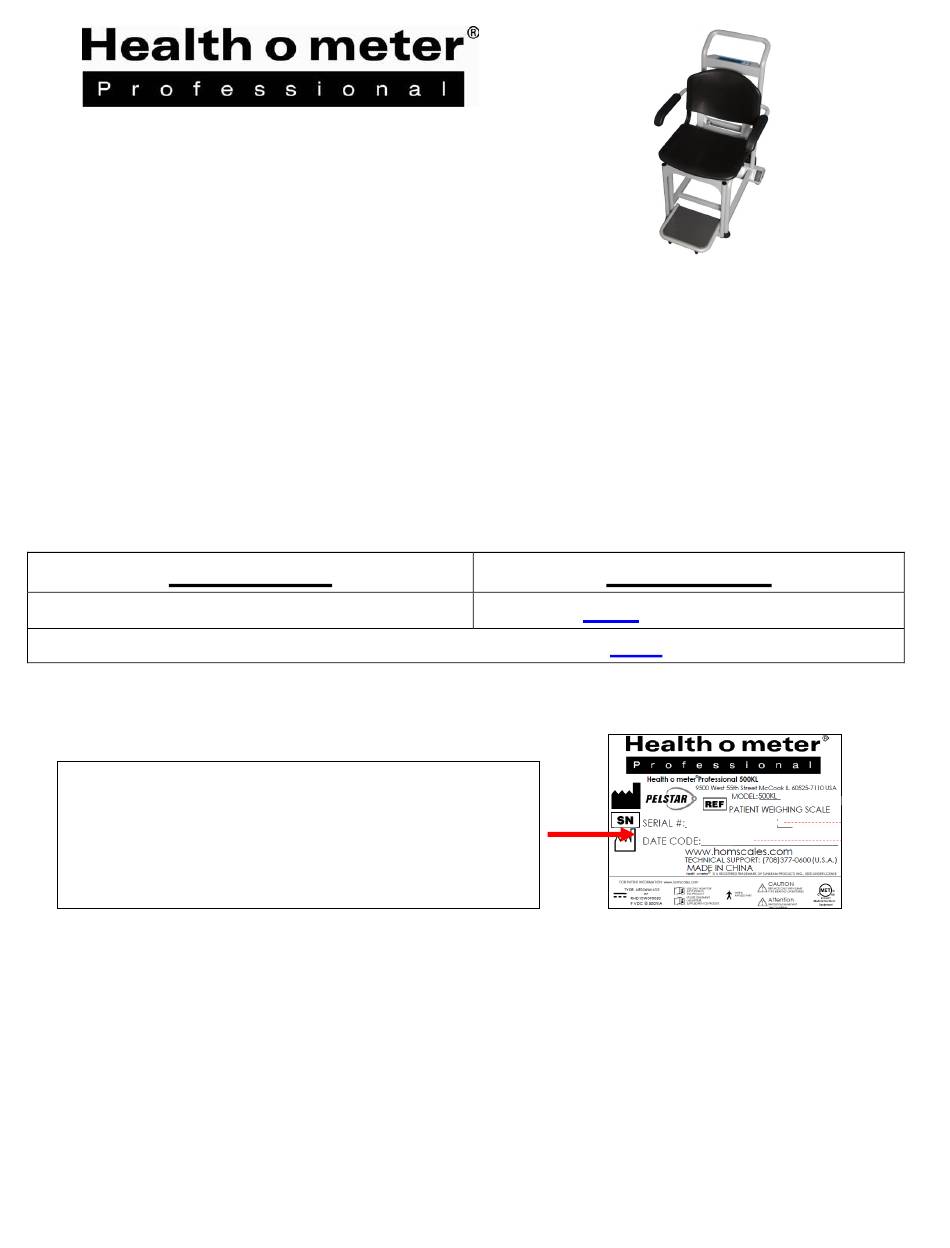

Model 2595KL / 2595KG
Digital Chair Scale
Find the date code on your scale's product label and
follow this chart to select the version specific user
instructions for your scale.
Busque el código de fecha en la etiqueta del producto de su báscula y siga este
cuadro para seleccionar las instrucciones de usuario específicas de la versión
para su báscula. Haga clic en el enlace o salte a la página que se muestra.
Date Codes
Link/Page #
all date codes ending in 25
Click
here
for skip to page 2
For all other date cod
es not shown above, click
here
or skip to page
34
Date code can be found on the product label on the back of
the display head.
El código de fecha se puede encontrar en la etiqueta del
1721
producto en la parte posterior de la pantalla.
Le code de date se trouve sur l'étiquette du produit à
l'arrière de la tête d'affichage.
P/N 2595KL 2595KG 82-00175 REV A
