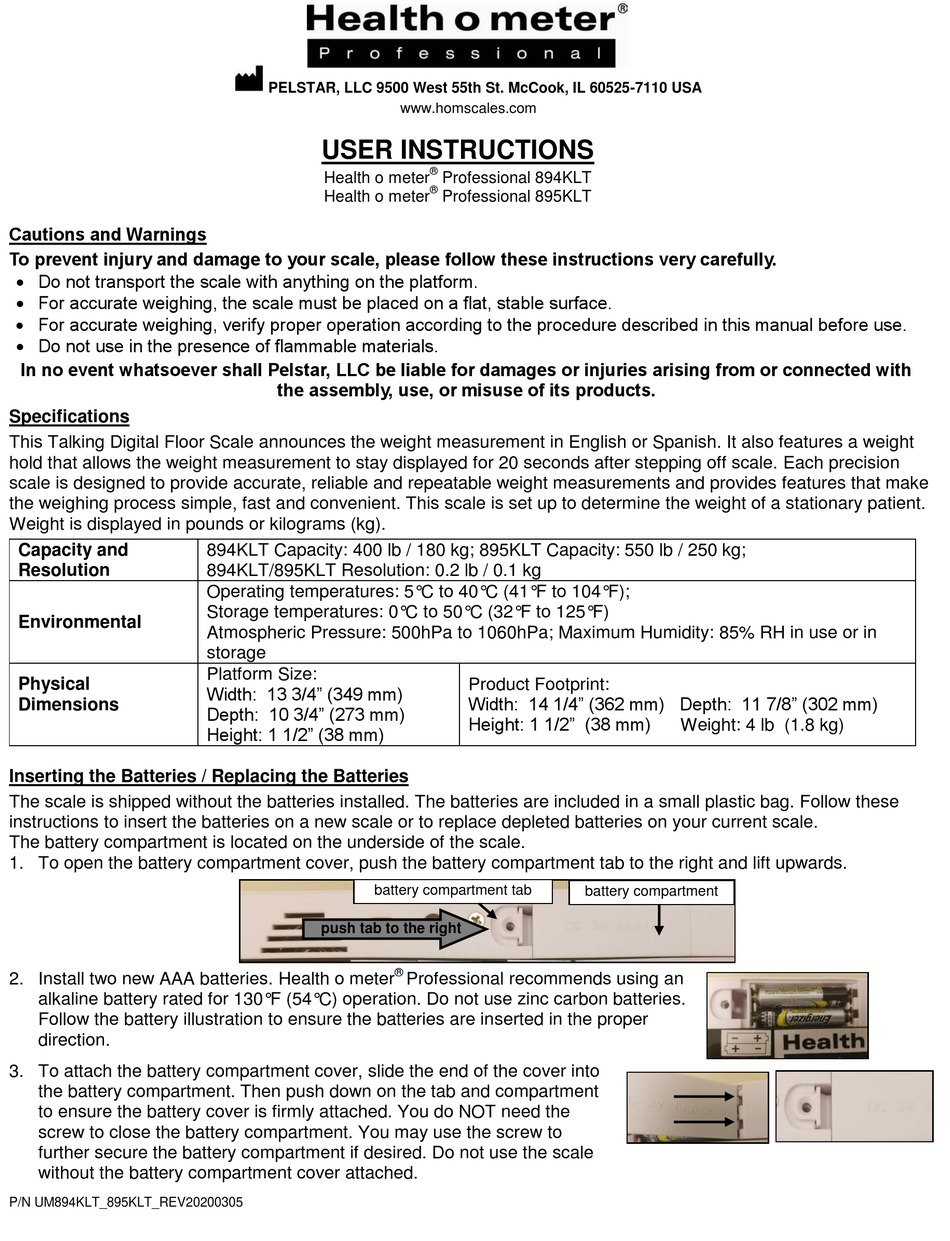

Pelstar Health o meter Professional 894KLT User Instructions

Cautions and Warnings

To prevent injury and damage to your scale, please follow these instructions very carefully.
 Do not transport the scale with anything on the platform.
 For accurate weighing, the scale must be placed on a flat, stable surface.
 For accurate weighing, verify proper operation according to the procedure described in this manual before use.
 Do not use in the presence of flammable materials.
In no event whatsoever shall Pelstar, LLC be liable for damages or injuries arising from or connected with

Specifications

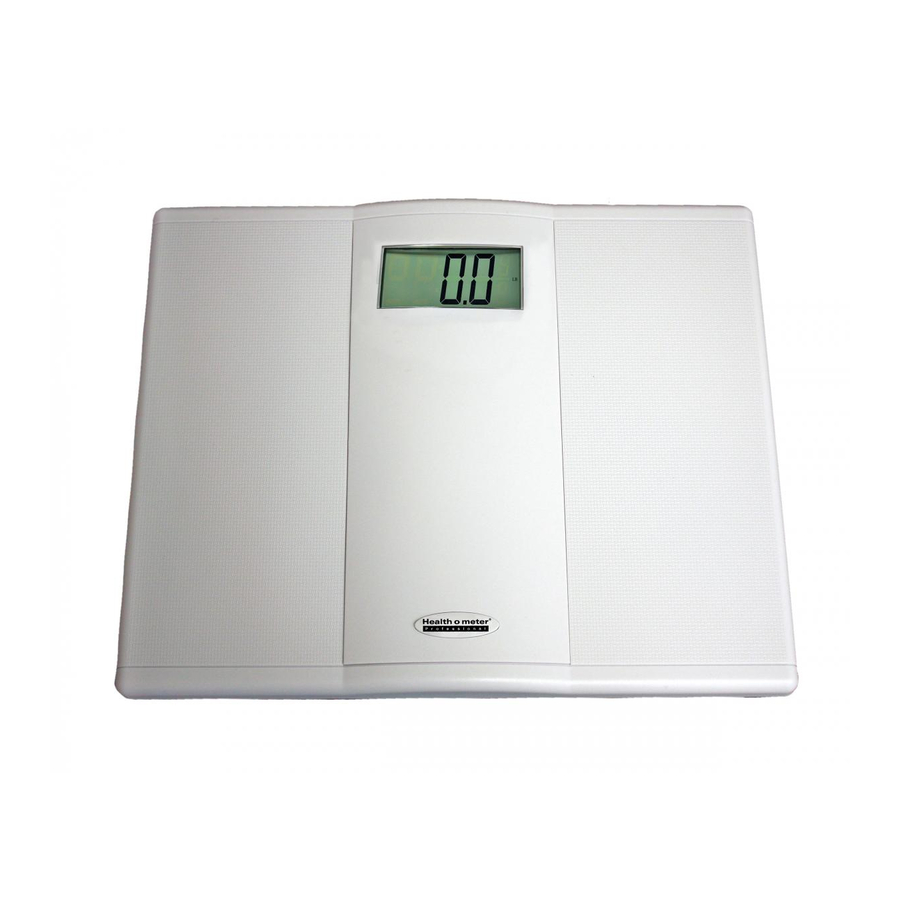

This Talking Digital Floor Scale announces the weight measurement in English or Spanish. It also features a weight
hold that allows the weight measurement to stay displayed for 20 seconds after stepping off scale. Each precision
scale is designed to provide accurate, reliable and repeatable weight measurements and provides features that make
the weighing process simple, fast and convenient. This scale is set up to determine the weight of a stationary patient.
Weight is displayed in pounds or kilograms (kg).
Capacity and
Resolution

Environmental

Physical
Dimensions

Inserting the Batteries / Replacing the Batteries

The scale is shipped without the batteries installed. The batteries are included in a small plastic bag. Follow these
instructions to insert the batteries on a new scale or to replace depleted batteries on your current scale.
The battery compartment is located on the underside of the scale.
1. To open the battery compartment cover, push the battery compartment tab to the right and lift upwards.
2. Install two new AAA batteries. Health o meter
alkaline battery rated for 130°F (54°C) operation. Do not use zinc carbon batteries.
Follow the battery illustration to ensure the batteries are inserted in the proper
direction.
3. To attach the battery compartment cover, slide the end of the cover into
the battery compartment. Then push down on the tab and compartment
to ensure the battery cover is firmly attached. You do NOT need the
screw to close the battery compartment. You may use the screw to
further secure the battery compartment if desired. Do not use the scale
without the battery compartment cover attached.
P/N UM894KLT_895KLT_REV20200305
PELSTAR, LLC 9500 West 55th St. McCook, IL 60525-7110 USA
USER INSTRUCTIONS
Health o meter
Health o meter
the assembly, use, or misuse of its products.
894KLT Capacity: 400 lb / 180 kg; 895KLT Capacity: 550 lb / 250 kg;
894KLT/895KLT Resolution: 0.2 lb / 0.1 kg
Operating temperatures: 5°C to 40°C (41°F to 104°F);
Storage temperatures: 0°C to 50°C (32°F to 125°F)
Atmospheric Pressure: 500hPa to 1060hPa; Maximum Humidity: 85% RH in use or in
storage
Platform Size:
Width: 13 3/4" (349 mm)
Depth: 10 3/4" (273 mm)
Height: 1 1/2" (38 mm)
battery compartment tab
push tab to the right
www.homscales.com
®
Professional 894KLT
®
Professional 895KLT
Product Footprint:
Width: 14 1/4" (362 mm) Depth: 11 7/8" (302 mm)
Height: 1 1/2" (38 mm)
®
Professional recommends using an
Weight: 4 lb (1.8 kg)
battery compartment
