- Page 1 Wireless Communication Set Up Instructions for “BT” Model Scales PELSTAR, LLC 9500 West 55th St. McCook, IL 60525-7110 USA www.homscales.com © Pelstar, LLC 2021 P/N UMBTSetUpInstructions REV20210811...
-
Page 2: Table Of Contents
® Thank you for purchasing this Health o meter Professional product. Please read this manual carefully and keep it for easy reference or training. TABLE OF CONTENTS PRODUCT OVERVIEW ....................3 ® SET UP FOR WELCH ALLYN CONNEX DEVICE ............5 ®... -
Page 3: Product Overview

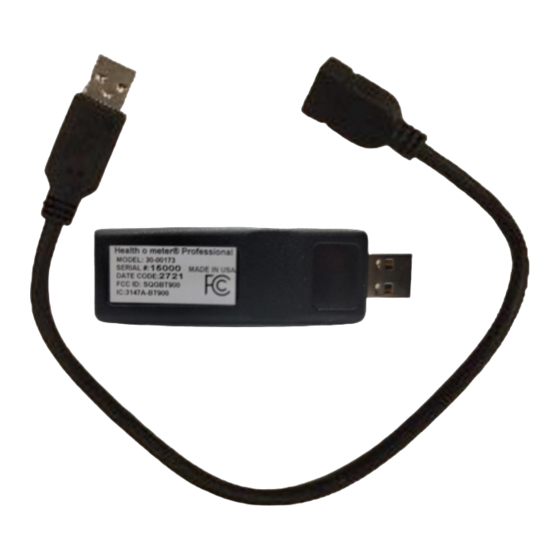

PRODUCT OVERVIEW Product Overview Your “BT” version scale includes a built-in wireless module. Using the included hardware, the ® ® scale can transmit data to a Windows PC or a Welch Allyn device. See below for set up instructions. Transmitting Data to a Windows ®... - Page 4 PRODUCT OVERVIEW (CONT.) Hardware Included (Note: the included hardware is only used when connecting to a Welch Allyn monitor. No ® hardware is needed when connecting to a Windows USB Wireless Dongle ® Welch Allyn Connex Vital Signs Monitor (CVSM) Quick Start Guide USB Extender Cable 1 ft.
-
Page 5: Set Up For Welch Allyn Connex Device
SET UP FOR WELCH ALLYN CONNEX DEVICE ® The following instructions illustrate the hardware set up for connecting to a Welch Allyn ® Connex Vital Signs Monitor (CVSM). USB ports on the Connex Spot and Integrated Wall Systems are located on the underside of the monitor. 1. -
Page 6: Set Up For Windows Pc
® SET UP FOR WINDOWS ® While Health o meter Professional scales use proprietary technologies for reliably ® communicating with other devices, it can also be used with many Bluetooth interfaces. To see ® ® if your Bluetooth device is compatible with the Health o meter Professional protocols, follow these steps. - Page 7 ® SET UP FOR WINDOWS PC (CONT.) 4. Add a device window will open. In the Add a device window, click on “Bluetooth ® ”. 5. The PC will search for devices. In this window, look for the device name starting with “HOM”...
- Page 8 ® SET UP FOR WINDOWS PC (CONT.) 6. If pairing is successful, it will show as paired. Click on “Done” and the pairing is complete. 7. In the main “Bluetooth ® & Other Devices” window, on the right side of the window, find ®...
- Page 9 ® SET UP FOR WINDOWS PC (CONT.) 8. The settings window will open. In this window, click on the “COM Ports” tab. 9. In the COM Ports tab, note down the COM Port Number shown next to the HOM Scale “Outgoing”.
-
Page 10: Troubleshooting
TROUBLESHOOTING USB Wireless Dongle Fault Symptoms Problem Possible Cause Suggested Action USB wireless dongle Check that the distance between the scale ® out of communication and Connex device is less than ~328ft range (100m) Check that the BT Device Number on back of Serial number on wireless the scale’s display head matches the Serial dongle does not match the... -
Page 11: Regulatory Information
REGULATORY INFORMATION FEDERAL COMMUNICATION COMMISSION (FCC) STATEMENT – BT900 MODULE This EUT is in compliance with SAR for general population/uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C. The BT900 is fully approved for mobile and portable applications. -
Page 12: Warranty
The original purchaser of the product must have proof of purchase to receive warranty service. Please save your invoice or receipt. Pelstar dealers or retail stores selling Pelstar products do not have the right to alter, or modify or in any way change the terms and conditions of this warranty.
