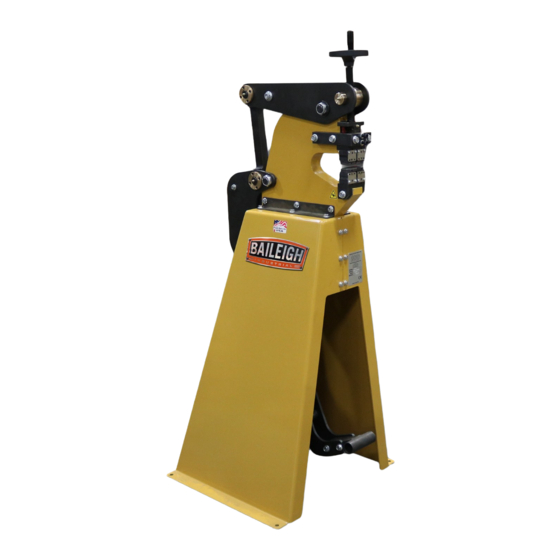

- Page 1 OPERATOR’S MANUAL METAL FORMING SHRINKER STRETCHER MODEL: MSS-14F (B8850) Rev. 03/2017 © 2017 Baileigh Industrial, Inc.
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ......................1 GENERAL NOTES ......................1 SAFETY INSTRUCTIONS ....................2 SAFETY PRECAUTIONS ....................4 Dear Valued Customer: ....................4 TECHNICAL SPECIFICATIONS ..................6 UNPACKING AND CHECKING CONTENTS ..............7 Cleaning ........................7 TRANSPORTING AND LIFTING ..................8 INSTALLATION ....................... -
Page 3: Introduction
INTRODUCTION The quality and reliability of the components assembled on a Baileigh Industrial machine guarantee near perfect functioning, free from problems, even under the most demanding working conditions. However if a situation arises, refer to the manual first. If a solution cannot be found, contact the distributor where you purchased our product. -
Page 4: Safety Instructions
Note: This symbol refers to useful information throughout the manual. IMPORTANT PLEASE READ THIS OPERATORS MANUAL CAREFULLY It contains important safety information, instructions, and necessary operating procedures. The continual observance of these procedures will help increase your production and extend the life of the equipment. SAFETY INSTRUCTIONS LEARN TO RECOGNIZE SAFETY INFORMATION This is the safety alert symbol. - Page 5 SAVE THESE INSTRUCTIONS. Refer to them often and use them to instruct others. PROTECT EYES Wear safety glasses or suitable eye protection when working on or around machinery. PROTECT AGAINST NOISE Prolonged exposure to loud noise can cause impairment or loss of hearing.
-
Page 6: Safety Precautions
Baileigh does not recommend or endorse making any modifications or alterations to a Baileigh machine. Modifications or alterations to a machine may pose a substantial risk of injury to the operator or others and may do substantial damage to the machine. - Page 7 7. Dressing material edges. Always chamfer and deburr all sharp edges. 8. Do not force tool. Your machine will do a better and safer job if used as intended. DO NOT use inappropriate attachments in an attempt to exceed the machines rated capacity. 9.
-
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Mild Steel Capacity 14ga. (0.0747” [1.897mm]) Aluminum Capacity 12ga. (0.0808” [2.052mm]) Movement Manual, Foot Pedal Throat Depth 7" (178mm) Stand Included Shipping Weight 300 lbs. (136kg) Shipping Dimensions 60" x 44" x 66" (1524 x 1118 x 1677mm) Based on a material tensile strength of *60000 PSI –... -
Page 9: Unpacking And Checking Contents
UNPACKING AND CHECKING CONTENTS Your Baileigh machine is shipped complete. Separate all parts from the packing material and check each item carefully. Make certain all items are accounted for before discarding any packing material. WARNING: SUFFOCATION HAZARD! Immediately discard any plastic bags and packing materials to eliminate choking and suffocation hazards to children and animals. -
Page 10: Transporting And Lifting
TRANSPORTING AND LIFTING IMPORTANT: Lifting and carrying operations should be carried out by skilled workers, such as a truck operator, crane operator, etc. If a crane is used to lift the machine, attach the lifting chain carefully, making sure the machine is well balanced. Follow these guidelines when lifting with truck or trolley: •... -
Page 11: Anchoring The Machine
• If long lengths of material are to be fed into the machine, make sure that they will not extend into any aisles. • LEVELING: The machine should be sited on a level, concrete floor. Provisions for securing it should be in position prior to placing the machine. The accuracy of any machine depends on the precise placement of it to the mounting surface. -
Page 12: Getting To Know Your Machine
GETTING TO KNOW YOUR MACHINE Item Description Function Foot Pedal Press treadle the pedal to clamp and release the jaws. Connects the foot pedal to the rocker arm to activate Connecting Linkage the clamping and releasing action for the dies. Gap Adjustment Increases or decrease the jaw gap. -
Page 13: Assembly And Set Up
ASSEMBLY AND SET UP WARNING: For your own safety, DO NOT connect the machine to the power source until the machine is completely assembled and you read and understand the entire instruction manual. Tooling Installation: This set up show how the tools should be installed for shrinking. - Page 14 In this view it shows the top die assemblies removed so you can see the jaw orientation. The jaws with serrations are to be used for shrinking. In this view it will shows how to remove the jaw caps. Insert a screw driver into the machined slot to break the magnetic force.
- Page 15 Once the force from the magnet is released, grab onto the assembly and remove. In this view it shows the jaws installed for stretching. Note that the markings “U” are now pointing together, This is the reversing of the jaws from shrinking.
-
Page 16: Jaws
Here you will see both top and bottom mechanisms installed for stretching. Both show the “U” pointing at each other Also notice that the screw heads (A) point away from the material gap (B). Here is a completed setup for stretching. JAWS •... -
Page 17: Operation
OPERATION WARNING: DO NOT step on the foot pedal without having work material between the jaws. The jaws may chip or break causing injury from flying objects. CAUTION: Always wear proper eye protection with side shields, safety footwear, and leather gloves to protect from burrs and sharp edges. Keep hands and fingers clear of the dies. -
Page 18: Material Selection
Try using the tool with a sample piece of metal to get a feel for how it operates. Place the material in the middle of the jaw box and step down on the foot pedal to form the metal. Work the leading edge of the material first to break down the initial resistance of the metal. -
Page 19: Lubrication And Maintenance
LUBRICATION AND MAINTENANCE WARNING: Make sure the electrical disconnect is OFF before working on the machine. Maintenance should be performed on a regular basis by qualified personnel. Always follow proper safety precautions when working on or around any machinery. • Check daily for any unsafe conditions and fix immediately. •... -
Page 20: Parts Diagram
PARTS DIAGRAM... -
Page 24: Parts List
Parts List Item Part Number Description Qty. ME-PS16-6A001 MAIN FRAME MS16-6A001 MAIN LEVER PS16-7A002 DRIVE SHAFT ME-PS16-6A003 SUPPORT FINGER ME-PS16-6A002 TIE BAR MS16-6A005 CONNECTING ROD PS16-7A009 ACTUATOR SCREW ME-PS16-7A003 SPACER PS16-6A006 SLIDE GIB PS16-6A014 TOP MASTER DIE MOUNT PS16-6A013-V2 JAW INSERT INTERLOCKING PS16-6A005-v2 LOWER BASE PLATE PS-16 TOOLING... - Page 25 M12 X 1.75 X 20 HEX FLANGE 1/4-20 X .50 SHCS M8 X 1.25 X 25 SHCS 1" EXT. RETAINING RING STD. STRAIGHT GREASE ZERK M16 X 2.0 X 30 HEX FLANGE M12 X 1.75 X 40 HEX FLANGE M12 X 1.75 X 30 HEX FLANGE M12 X 1.75 X 35 HEX FLANGE...
- Page 26 NOTES...
- Page 27 NOTES...
- Page 29 General Machinery Safety Instructions Machinery House requires you to read this entire Manual before using this machine. 1. Read the entire Manual before starting 14. Use correct amperage extension cords. machinery. Machinery may cause serious injury if Undersized extension cords overheat and lose not correctly used.
- Page 30 Shrinker Stretcher Safety Instructions Machinery House requires you to read this entire Manual before using this machine. 1. Maintenance. 8. Guards. Make sure all moving parts are Do not operate this machine without the locked down before any inspection, adjustment or correct guards in place.
