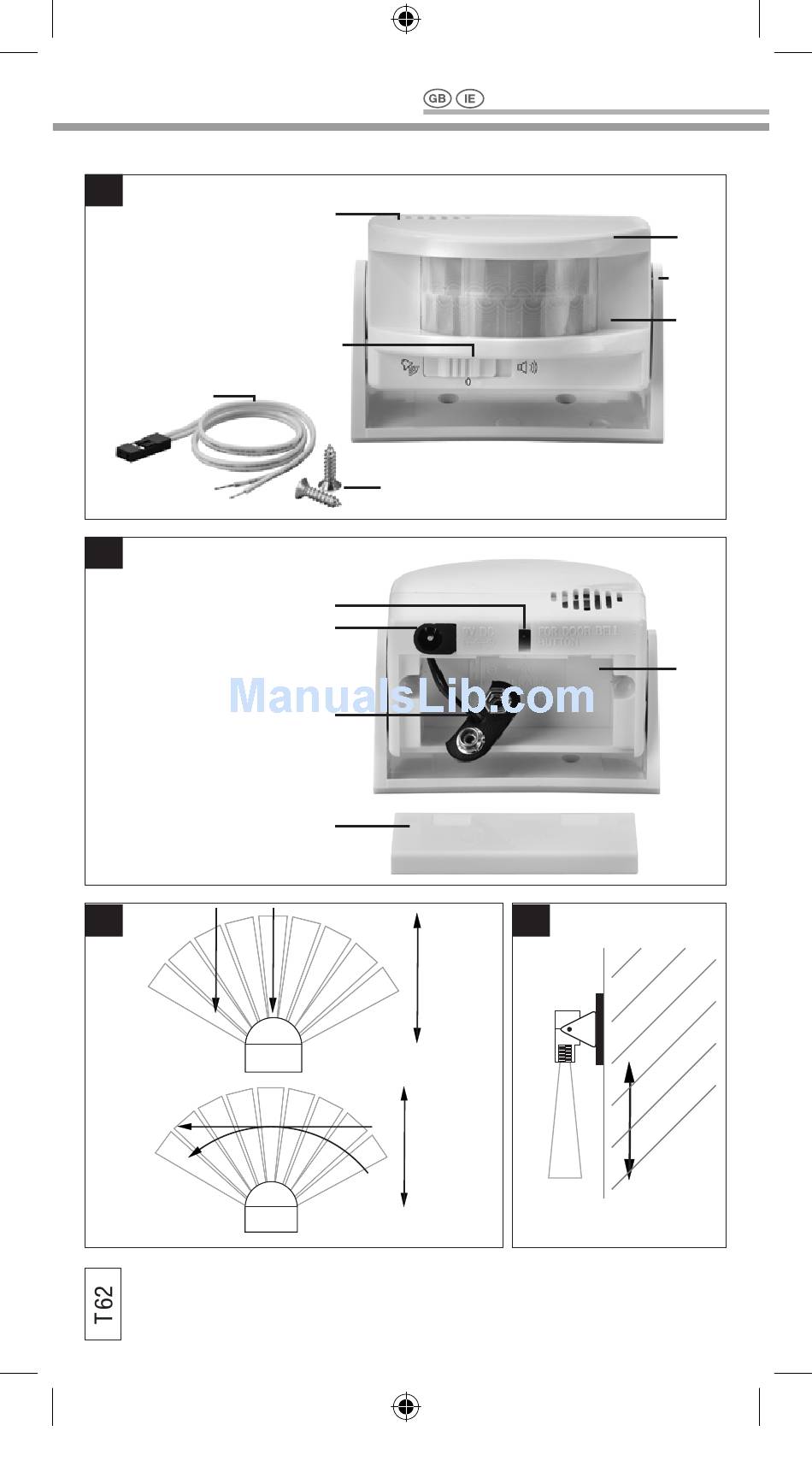

- Page 1 Mini-alarm MA 604 Dexaplan 10 m 100° 2° 10 m 100° MA604_GB.indd 1 12.09.2006 11:32:33 U...
-
Page 2: Proper Use
Operating and safety instructions Introduction Please read these operating instructions thoroughly and carefully. They are part of this product and contain important instructions relating to its operation and handling. Please always observe all safety instructions. Before initial operation, please check that all parts are fitted correctly. -
Page 3: Technical Data
Technical data Infrared sensor with Fresnel lens: passive infrared movement detector (PIR) PIR sensing range (max.): - horizontal: approx. 10 m x 100° (at 20° C) - vertical: approx. 6 m x 2° Power supply: 9 volt block-battery (9 V block 6LR61, alkaline) (not included in the delivery scope) Current consumption: max. -
Page 4: Initial Operation
• Make sure that the alarm signal is not triggered close to the ears. This can cause serious damage to the hearing. • Please handle the connecting cable with care. Install it so that it cannot get dam- aged and does not create a stumbling hazard. Otherwise there is danger to life and a risk of injury and fire. -
Page 5: Power Supply
Preparation and material required The stated materials are not included in the delivery scope. The information provided here is non-binding and intended as a guide. The quality of the material depends on individual local requirements. You will need: Either a 9 volt block-battery 6LR61, alkaline, or a 9 volt mains adapter, min. 200 mA (positive internal pole of the plug) for power supply (not included in the delivery scope). -
Page 6: Installation
Installation Danger: Take care not to damage any gas, electricity or telecommunication lines when fitting the device. Danger to life and risk of injury and damage. Tip: to cut costs, connect the device for continuous operation to a 9 volt mains adapter for the power supply. -
Page 7: Troubleshooting
Connecting an external bell push or other closing contact. Danger Do not connect any other energy source to the socket of the bell push contact cable. Otherwise there is danger to life and a risk of fire. Handle the cable with care. Install it so that it cannot get damaged and does not create a stumbling hazard. -
Page 8: Warranty
Service Information on dealing with problems can be found under www.dexaplan.com. If you have any questions, please contact our service office by email (service@dexaplan.de) or by telephone ( 0870 241 3029) ( 1890 851 851). Here you will find all necessary information on service questions such as returns, etc.
