BRAVO
AUTOCLAVES
• Operator's Manual
ref. 97050531 rev. 0 - 04/2012 SD-310/1-EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRAVO 21V and is the answer not in the manual?

Questions and answers

Related Manuals for SciCan BRAVO 21V

Summary of Contents for SciCan BRAVO 21V

  • Page 1 BRAVO AUTOCLAVES • Operator’s Manual ref. 97050531 rev. 0 - 04/2012 SD-310/1-EN...
  • Page 2 TABLE OF CONTENTS INTRODUCTION ...........................1 SyMBOLS uSED IN thE MANuAL............................1 SyMBOLS ON EquIpMENt ..............................1 DISCLAIMERS ..................................1 GENERAL WARNINGS .................................2 CONTENTS OF THE PACKAGE ......................3 DIMENSIONS AND WEIGht ..............................3 DESCRIptION OF thE CONtENtS ............................3 hANDLING thE pRODuCt ..............................4 CAp REMOVAL FROM thE tANk BREAthER hOLE (IF NECESSARy) ................4 pRODuCt OVERVIEW .................................5 GENERAL ChARACtERIStICS............................5 FRONt ....................................6...
  • Page 3 SEttING thE LANGuAGE ............................25 (LANGuAGE ON thE BASIC MENu) ...........................25 SEttING thE DAtE ..............................25 SEttING thE tIME ..............................26 SEttING thE pASSWORD ............................26 SEttING thE StERILIzAtION pROGRAMS .......................27 SEttING thE StAND-By MODE ..........................31 SEttING thE pRINtING MODE ..........................32 SEttING thE tANk FILLING MODE ...........................34 ACquISItION OF thE AMBIENt pRESSuRE ......................35 ADjuStING thE CONtRASt OF thE LIquID CRyStAL DISpLAy ................36 EXIt thE CONFIGuRAtION MODE ...........................36...
  • Page 4 APPENDIx H – LIMITED WARRANTY ....................91 SciCan Inc. BRAVO and your Infection Control Specialist are a trademarks of SciCan Ltd. All other trademarks referred to in this manual are the 701 technology Drive property of their respective owners. Canonsburg, pA 15317...

  • Page 5: Introduction

    Do not permit any person other than certifi ed personnel to supply parts for, service or maintain your Bravo. SciCan shall not be liable for incidental, special or consequential damages caused by any maintenance or services performed on the Bravo by a third party, or for the use of equipment or parts manufactured by a third party, including lost profi ts, any commercial loss, economic loss, or loss arising from personal injury.

  • Page 6: General Warnings

    GENERAL WARNINGS please observe the following precautions in order to avoid injury or property damage: – use ONLy distilled water of high quality. WARNING THE USE OF WATER OF INADEqUATE qUALITY CAN SEvERELY DAMAGE THE DEvICE. SEE APPENDIx A, TECHNICAL CHARACTERISTICS IN THIS REGARD. –...

  • Page 7: Contents Of The Package

    14 - 15 In addition to the steriliser, the package contains: No. 3 stainless steel wire instrument tray (BRAVO 17 includes 3 trays, BRAVO 17V/21V includes 5 trays); Stainless steel wire tray support; Operating documentation (with CD-ROM); uSB key for data storage;...

  • Page 8: Handling The Product

    hANDLING thE Where possible, the packaged product must be handled using suitable mechanical means (forklift truck, transpallet, etc.) and following the instructions shown on the package. PRoDUCt In the case of manual handling, the product must be lifted by two persons using the handles cut in the side of the box.

  • Page 9: Product Overview

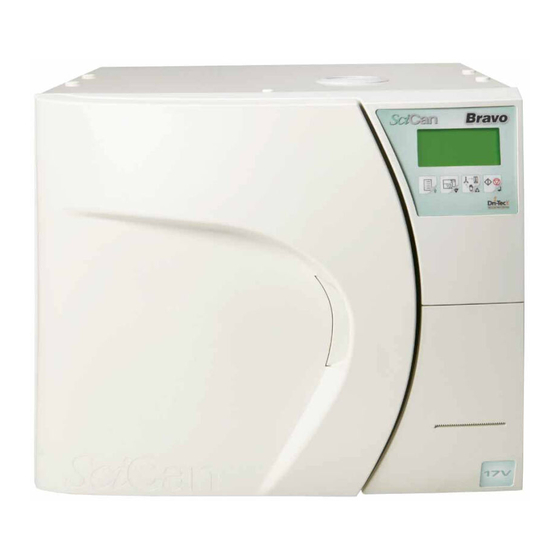

    PRoDUCt Bravo is SciCan's revolutionary chamber autoclave designed with safety, performance, flexibility and ease of use in mind. ovERvIEW It is a sophisticated yet easy-to-use sterilizer with a wide range of configuration options and patented operating devices designed to satisfy every need for sterilizing medical and dental tools, guaranteeing the maximum performance under all conditions.

  • Page 10: Front

    FRoNt LCD display and con- trol panel On/Off switch Door Service compartment access panel printer paper output slot Sterilization chamber Door microswitch Motorized closing sy- stem Bacteriological filter uSB port Exhaust filter Encased printer (op- tional) Service compartment open used water drain quick connector Distilled water fill quick connect Distilled water tank drain quickcoupling (SERVICE only)

  • Page 11: Rear

    REAR Distilled water tank vent hole version with automatic loading with pump Safety valve heat exchanger power cord Connection for auto- matic loading of the load tank Connection rectly draining used water tank Band heating element safety thermostat and manual rearm Steam generator safety thermostat and manual rearm Mains fuses...

  • Page 12: Control Panel

    CoNtRoL PANEL Liquid Crystal Display (LCD)  Command keys  the function of the command keys differ according to operating mode of the equipment. NORMAL mode SETUP mode Enter, confi rmation of the value/option se- Cycle Start/Stop lected value increment / Forward scroll of the Sterilization cycle selection menu options + + + + + + + + +...

  • Page 13: Sample Operating Cycle

    SAmPLE oPERAtING the Bravo’s sterilization program is a succession of phases, each with a specific purpose. CyCLE After loading the material in the chamber, closing the door, selecting the program and starting the cycle (the door opening mechanism locks automatically), the standard program (for porous materials, 134 °C at 4 minutes, for example) uses the following sequence: preheats the generator and sterilization chamber;...

  • Page 14: Installation

    INSTALLATION Correct and careful installation will ensure your Bravo functions properly, protects operators from physical injury and protects property from damage. INtRoDUCtIoN Dimensions and weight 17 and 17v A. height (total, excluding 420 mm / 420 mm / handles) 16.5" 16.5"...

  • Page 15: General Installation Precautions

    GENERAL to ensure operator safety and the correct performance of the device: INStALLAtIoN – Install the sterilizer on a flat level surface strong enough PRECAUtIoNS to support the device's weight, and use the leveling feet to compensate for an irregular surface; –...

  • Page 16: Managing The Files By Dataflash Sw

    mANAGING thE FILES DataFlash software is a programme for Windows (versions 98, Xp, and Vista) that allows users to download data contained in the uSB key to the pC and then and process that data. by DAtAFLASh SW Launching the program Launch the DataFlash program from its desktop icon, or select the executable program file.

  • Page 17: Saving The Report File

    Saving the Report fi le to save fi les stored on the uSB key to the pC, select the Save key (or File-Save from menu). the three keys and the window menu are disabled during the save process; the mes- sage “Ready”...

  • Page 18: File Name

    File name the files saved on the pC are named “Mocom register”. Each new file is assigned a default name according to the information included in the original file: Es.: 12JM1234_00001_134PRION_190406_1024.dtl File extension “.dtl” (data logger) Cycle start time Cycle start date type of the cycle Cycle counter (launched) Sterilizer's serial number...

  • Page 19: Connecting An External Water Filling Tank

    CoNNECtING AN to avoid having to regularly fill the internal water tank (see Chapter 5 - Instructions for use), it is possible to connect the sterilizer to an optional external tank that the user will less frequently fill, or EXtERNAL WAtER to a commercially-available, water purification system with accumulation tank.

  • Page 20: Direct Connection To A Centralized Draining Point

    DIRECt CoNNECtIoN Follow the instructions shown below for a correct direct connection to a centralized draining point: to A CENtRALIzED DRAINING PoINt – Insert the silicone tube (provided) or other suitable plastic tube onto hose connection A; push the tube all the way on and lock with the plastic tie or other means; –...

  • Page 21: First Start-Up

    FIRST START-UP Once the sterilizer has been correctly installed, it may be turned on and prepared for use. turn on the equipment by the main switch located on the right side of the machine. tURNING oN NOTE thE EqUIPmENt o this with the sterilizer s door open INItIAL AUtomAtIC When turned on, the control panel lights up and beeps so you can visually check its correct...

  • Page 22: Stand-By Mode

    After the initial test, the sterilizer goes to STAND-BY mode and the display shows: StAND-by moDE C o u n t e r x x x x x / y y y y y S t a n d - b y H I G H 2 3 .

  • Page 23: Filling Distilled Water

    FILLING DIStILLED the first time the sterilizer is used, or when the MIN water level indicator comes on, you will have to fill, or top-off, the internal distilled water tank. WAtER Manual filling (top side) Operate as follows (with the machine on) referring to the figure: Remove the rubber cap.

  • Page 24: Automatic Filling

    Automatic filling If a unit is set up for automatic filling from an external tank, the filling will occur automatically after this automatic filling option has been selected. NOTE only high quality distilled water or the speCifiCations of the water supply a (t ppendix eChniCal...

  • Page 25: Configuration

    CONFIGURATION Bravo users can confi gure the device to meet their specifi c needs. For example, the device's performance may be adapted on the basis of the type of activity, the type of material to be INtRoDUCtIoN sterilized or its frequency of use. the SEtup program allows selecting from several options that users can activate through an easy-to-use menu.
  • Page 26 ⇑ to exit opening OPEN THE DOOR TO CONTINUE ONLY AVAILABLE FOR SERVICE SCICAN SERVICE Firmware release 4th PRESET Selected progra m (see menu ) Exxxx / JPyyyyyy 134 SOLID/UNWRAP STND, INTEL, EXTRA (lo ng dry ing) Serial Number...

  • Page 27: Description Of The Menu Items

    DESCRIPtIoN oF MAIN MENU the main menu has 6 entries that open additional (second-level) menus: thE mENU ItEmS BASIC (basic options) ADvANCED (advanced options) SPECIAL (special options) SERvICE (menu not accessible to users) DATA REvIEW (summary of options selected) ExIT SETUP (exit the SEtup program and return to normal operation.
  • Page 28 It has the following screens (shown by way of example): B R A V O 1 7 V D A T E R . E x x x x / J P y y y y y y d d / m m / y y y y 0 0 0 1 T I M E E N G L I S H...

  • Page 29: Defaults Settings

    DEFAULtS SEttINGS the sterilizer leaves the factory with the following settings: DATE: current date TIME: current time PROGRAMS: 1° PRESET: 134°C PoRoUS/WRAPPED 2nd PRESET: 121°C hoLLoW/UNWRAP 3rd PRESET: 134°C SoLID/WRAPPED 4th PRESET: 134°C SoLID/UNWRAP NOTE he programs indiCated should be Considered as preferential settings owever other Combinations are possible based on the destination market ST-BY MODE:...

  • Page 30: Setting The Time

    to set the date, follow these steps: – When the day flashes: set the current date with the + and - keys. Confirm with ↵. – When the month flashes: set the current month with the + and - keys. Confirm with ↵. –...

  • Page 31: Setting The Sterilization Programs

    NOTE disable o Change the password first seleCt the option whiCh CanCels the pre any power-on any CyCle start vious password and then seleCt the option entering the new password as desCribed above Setting the sterilization Setting and storing customized sterilization programs in the four pre-set positions can be programs completed by following these steps, starting in the advanced menu.
  • Page 32 a) programs with short drying (hOLLOW/uNWRAp., SOLID/uNWRAp., EMERGENCy): S T A N D A R D D R Y I N G → F A S T D R Y I N G ↑ E X I T ↓ It is possible to select STANDARD mode (the default setting) or FAST (reduced drying, recommended for light loads).
  • Page 33 to define the CuStOM program. follow these steps: 1. From the pROGRAMS menu, select the number to which the program is to be associated (see the previous description) and then select CuStOM in the next screen. the following menu will appear: →...
  • Page 34 Depending on the selection (SHORT or LONG) one of two different menus will open (these menus are the same for the standard cycles), i.e.: In SHORT mode the following is displayed: S T A N D A R D D R Y I N G →...

  • Page 35: Setting The Stand-By Mode

    Setting the STAND-BY mode Based on the equipment's frequency of use, or other considerations, users may want to select a (StAND-By OptIONS on the high or low heating level during the StAND-By (preheating) phase. they may also want to select ADVANCED menu) a StAND-By time-out mode that determines when the StAND-By is deactivated.

  • Page 36: Setting The Printing Mode

    Setting the printing mode the sterilizer can be equipped with an optional printer for recording sterilization program data; it (pRINt OptIONS on the is necessary to set the parameters required for its proper operation. ADVANCED menu) 1. Select PRINT OPTIONS using the ↵ key and the following menu appears: P R I N T E R →...
  • Page 37 Item REPORT the following screen appears: P R I N T O U T M O D E → N R . C O P I E S ↑ P R I N T L A S T ↓ E X I T Select item PRINTOUT MODE to chose the mode the data are printed: the following options appear: C Y C L E...

  • Page 38: Setting The Tank Filling Mode

    NOTE manual stop) f the last CyCle Completed CorreCtly or was interrupted by normal extended will be possible to reprint it in either mode (manual stop f the last CyCle was interrupted by an alarm exCluded it only extended mode will be available Following the reprint command, this message will be displayed: N O W P R I N T I N G...

  • Page 39: Acquisition Of The Ambient Pressure

    Selecting INtERNAL DRAIN enables the reading of the MAX level sensor in the internal tank. this is the setting that should be selected if connected directly to the drain. Selecting EXtERNAL DRAIN enables the MAX level sensor located in the external tank and in the internal tank.

  • Page 40: Adjusting The Contrast Of The Liquid Crystal Display

    Adjusting the contrast of the LCD contrast function adjusts the screens’ readability to compensate for the sterilizer the liquid crystal display location’s lighting. (LCD CONtRASt on the SpECIAL menu) When LCD CONtRASt is activated, this screen appears: A D J U S T M E N T T H E L C D C O N T R A S T...

  • Page 41: Preparing The Material

    SciCan recommends the final user carefully choose the most appropriate sterilization cycle according to the recommendations of their leading infection control authorities and local regulatory guidelines / recommendations.

  • Page 42: Arranging The Load

    For handles (turbines, contra-angles, etc.), supplement the above with treatment in suitable dedicated devices that provide effective internal cleaning (occasionally including lubrication). NOTE he end of the sterilization program remember to lubriCate the internal handle meChanisms using the speCial sterile oil y taking these preCautions the instru ments useful life will not be reduCed in any way...

  • Page 43: Sterilization Monitoring

    Chemical process monitors suitable for steam sterilizers at the indicated cycle temperatures StERILIzAtIoN and times should be included in or on each package or load being sterilized. In addition, SciCan moNItoRING recommends the use of biological monitors such as the EztESt-StEAM indicator or the 3M Attest system for routine monitoring of the sterilizer.

  • Page 44: Program

    PROGRAM program selection is key to a successful sterilization process. SELECTION Since objects for sterilization can vary in shape, consistency and properties, it is important to identify the most suitable program for it. this will not only preserve its physical characteristics (avoiding or, at any rate, limiting alterations) it will ensure the most effective sterilization.
  • Page 45 NOTE f no sterIlIzatIon program Is selected the equIpment cannot start a sterIlIzatIon cycle and the followIng message appears on the dIsplay wIth a beep S E L E C T P R O G R A M P L E A S E . . . WARNING IF YOU USE A PROGRAM THAT IS INAPPROPRIATE FOR THE TYPE OF MATERIAL TO BE STERILIZED (SEE APPENDIX b) THE EFFECTIvENESS...

  • Page 46: Running The Cycle

    RUNNING THE A sterilization cycle consists of a determined number of phases. the number and duration of the phases can differ for the programs, based on the type of air extraction, sterilization process and CYCLE drying method. the electronic control system monitors the various phases, while checking that the various INtRoDUCtIoN parameters are respected.

  • Page 47: Program Execution

    ↵ press the key to continue, however, the data recorded on the uSB key will be lost. then download the files onto the pC and cancel the content of the memory (this operation can also be carried out by DataFlash). Reinsert the uSB key in its port.
  • Page 48 First vacuum phase When the optimum temperature is reached, the first vacuum phase (1st vACUUM PULSE) is begins and the unit brings the chamber pressure down to the target value. the display shows: 1 3 4 ° C P O R O U S / W R A P P E D V A C U U M P U L S E 8 4 .
  • Page 49 Third rise in pressure After the last vacuum phase, the pressure in the sterilization chamber must rise to the value set for the sterilization process (3rd PRESSURE PULSE), always through the injection of steam. 1 3 4 ° C P O R O U S / W R A P P E D P R E S S U R E P U L S E 1 2 8 .
  • Page 50 Drying After the steam under pressure is released, the vacuum pump turns on to begin the drying phase (DRyING). this creates a low pressure in the sterilization chamber to facilitate the evaporation and consequent elimination of the steam. Depending on the type of drying selected, one of the following screens will appear: 1 3 4 °...

  • Page 51: Result Of The Cycle

    NOTE t the end of the CyCle and up to the opening of the door the heating elements are off to allow Cooling of the load nly after the load has been removed will the unit return to any stand by preheating options you have seleCted NOTE hen the sterilizer...

  • Page 52: Check Of The Cycle Data Report

    ChECk oF thE CyCLE It is a good practice to check that the print report issued at the end of the sterilization program, also specifi es a positive outcome. DAtA REPoRt At the end of the cycle, the relevant data for the thermodynamic parameters of the sterilization, i.e., temperature and pressure (°C and bar), and time (in minutes) of the sterilization cycle, along with particular attention to the sterilization phase, will print automatically when the door is opened.
  • Page 53 Finally, when the door is opened, you will be asked to reset the device by the following message: M A N U A L S T O P R E S E T S Y S T E M 8 5 . 5 °...

  • Page 54: Storing Sterilized Materials

    STORING the sterilized material must be adequately treated and stored to maintain its sterility over time, until its use. STERILIZED MATERIALS Inadequate storage can cause rapid recontamination. INtRoDUCtIoN this leads to problems regardless of what you do since you will either be using recontaminated material (most of the time unconsciously), placing the user and patient at risk, or you will have to run the sterilization cycle again, with an inevitable waste of time and resources.

  • Page 55: Test Programs

    TEST PROGRAMS to protect the safety of users and patients, a fundamental process like sterilizing medical devices should be periodically checked. INtRoDUCtIoN In this regard, Bravo offers the possibility of, simply and automatically, executing two distinct test programs: • helix/BD test • Vacuum test the HELIx/BD Test program executes a cycle at 134 °C for a duration of 3.5 min.

  • Page 56: Vacuum Test

    the cycle phases are analogous to what is described in the Chapter, “Running a Sterilization Program”. At the end of the program, remove the test device, open the capsule and remove the indicator from its housing. If the steam has correctly penetrated, the ink will have completely changed color from what it was before, along the entire length of the strip;...
  • Page 57 NOTE o rapidly lower the temperature of the Chamber and thus perform the aCuum switCh off the sterilizer with the door open until the CorreCt temperature is reaChed Close the door and start the program with the START key. NOTE any CyCle start f a password has been set with the option...
  • Page 58 When the program finishes, the display will read: V A C U U M T E S T T E S T P A S S E D - 0 . 0 1 b a r 1 7 : 4 4 NOTE f the pressure Change exCeeds the pre set limit...

  • Page 59: Appendix A – Technical Characteristics

    APPENDIx A TECHNICAL CHARACTERISTICS – SUmmARy tAbLE Device Steam Sterilizer Classification (according to the Directive II b 93/42/EEC and subsequent changes) BRAVO 17 BRAVO 17V BRAVO 21V Model SciCan Ltd. phone: (416) 445-1600 1440 Don Mills Road Manufacturer Fax: (416) 445-2727...

  • Page 60: Safety Devices

    SAFEty DEvICES the sterilizer is equipped with the following safety devices: – Mains fuses (see summary table data). protects inside the device against a fault in the heating elements. Action: cuts the electricity. – Fuses protecting the electronic circuits (see summary table data). protects against a fault in the primary transformer circuit and low voltage uses.

  • Page 61: Water Supply Characteristics

    WAtER SUPPLy ChARACtERIStICS vALUES IN DESCRIPTION WATER SUPPLY vALUES CONDENSATE DRY RESIDUE < 10 mg/l < 1 mg/l SILICON OxIDE SiO < 1 mg/l < 0.1 mg/l IRON < 0.2 mg/l < 0.1 mg/l CADMIUM < 0.005 mg/l < 0.005 mg/l LEAD <...

  • Page 62: Appendix B – Programs

    APPENDIx B – PROGRAMS INTRODUCTION the steam sterilizer is appropriate for almost all materials and instruments, so long as they are able to tolerate, without damage, a minimum temperature of 121 °C. the following material can normally be sterilized with steam: –...

  • Page 63: Program Summary Table

    PRoGRAm SUmmARy tAbLE BASIC PROGRAM NOMINAL vALUES STERILIZABLE MATERIAL PARAMETERS PROGRAM NOTES DESCRIPTION TYPE 220v porous, 1.00 1,25 0.30 0,40 0,30 unpackaged material porous material in 0.75 1,00 0.25 0,30 0,25 single package porous material in 134 POROUS/ 0.60 0,75 0.20 0,25 0,20 134 2,10 double package WRAPPED...
  • Page 64 GENERAL NOTES raCtionated vaCuum stage Completed with a sequenCe of vaCuum pulses pressure pulses “f ” raCtionated vaCuum programs are dediCated to the sterilization of porous materials or handpieCes ingle vaCuum stage Completed by vaCuum pressure pulse “s ” ingle vaCuum programs are dediCated to the sterilization of solid materials rying stage for porous material and or handpieCes and...
  • Page 65 Pressure (bar) PROGRAM 134 °C POROUS/WRAPPED PROCESS 134°C FOR 4 MINUTES 2.10 2.00 134 °C 18 MIN. EXT. 134°C FOR 18 MINUTES 1.00 Time (min) 0.00 -0.80 PRE-VACUUM LONG DRYING Pressure (bar) PROGRAM 121°C POROUS/WRAPPED 121°C FOR 20 MINUTES PROCESS 1.10 1.00 Time (min)
  • Page 66 Pressure (bar) PROGRAM 134 HOLLOW/UNWRAP. 134°C FOR 4 MINUTES PROCESS 2.10 2.00 1.00 Time (min) 0.00 -0.80 -1.00 FRACTIONATED PRE-VACUUM SHORT DRYING Pressure (bar) PROGRAM 121 HOLLOW/UNWRAP. 121°C FOR 20 MINUTES PROCESS 1.10 1.00 Time (min) 0.00 SHORT DRYING -1.00 PRE-VACUUM...
  • Page 67 Pressure (bar) PROGRAM 134 SOLID/WRAPPED PROCESS 134°C FOR 4 MINUTES 2.10 2.00 1.00 Time (min) 0.00 -1.00 ONE SHOT PRE-VACUUM LONG DRYING Pressure (bar) PROGRAM 121 SOLID/WRAPPED 121°C FOR 20 MINUTES PROCESS 1.10 1.00 Time (min) 0.00 -1.00 ONE SHOT PRE-VACUUM LONG DRYING...
  • Page 68 PROGRAM Pressure (bar) 134 SOLID/UNWRAP. 134°C FOR 4 MINUTES PROCESS 2.10 2.00 1.00 Time (min) 0.00 -1.00 ONE SHOT PRE-VACUUM SHORT DRYING PROGRAM Pressure (bar) 121 SOLID/UNWRAP. 121°C FOR 20 MINUTES PROCESS 1.10 1.00 Time (min) 0.00 -1.00 ONE SHOT PRE-VACUUM SHORT DRYING...
  • Page 69 Pressure (bar) PROGRAM 134 EMERGENCY 134°C FOR 3 MINUTES PROCESS 2.10 2.00 1.00 Time (min) 0.00 -1.00 ONE SHOT PRE-VACUUM DRYING PROGRAM Pressure (bar) XXX CUSTOM 134°C FOR 4 to 30 MINUTES 121°C FOR 20 to 30 MINUTES 2.10 2.00 SETUP ONE SHOT PRE-VACUUM FRACIONATED PRE-VACUUM...

  • Page 70: Diagrams Of The Test Programmes

    DIAGRAmS oF thE tESt PRoGRAmmES Pressure (bar) PROGRAM HELIX / BOWIE & DICK TEST 134°C FOR 3 MINUTES PROCESS 2.10 2.00 1.00 Time (min) 0.00 0.00 SHORT DRYING - 1.00 FRACTIONATED PRE-VACUUM PROGRAM Pressure (bar) VACUUM TEST (VT) -0.80 bar 1.00 Intermediate condition for End condition for...

  • Page 71: Examples Of Printed Reports

    ExAMPLES OF PRINTED REPORTS Cycle Report (normal) Cycle Report (extended) Report following a at the operator’s request Manual Stop Model BRAVO 17V Model BRAVO 17V Model BRAVO 17V 12 jp 0001 12 jp 0001 12 jp 0001 Ver. SW Exxxx/jpyyyyyy Ver.
  • Page 72 Report following an alarm Cycle Report Cycle Report HELIx/BD TEST vACUUM TEST Model BRAVO 17V Model BRAVO 17V Model BRAVO 17V 12 jp 0001 12 jp 0001 12 jp 0001 Ver. SW Exxxx/jpyyyyyy Ver. SW Exxxx/jpyyyyyy Ver. SW Exxxx/jpyyyyyy Counter 0011/0019 Counter 0007~001...

  • Page 73: Introduction

    APPENDIx C MAINTENANCE – In addition to correct use, the user needs to perform ordinary maintenance in order to guarantee safe, efficient operation over the device’s entire life. For better quality maintenance, supplement ordinary checks with regular periodic examinations INTRODUCTION by a qualified technical service department (see Appendix G).
  • Page 74 NOTE the user is given warning messages with the following frequency: MESSAGES FREqUENCY ChAMBER FILtER CLEANING Every 200 cycles BACtERIOLOGICAL FILtER REpLACEMENt Every 400 cycles ChAMBER GASkEt REpLACEMENt Every 1.000 cycles GENERAL REVISION Every 3.000 cycles Whenever significant reductions in performance, repeat alarms or a visible dete- rioration of parts subject to wear is noted, it is recommended that maintenance operations be carried out in advance of the deadlines programmed in the system.

  • Page 75: Maintenance Description

    NOTE he formation of white spots on the base of the internal walls of the sterilization Chamber means that you are using low quality demineralized water DANGER BEFORE PERFORMING ORDINARY MAINTENANCE, MAKE SURE THAT THE POWER SUPPLY CORD IS REMOvED FROM THE MAINS SOCKET. WHENEvER IT IS NOT POSSIBLE, PUT IN OFF THE ExTERNAL BREAKER OF THE EqUIPMENT POWER SUPPLY LINE.

  • Page 76: Cleaning The Internal Tank

    Cleaning the internal tank For the occasional disinfection of the external surfaces, you can use either denatured alcohol or detergents with a small percentage of sodium hypochlorite (or equivalent). Arrange an empty container on the floor near the sterilizer and insert the free end of the tube. Insert the other end of tube in the quick-coupling marked “Service”...

  • Page 77: Clean/Replace The Drain Filter

    Clean/replace the drain filter Over time various residues will accumulate inside the filter, obstructing the lower drain tube. to clean (or replace) the filter, open the sterilizer door and remove the cap (1) with a coin. Loosen the fitting (2) and the filter (3). Remove the filter from the support and put it under running water to thoroughly clean.

  • Page 78: Periodic Sterilizer Maintenance (Every 3000 Cycles)

    PERIoDIC StERILIzER to ensure proper performance of the unit, complete maintenance should be performed by a authorized dealer. mAINtENANCE (EvERy 3000 CyCLES) Ensuring the sterilizer is routinely maintained and properly calibrated over time is the responsibility of the user. the complete maintenance recommendation requires the use of special equipment. It is therefore necessary to contact technical Service to perform this maintenance.

  • Page 79: Appendix D – Troubleshooting

    APPENDIx D TROUBLESHOOTING – INtRoDUCtIoN ANALySIS AND RESoLUtIoN oF PRobLEmS If your sterilizer is not working correctly, please make the following checks before calling the technical Support Department: PROBLEM POSSIBLE CAUSE PROPOSED SOLUTION the power cord is not plugged-in. plug it in. Check the cause of the lack of voltage at there is no voltage at the socket.
  • Page 80 PROBLEM POSSIBLE CAUSE PROPOSED SOLUTION Wait several minutes, until the pressure returns to 0.00 bar, and try to open the door again. there is residual pressure remaining in the sterilization chamber at the end of the Check if the bacteriological filter is clogged and, if cycle.
  • Page 81 PROBLEM POSSIBLE CAUSE PROPOSED SOLUTION Check the quality of the instruments with the problem, checking whether the quality of the instruments is not material they are made of can tolerate adequate. steam sterilization. Empty the tank and fill it with high- quality distilled water.

  • Page 82: Appendix E – Alarms

    APPENDIx E ALARMS – INtRoDUCtIoN Alarm codes are divided into three categories: · E = ERROR Operator error or a cause external to the device. A problem that can generally be fixed by the user. Code format: Exxx (xxx = identifying number from 000 ÷ 999) ·...

  • Page 83: Alarm Outside The Cycle

    At the end of what has been described and having reached safe conditions, the machine activates a special procedure, that asks the user to manually unlock the door: ⇑ P R E S S U N L O C K T H E D O O R 1 0 1 .

  • Page 84: Resetting The System

    RESEttING thE perform a RESET (described below) and then turn-off the device and check the alarm. SyStEm NOTE larms that intervene outside of a program do not produCe a printed report the system is RESET in two alternative ways, depending on the alarm that occurred (see the Alarm Code List further below in this appendix): 1.

  • Page 85: Alarm Codes

    ALARm CoDES the list of alarm codes and, consequently, the messages displayed on the LCD and relative RESEt mode, is as follows: CODE ALARM DESCRIPTION LCD INDICATION RESET MODE ERRORS (category E) E 000 Blackout BLACk-Out E 010 Door open DOOR OpEN Exceeded timeout for activating door lock E 020...
  • Page 86 CODE ALARM DESCRIPTION LCD INDICATION RESET MODE pre-heating not performed within the timeout A200 hEAtING pROBLEM (heating resistor problem) A 250 1st vacuum pulse not reached within timeout pV1 tIMEOut 1st rise to atmospheric pressure not reached A 251 AtM1 tIMEOut within timeout A 252 1st pressure pulse not reached within timeout...

  • Page 87: Analysis And Resolution Of Problems

    ANALySIS AND RESoLUtIoN oF PRobLEmS Based on the type of alarm, below we provide instructions for identifying the possible causes and restoring correct operation: CODE POSSIBLE CAUSE PROPOSED SOLUTION ERRORS (category E) Wait for electricity to return and perform RESET following Sudden power failure (blackout).
  • Page 88 CODE POSSIBLE CAUSE PROPOSED SOLUTION perform RESET following the instructions. Excessive humidity in the sterilization chamber. Carefully dry the inside of the sterilization chamber and start the program again. perform RESET following the instructions. Carefully clean the gasket with a clean cotton cloth E 901 Air leaking through the gasket dampened with water.
  • Page 89 CODE POSSIBLE CAUSE PROPOSED SOLUTION Chamber temperature sensor (pt1) A 101 broken. Steam generator temperature sensor A 102 (pt2) broken. heating element temperature sensor A 103 (pt3) broken. Chamber wall temperature sensor (pt4) A 104 broken. Incorrect connection of the temperature sensor (sterilization chamber) to the connector.
  • Page 90 CODE POSSIBLE CAUSE PROPOSED SOLUTION Water injection pump malfunction. Contact the Technical Support Department (see Appendix G). problem in the plumbing circuit. Intervention of the steam generator A 251 safety thermostat. See A200 heating element safety thermostat intervened. If the problem persists contact the Technical Support Department (see Appendix G).
  • Page 91 CODE POSSIBLE CAUSE PROPOSED SOLUTION perform RESET following the instructions. Steam leaking through the gasket. Carefully clean the gasket with a clean cotton cloth dampened with water. Start the program again. If the gasket still leaks, replace the gasket. perform RESET following the instructions. Check the quantity of material in the sterilization chamber and make sure Excessive load.
  • Page 92 CODE POSSIBLE CAUSE PROPOSED SOLUTION Intervention of the steam generator safety thermostat. See A200 heating element safety thermostat A 258 If the problem persists contact the Technical Support Department (see intervened. Appendix G). heating or steam generator heating element malfunction. perform RESET following the instructions.

  • Page 93: Appendix F – Notes For The Operator

    APPENDIx F – NOTES FOR THE OPERATOR...

  • Page 94: Appendix G – Technical Support

    OF THE DEALER OR RESELLER THAT SUPPLIED THE PRODUCT. SciCan is completely available to customers to provide any technical information about the product as well as to offer suggestions and advice on steam sterilization procedures. In this regard, please refer to the following address: SciCan Ltd.

  • Page 95: Appendix H – Limited Warranty

    In the event of failure due to such defects during this period of time, the exclusive remedies shall be repaired or replaced, at SciCan’s option and without charge, of any defective non-consumable part(s) (except gasket), provided SciCan is notified in writing within thirty (30) days of the date of such a failure and further provided that the defective part(s) are returned to SciCan, prepaid.
