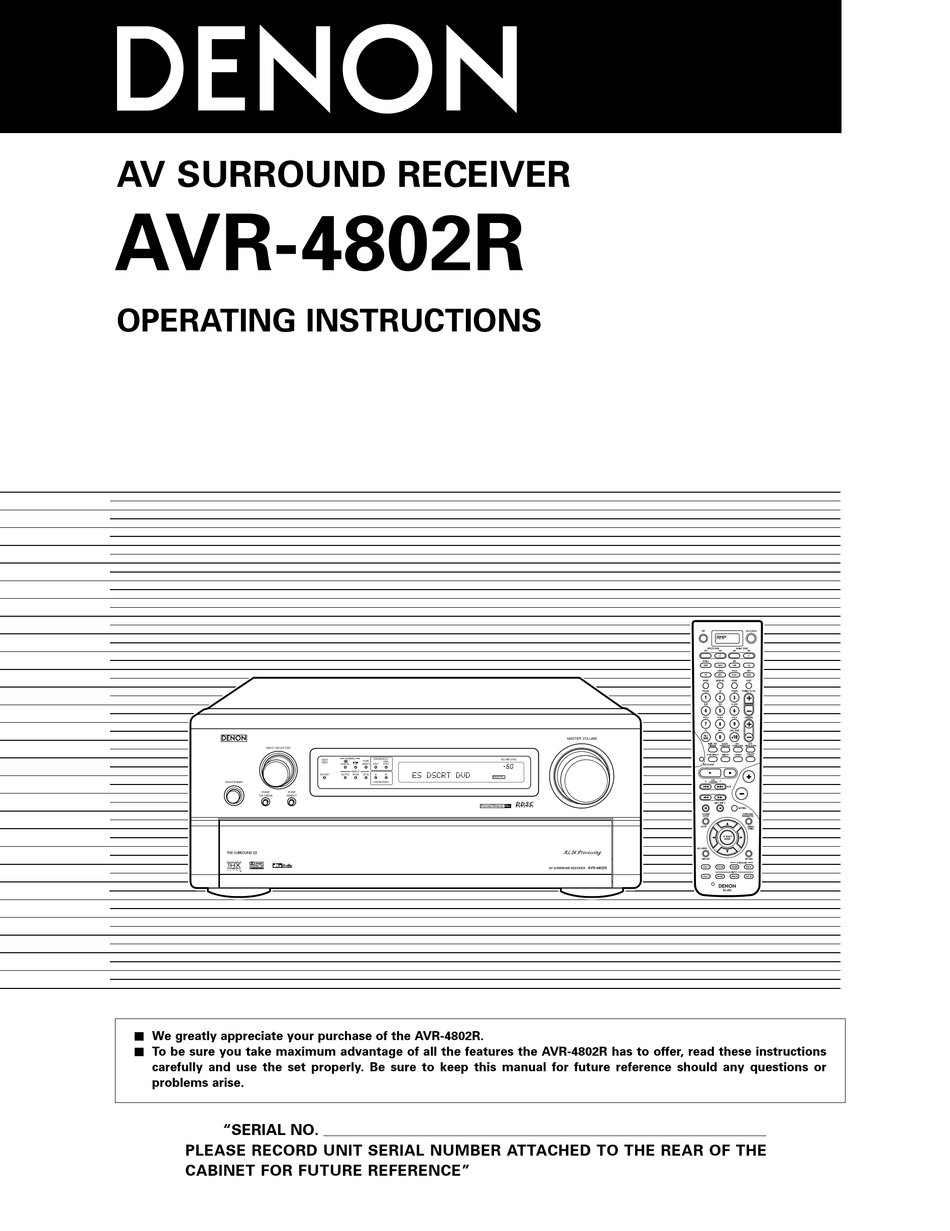

AV SURROUND RECEIVER
AVR-4802R

OPERATING INSTRUCTIONS

INPUT SELECTOR
ON/STANDBY
HOME
PURE
THX CINEMA
DIRECT
We greatly appreciate your purchase of the AVR-4802R.
2
To be sure you take maximum advantage of all the features the AVR-4802R has to offer, read these instructions
2
carefully and use the set properly. Be sure to keep this manual for future reference should any questions or
problems arise.
"SERIAL NO.
PLEASE RECORD UNIT SERIAL NUMBER ATTACHED TO THE REAR OF THE
CABINET FOR FUTURE REFERENCE"
SIGNAL
SURROUND BACK CH
REMOTE
PURE
SIGNAL
SENSOR
DIRECT
DIGITAL
OUTPUT
DETECT
INPUT
ES DSCRT DVD
ON/STANDBY
AUTO
PCM
DTS
A
B
DIGITAL
SURROUND SPEAKER
MASTER VOLUME
VOLUME LEVEL
AMP
