Joyner TROOPER-T4 Owner's Manual page 96

5.2. Disintegration

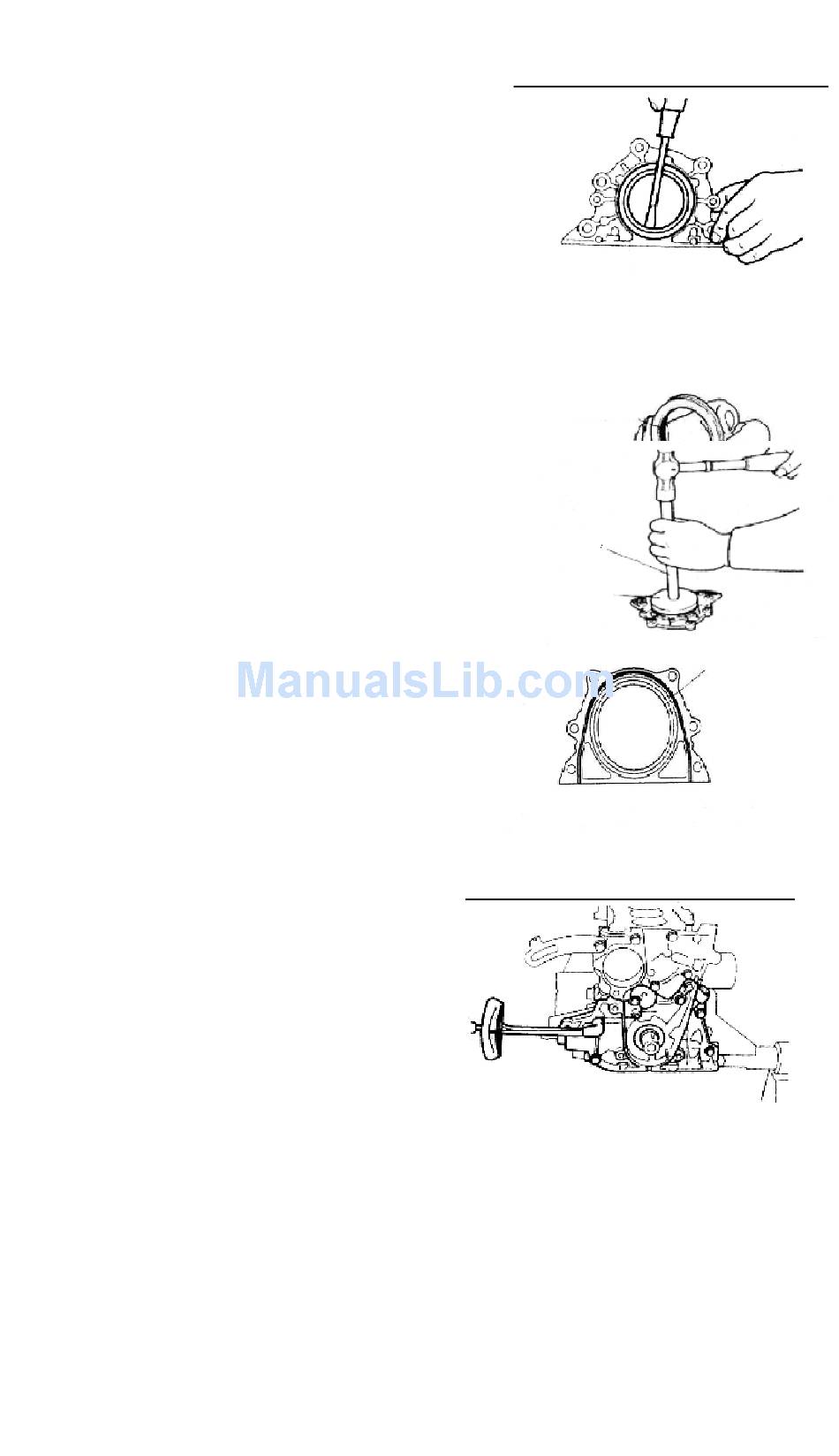

5.2.1. Use a flat screwdriver to remove the
rear oil seal.
Attention The oil seals are not reusable.
5.3. Checks
Check to see if the tears and wears of
the lip section of the oil seals are within
the normal conditions, and if there are
any damages in outer appearance.
5.4. Assembling
5.4.1. Smear lubricating oil on the new
oil seal lip section.
Install the oil seal shown as the
5.4.2.
right figure.
6. Assembling
6.1. Assembling of the oil sealing
stands
Smear oil sealing silica on the oil
sealing stands shown as the right
figure.
[Grease] Letai 5699
Attention The liquid sealing silica is to
be smeared to the mating section of
the oil seal stands and cylinder body
surface, with a width of
3-4mm/0.118-0.157inch.
[Torque] 25±1.5N*m/18±1Ft_Lb
6.2. Assembling of new oil pump
washer, oil pump assembly
[Torque] 20±1.5N*m/14.5±1Ft_Lb
Oil sealing lip
SST
SST
96
Seal line
