Technical Specifications
PI32 Control Unit

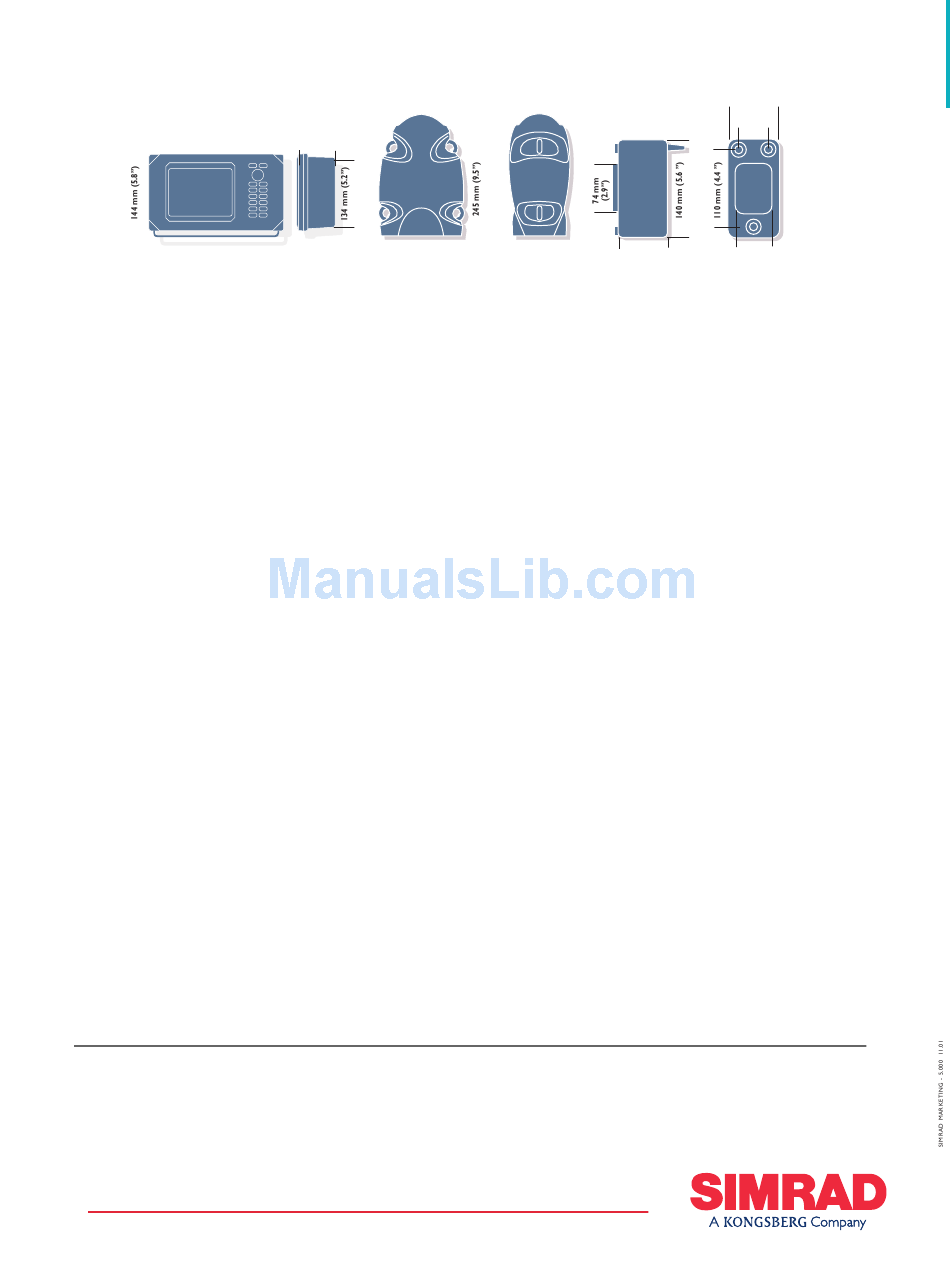

252 mm (10")
The PI32 System units:
• Electronic unit with color LCD Display
• Hull mounted or portable hydrophone
• Up to 3 Sensors
• Battery charger
Simrad PI32
Power supply: 10 – 32 V DC
Power drain: 15 – 18 Watts
Environment:
0 to +50ºC,Waterproof (USC 46 CFR and IP 55)
Dimensions:
144x252x70 mm/1,5 kg (5,8x10x2,8"/3 Lbs)
Display: 5,5-inch 320x240 pixels TFT, power backlight
Interfacing:
1 port in/out NMEA 0183, 1 port in NMEA0183
Sensor receiver and display section
Frequency band:
43,5 – 49,5 kHz, multi - channel DSP - receiver.
Channels: 3 / 30
Numeric display:
3 sections, easy to read digital sensor data display
Graphic display:
Historic plot and digits showing actual sensor
data and net behaviour
Surface sea water temperature display
Easy to read digital display with historic plot.
Status display:
Displaying sensor data, status and diagnostic tools
Alarms:
Both graphic and sound alarm for max or
min sensor data and surface temperature values.
Navigation section 2)
Position display: Ships position, speed, course and depth
Navigation display: Navigation highway with waypoints
and cross track error
3)
Echosounder section
Frequency: 50/200 kHz, user selectable
Output power: 500 W RMS
Depth range:
Up to 350 m at 200 kHz and 800 m at 50 kHz
Pulse length: 50 kHz: 1 ms, 200 kHz: 0,25 – or 1 ms
Alarms: Fish, max and min depth
Note: Specifications subject to change without notice.
A L W A Y S A T
PS30 Sensor
70 mm (2.8")
172 mm (6.7")
Zoom mode: Bottom and VRM expansion
Split screen: Depth and A – scope. Depth and
bottom expansion, depth and VRM expansion
Event marker: At current ping
Scroll speed: Adjustable or freeze
Signal threshold: User selectable on/off
Fish detection: White line discrimination
Surface sea water temp.:Transducer
Ships speed through water:Transducer
PS30 Sensor
Housing:
Shock absorbing and abrasive resistant Polyurethane
Corrosion resistance:
All metal parts made of high grade Titanium
to eliminate corrosion
Visibility:
Hyper yellow colored to maximise visibility
when submerged in sea water
Power: Rechargeable batteries, normal charge
Range:
~ 6 –700 meters, purse seine application
~ 1500 m, trawl application
Programming:
Field programmable functions and channel selection
1)
Operational depth: 600 m
:
Dimensions: 245x172x123 mm
Weight in air/water: ~ 4.2/1.4 kg
Depth sensor
Measuring range D300: 0 – 290 m
Measuring range D600: 0 – 580 m
Accuracy: ± 0.25% of full scale
Update rate: ~ 4.5 sec
Operational life between charging: ~ 30 hours
Temperature sensor
o
Range: - 5 C to + 30
o
Accuracy: ± 0.25
Operational life between charging: ~ 30 hours
Bottom contact sensor
Monitoring physical bottom contact
of the foot rope
Adjustable measuring range
T H E F O R E F R O N T
PI30 Hydrophone
123 mm (4.7") 72 mm (2.8")
1)
or NMEA
4)
or NMEA
o o o
C (23 F to 86 F)
o
C (± 0.45 F)
www.simrad.com
O F T E C H N O L O G Y
75 mm (3 ")
45 mm
(1.8 ")
50 mm (2")
Update rate, field programmable:
Fast, Normal or Slow
Operational life between charging:
5)
~ 60 hours
Catch sensor / Rip sensor
Monitoring catch in the cod end
or rip in the net
Adjustable sensitivity
Update rate, field programmable:
Fast, Normal or Slow
Operational life between charging:
6)
~ 2 – 3 weeks
Hull mounted Hydrophone
Beam width, purse seine application:
90º horizontal, 30 º vertical
Beam width, trawl and Danish seine
application:
50º horizontal, 30 º vertical
Hydrophone cable: 25 m, diameter 6 mm
terminated with 7 pins female connector
Portable hydrophone
Omni directional (purse application)
or directional (trawl)
Hydrophone cable:
Strain resistant, 60 m length on cable reel
Battery charger
Input voltage: 220 or 110 V AC, 24 VDC
Charging: Constant current, 60 mA
Options
Remote display: DE30
Echosounder transducer
Stuffing tube, plastic
Stuffing tube, bronze
1) Requires an optional echosounder transducer
with temperature sensor
2) Requires an external GPS navigator
3) Requires an optional echosounder transducer
4) Requires an optional triducer
(depth, temperature and speed)
5) Update rate: Normal
6) Update rate: Slow
