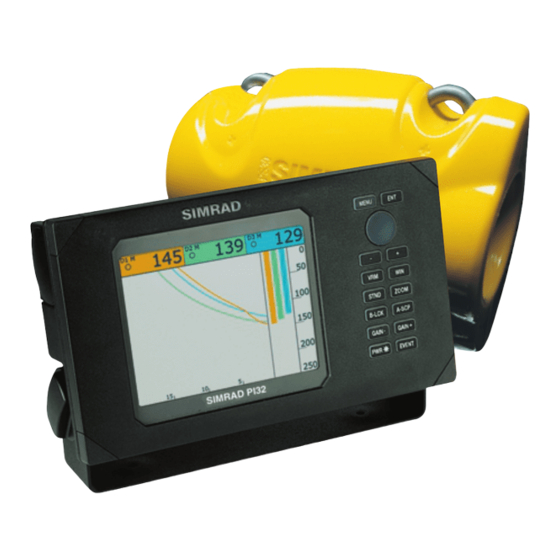

Simrad PI32 - QUICK REFERENCE GUIDE REV A Quick Reference Manual

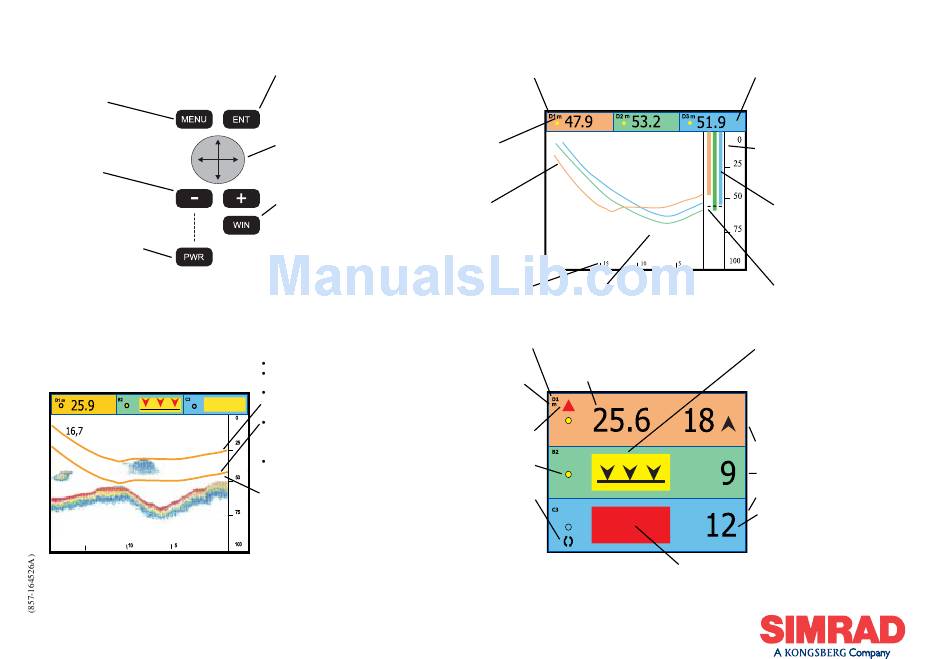

Keypad buttons
MENU - turns the menu on and
off. Press to hide the displayed
menu without making a selec-
tion.
Minus (-) Plus (+) - selects
available values, scales and
ranges.
PWR - turns on the unit, press
until the display is visible. Ad-
justs LCD brightness, contrast,
display colour and keypad il-
lumination. Press twice to turn
off the unit.
Refer to the PI30 Instruction manual for more information
concerning echo sounder and navigation keypad functions.
Graphic display, pelagic trawl
A complete view of the fishing operation with pelagic or semi-
pelagic trawling is provided by a depth sensor attached to the
headrope, a bottom sensor to the footrope and a catch sensor to
the cod end. The echogram shows the relative positions of the
trawl, fish and bottom using an optional echo sounder transducer.
Bottom sensor ñ shows no bottom contact graphically repre-
sented by the red, downward pointing arrows not being in con-
tact with the horizontal line. Upon bottom contact, the arrows
will touch the horizontal line and change colour from red to black.
Bottom sensor measurement range is adjusted as needed.
PI32 Quick reference guide
ENT - turns the cursor on and D1 to D3 - identifies which sensor
off, opens parameters for the in- corresponds to the data window
(background colour) and subse-
sertion and confirms data. Se-
quent bar and line graph informa-
lect setup directly from the cho-
tion.
sen display.
Multi-direction button - con-
m - indicates that sensor depth is
trols the cursorís location in
shown in meters or the sinkrate is in
activated menus and displays,
m/min.
moves the VRM.
WIN - changes between one of
Line graph - provides a depth and
the four selected windows.
sink-rate profile for the net. Line
Press when the desired win-
thickness is selected in the Graphic
dow is displayed to select.
setup.
Press and hold for more than
two seconds to actuate auto-
matic window rotation, press
again to return to normal op-
eration.
Time scale - is selected in Graphic
setup.
Graphic setup ñ choose the setup by D=depth, B=bottom, C=catch, adja-
pressing ENT in graphic display: cent numbers correspond to the data
Remove depth bar graph. window.
Show echogram if an optional echo
m - indicates that the depth is shown
sounder transducer is installed.
in meters.
Head/footrope sensor ñ choose the
depth sensor that is attached to the head/ Graphic alarm - the arrowsí direc-
footrope. tion indicates if the net depth should
be increased or decreased with re-
Trawl opening mode information:
gard to the selected alarm limits.
-Manual: a fixed user input value.
Graphic alarms may be accompa-
-Auto: actual value from sensors.
nied with audible alarms.
-ON/OFF: shows numerical value.
Manual trawl marker, ON only in the
Yellow pulse lamp - blinks each time
manual mode, otherwise OFF.
a signal is received from the respec-
tive sensor.
Alarm ñ choose the clearing pre-alarm,
min. or max. value from the Alarm & Interference signal - interference
from nearby vessel(s) operating on
calibration setup menu. If the footrope
marker comes closer or farther away the same channel or with similar
than the chosen minimum and maximum hydroacoustic equipment. Contact
values with regard to the bottom, the your Simrad dealer to select a differ-
alarm can be activated. Adjust the trawl ent frequency should this problem
until the point is passed. persist (see MP filter on side two).
Bottom / catch sensor alarm ñ change Surface temperature ñ when an echo sounder transducer with a temperature
of status for the bottom / catch sensor sensor is installed, the ambient surface temperature is shown with large numbers
can be indicated with an alarm. This is together with the temperature vs time in a separate display (not shown here).
selected from the Setup Alarm &
Input is achieved using Surface temperature setup and Sensor alarm & calibra-
calibration menu.
tion. If a temperature sensor is not available, *.* is displayed.
Graphic display, purse seine
Data window 1 Data window 2 Data window 3
An echogram may be superimposed on the Graphic dis-
play when an echo sounder transducer is installed.
Numeric display
Sensor depth - is rounded to the nearest meter
for depths over 100 m, otherwise it is displayed
to one decimal place. Maximum depth is 290 or
580 meters.
Catch sensor ñ represents the quantity of fish presently in the cod end. A
yellow rectangle indicates that the sensor has not been activated (no fish
caught). When the rectangle becomes red, accompanied by a peeping tone,
the sensor has been activated. Bottom and catch alarms are chosen from
Setup, sensor alarm and calibration.
Sensor information - illustrated here
with data from three depth sensors. Bot-
tom sensors can also be used for pursing
close to the bottom.
Depth scale - can be decreased or in-
creased using the respective - or + but-
tons on the keypad.
Bar graph - displays a ìside viewî of the
netís depth.
Alarm limits - both the upper and lower
limits are displayed.
Bottom sensor ñ black arrows indicate bot-
tom contact. Should the footrope lose physi-
cal contact with the bottom, the black arrows
will separate from the horizontal line and
change colour to red.
Rise/sink rate - is displayed in the se-
lected units per minute. Values near 0 in-
dicate that the net has stopped sinking.
Data window 1
Data window 2
Data window 3
Timer ñ displays how many minutes have
elapsed since the footrope lost contact with
the bottom or how long a catch sensor has
been activated. This timer is reset in the nu-
merical display setup.
