DISPLAY PRESENTATIONS

Numerical presentation

322482/B
The information provided by the PI Geometry sensor is shown
on the PI catch monitoring system's colour display. Two
presentations are available:
• Numerical presentation
• Graphical presentation with or without echogram
The numerical presentation of the PI Geometry data is
automatically shown in the relevant display modes. Since this is
a "dual" sensor two yellow rectangles are used to indicate which
two numerical displays that provide information from the same
sensor.

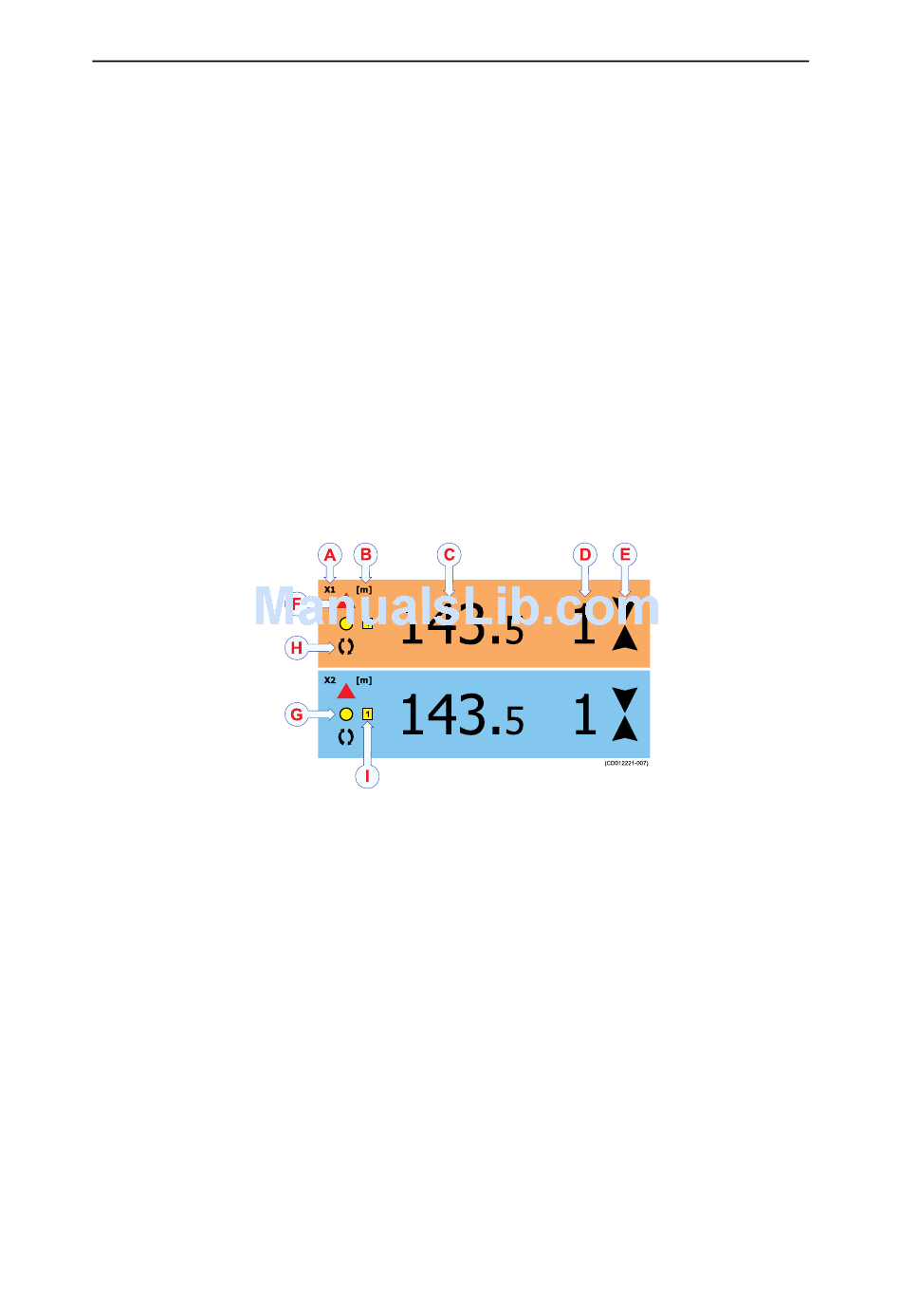

Figure 10 Numerical presentation, example
A Sensor identification
B Unit of measurement
C Distance
Distance changes per minute
D
Arrows pointing "out" means that the distance is increasing,
E
arrows pointing "in" means that distance is decreasing
Visual alarm
F
Sensor transmission indicator
G
H Interference warning
I Dual sensor identification
On the PI display, you must use two channels to receive the
information from the PI Geometry sensor. The two distance
measurements are then shown in the numeric display. If the
distance is increasing or decreasing, this is shown with the arrows
and the variation in meters per minute. You can also see the
distance changes as a function of time in a graphical presentation.
