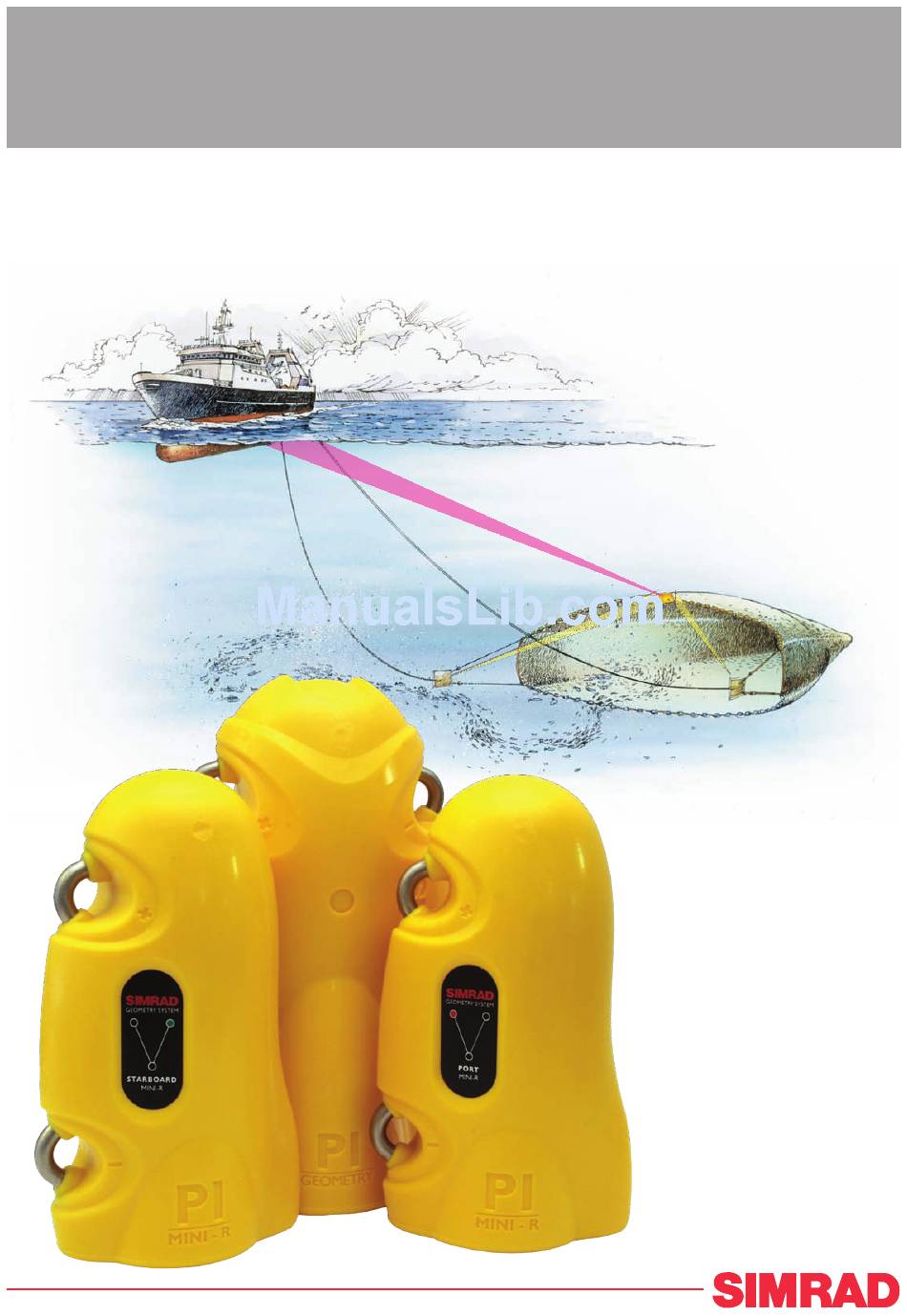

Simrad PI Geometry

Sensor system for trawl and danish seine

(CD012221-002)

T E C H N O L O G Y

Simrad's latest sensor system measures the geometry

of you gear. If your trawl or danish seine is skewed and

misadjusted, you will know right away!

F O R

S U S T A I N A B L E

www.simrad.com

F I S H E R I E S

Need help?

Do you have a question about the PI GEOMETRY - DATASHEET REV A and is the answer not in the manual?

Page 1 Simrad PI Geometry Sensor system for trawl and danish seine Simrad’s latest sensor system measures the geometry of you gear. If your trawl or danish seine is skewed and misadjusted, you will know right away! (CD012221-002) www.simrad.com T E C H N O L O G Y...
Page 2 From the main Geometry sensor mounted on the middle of either the headrope or the footrope, you measure the distance to the two “Mini-R” responders mounted on each door or wing ends. These measurements will immediately tell you if the trawl (or danish seine) is skewed due to water current or incorrect warp lengths.
Page 3 On the left trawl, distance “A” on the port side is longer than distance “B” on the starboard side. The trawl is unbalanced. On the right trawl, the distances are identical. Measuring the door spread (“C”) will not detect a distorted trawl geometry.
Page 4 The graphical presentation further presents the historic values from within the past 17,5 minutes. (CD012106-001) 326136 / Rev.A / September 2008 Simrad Kongsberg Maritime AS Telephone: +47 33 03 40 00 Strandpromenaden 50 Telefax: +47 33 04 29 87 P.O.Box 111...
