Simrad PI Geometry
14

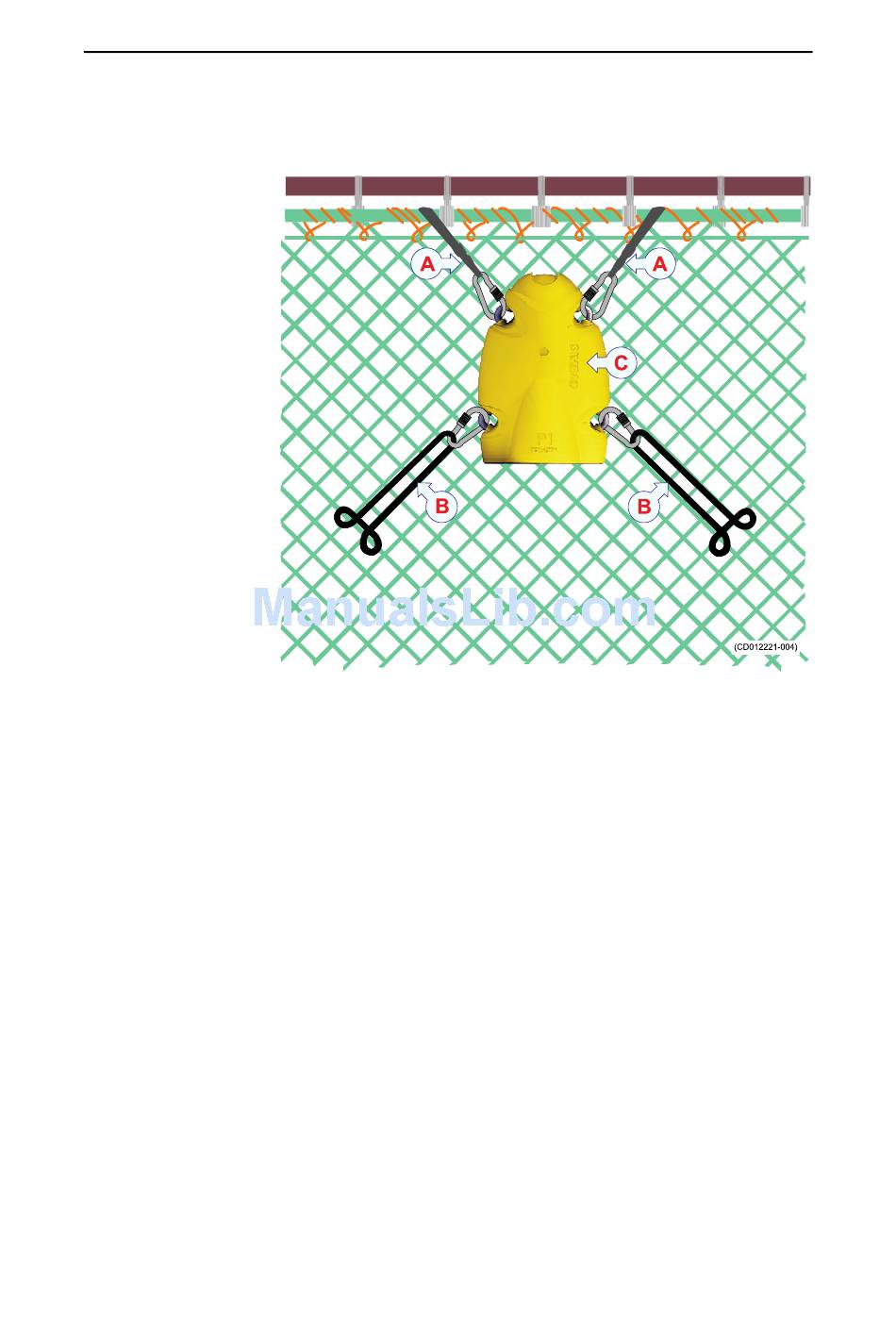

Figure 7 PI Geometry sensor installation
Forward fastening lugs with snap hooks and rope
A
B
Aft fastening lugs with snap hooks and rubber bands
C
PI Geometry sensor, top
Recommended procedure
Assemble a bag of fine-meshed net, and tie this bag to the
1
trawl at the middle of the headrope.
2
Place the sensor inside this bag.
Secure the two forward fastening lugs (A) on the sensor
3
using two snap hooks and rope.
4
Secure the two aft fastening lugs (B) on the sensor using
snap hooks and strong rubber bands.
This mounting places the sensor in a cradle supported on
all four sides.
5
Ensure that the sensor is properly mounted. Check that it is
not permitted to move sideways during the fishing operation,
as this may lead to a communication failure.
Make sure that you have best possible free view between the
6
PI Geometry sensor and the Mini-R responders on the trawl
doors, and between the sensor and the vessel.
322482/B
