Why use the PI Geometry sensor system

10
Information on the responder identification
label
The Simrad PI Mini-R responder label provides the following
information.

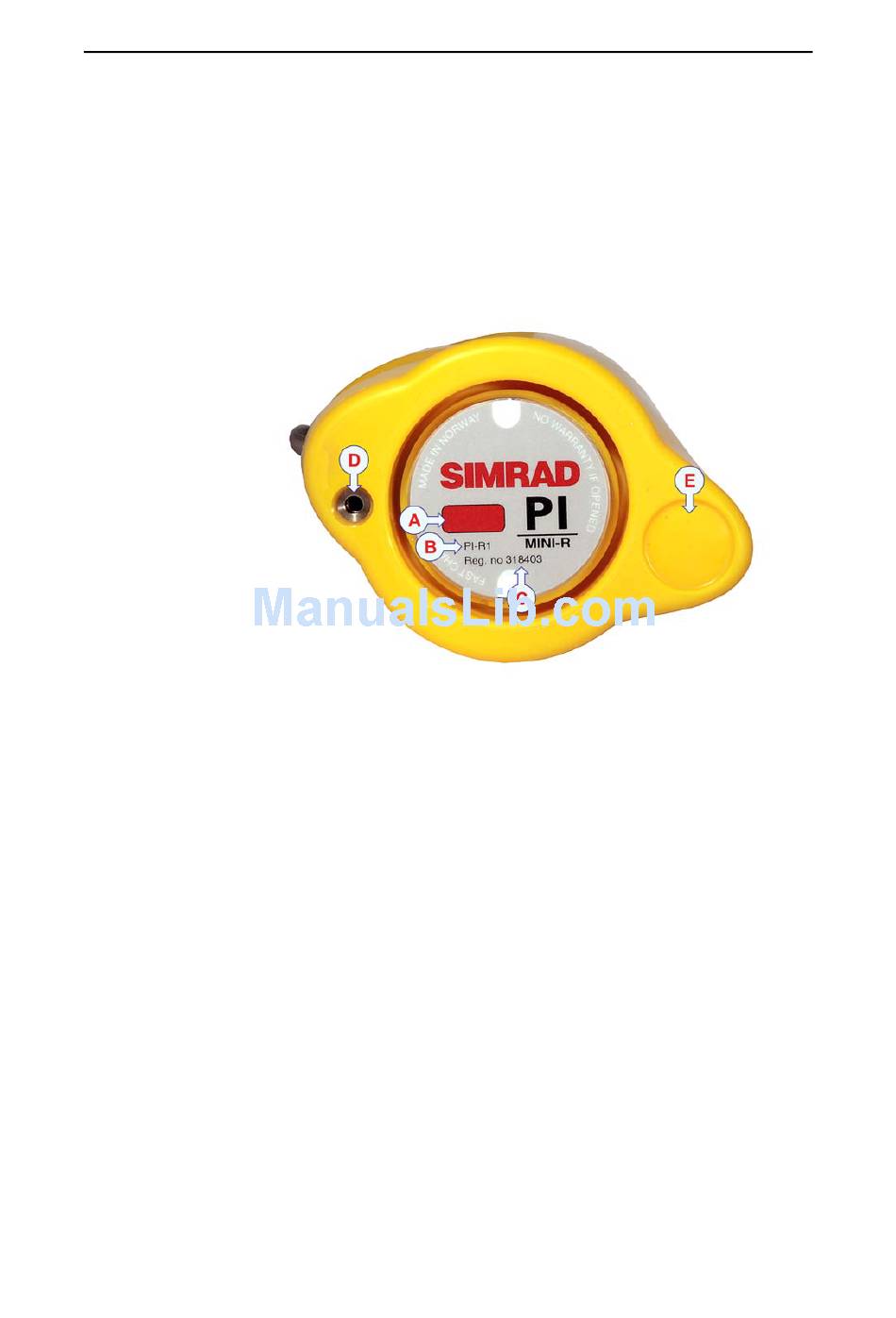

Figure 5 PI Mini-R responder, information on the sensor
identification label
Position identification. Red colour identifies the port
A
responder, while green colour identifies the starboard
responder.
B This information identifies the sensor type.
Order number.
C
Water switch. This is a sacrificial bolt. The bolt will
D
gradually be worn out. Check it from time to time to remove
corrosion, or replace it if necessary.
Transducer for communication with the PI Geometry sensor.
E
In order to maximize the performance and the catch efficiency,
the trawl and the warps must be adjusted properly. This is
essential to ensure a square trawl and minimum skew. This is
also important for danish seines, as the ropes must have identical
length.
Any disturbance to the trawl movements may have a negative
effect on the catch. This is particularly important on a bottom
trawl. A skewed bottom trawl will result in unstable bottom
contact, and create escape routes for fish below the gear and
through the side panels. On pelagic trawls and danish seines a
